P200 PRO is a field calibrator that measures and generate pressure from -1 to 700 bars with an accuracy of 0.025% FS. It is developed for the calibration, verification and testing of pressure sensors and transmitters, manometers, pressostats and flow transmitters.

Ask a question
Get a call

P200 PRO is a field calibrator that measures and generate pressure from -1 to 700 bars with an accuracy of 0.025% FS. It is developed for the calibration, verification and testing of pressure sensors and transmitters, manometers and pressostats. Besides, it measures and generates process voltage and current .

  • Pressure range: -1 to 700 bars
  • Leak test
  • Switch test
  • Calibration of transmitters and pressostats

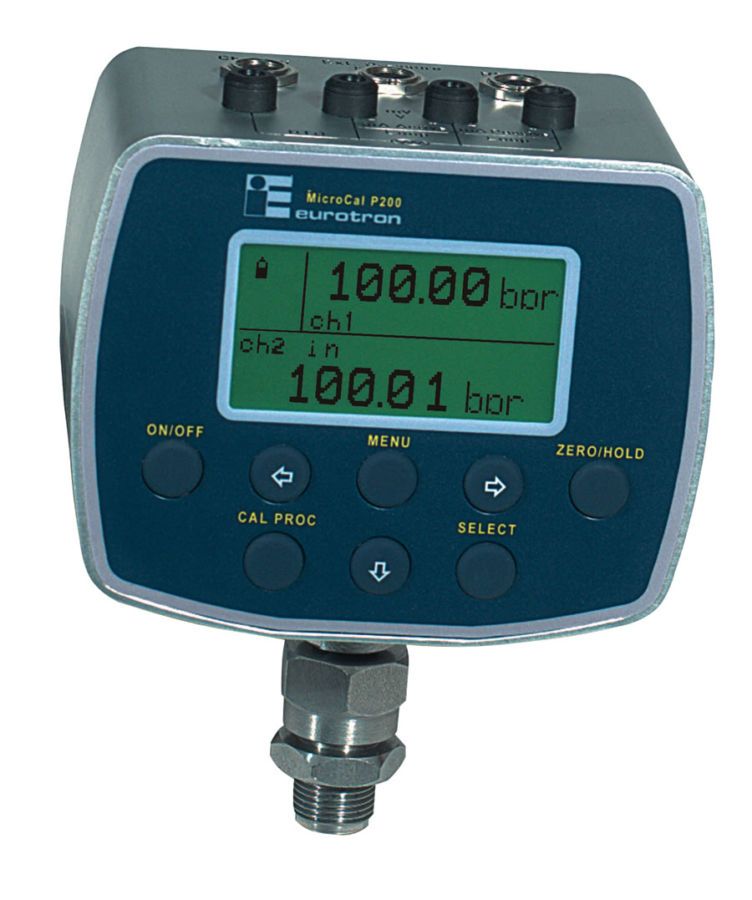

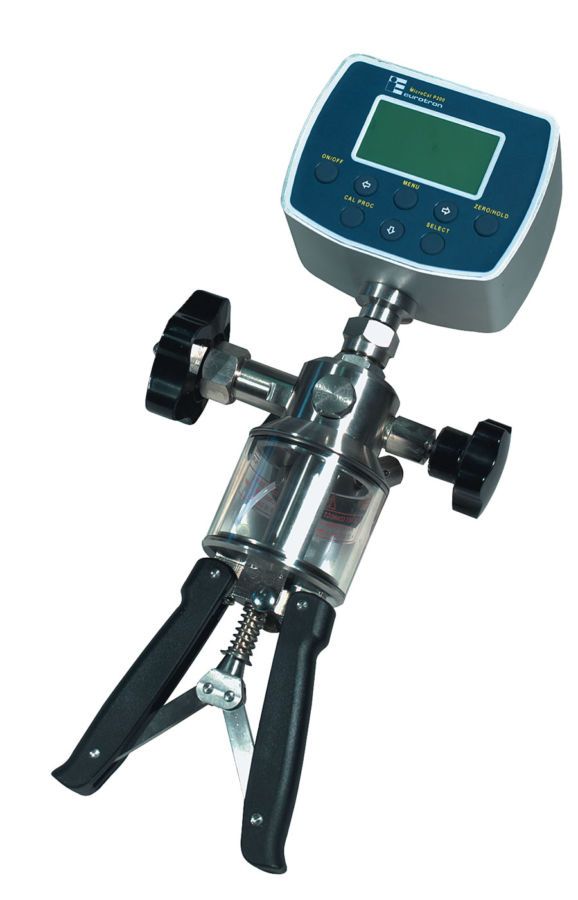

P200 PRO is a versatile, robust and handy instrument with its IP65 measurement head and removable pump. It is a comprehensive calibration system yet easy-to-use. It has an internal pressure sensor and accepts an external module in addition. It simultaneously displays the output pressure and input current or voltage, the pressure percentage, the pressostat status or the MIN / MAX pressure value. P200 PRO stores not only 1,500 measurement values but several calibration procedures, leak test or switch test procedures. The instrument is delivered in standard with a factory calibration report traceable to the national standards that states the nominal and actual values and deviation errors. The pressure calibrator is widely used and recommended for maintenance, regulation, metrology departments of process industries, energy field, applied or scientific research activities.

Specifications and performances @23°C ±5°C

Pressure

calys80-modulePressure media: AISI 316 SS compatible fluids (water, gas, and oil) Engineering units: mbar, bar, hPa, kPa, Mpa, kg/cm2, kg/m2, psi, mmH2O, cmH2O, mH2O, Torr, atm, lb/ft2, inH2O, FTH2O, mmHg, cmHg, mHg, inHg Accuracy: accuracies given for 1 year, include non linearity, hysteresis, and repeatability. Temperature coefficient inside the temperature compensated range: ±0.002% RDG /°C Temperature compensation: Automatic with built-in calibration matrix from 0°C to 45°C

  By interne moduel By external sensor
Accuracy ±0.025% FS ±0.025% FS
Overpressure 125% FS 125% FS
Port 3/8" BSP male 1/4" BSP male
Connexion cable Internal 2 m

Process voltage

Type Measurement / Emission Range Resolution Accuracy / 1 year
Voltage IN / OUT -200 to 200 mV 1 mV 0.02% RDG + 3 mV
-0.2 to 2 V 10 mV 0.02% RDG + 10 mV
-2 to 20 V 100 mV 0.02% RDG + 100 mV

Process current

Type Measurement / Emission Range Resolution Accuracy / 1 year
Current IN / OUT -5 to 22 mA 0.1 mA 0.02% RDG + 0.4 mA

Loop supply: 24 V ±10% (30 mA maximum)


Further features

Scaling in measurement mode Scaling allows process signals to be displayed in % of FS or in pressure, offering a direct comparison between the measured pressure value and the transmitter output value and allowing sensors to be corrected after a calibration.

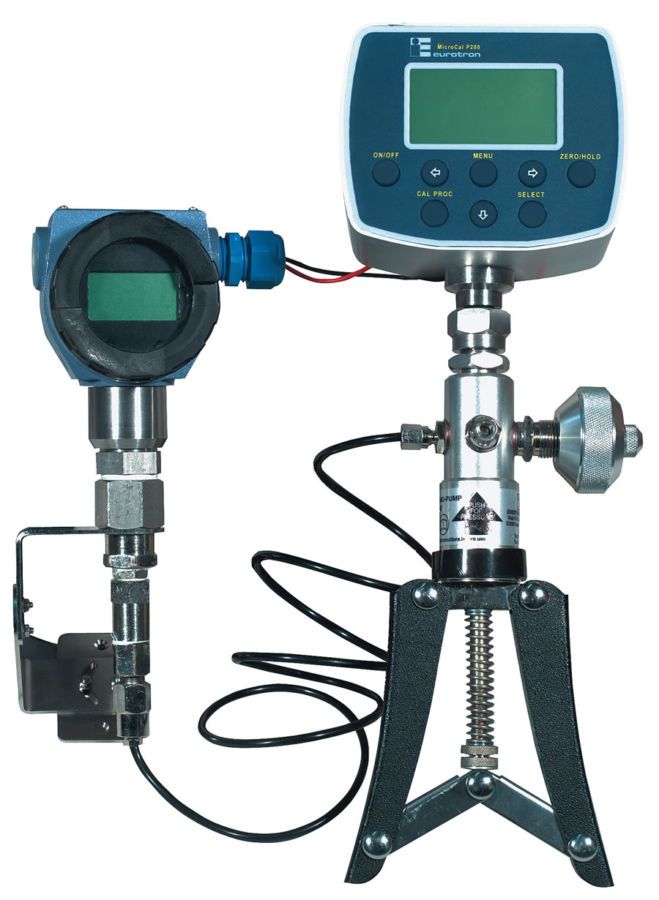

Transmitters tests The feature enables any pressure transmitter to be controlled and calibrated with simultaneous display of input and output values in % F.S. or in actual unit. The measuring circuit is also able to power the loop for a direct connection to the transmitter under test.
Switch test In pressure, P200 PRO controls and displays the applied pressure and the switch status OPEN or CLOSED of pressostats.
Leak test P200 PRO detects the presence of any pressure leakage through a test procedure carrying out pressure fall measurements in a programmable time interval.

General specifications

Size 130 x 120 x 70 mm
Weight Nett: 1.4 kg Gross: 2.5 kg
Display Liquid crystal graphical display with automatic and manual backlite
Measurement sampling time 250 ms
Battery Type: Rechargeable Ni-Mh with external charger Charging time: 5 h at 90% and 6 h at 99%, if instrument switched off Life time: 10 h in measurement mode without backlight
Communication ports RS 232, full bidirectional
Storage capacity 1,500 measured values with date and time stamp

Environmental specifications

Reference range 23°C ±5°C
Operating reference range -10 to 55°C (RH: 95 % non condensing)
Storage temperature limits -30°C to +60°C (without battery)
IP protection IP65 according to EN60529

Instrument:

Ordering code structure: P200 PRO basic – A – B – C – D – E or P200 PRO plus – A – B – C – D – E Please select the required options from tables A, B… below to define the right device reference. P200 PRO basic     Calibrateur portable de pression Delivered in standard with:

  • Internal pressure module to select from the list below
  • External sensor connector
  • Adapter kit: ½ NPT.F, ½BSP.F, 3/8NPT.F, 3/8BSP.F, 1/8NPT.F, 1/8BSP.F, 1/4BSP.F
  • Hoses
  • Battery charger
  • User manual

P200 PRO plus       Calibrateur portable de pression Delivered in standard with:

  • Internal pressure module to select from the list below
  • External sensor connector
  • mA / V input / output
  • Adapter kit: ½ NPT.F, ½BSP.F, 3/8NPT.F, 3/8BSP.F, 1/8NPT.F, 1/8BSP.F, 1/4BSP.F
  • Hoses
  • Battery charger
  • User manual

Table A – Accuracy of internal pressure
sensor 1                       ±0.05% FS 2                       ±0.025% FS
Table B – Internal pressure sensor (1 choice only)
0.010G                  -100 / 100 mbar, Gauge – Resolution: 0.001 mbar
0.050G                  -500 to 500 mbar, Gauge – Resolution: 0.01 mbar
0001G                   -0.95 to 1 bar, Gauge – Resolution: 0.01 mbar
0002G                   -0.95 to 2 bar, Gauge – Resolution: 0.01 mbar
0007G                   -0.95 to 7 bar, Gauge – Resolution. 0.1 mbar
0020G                   -0.95 to 20 bar, Gauge – Resolution. 0.1 mbar
0035G                   0 to 35 bar, Gauge – Resolution: 1 mbar
0070G                   0 to 70 bar, Gauge – Resolution: 1 mbar
0150G                   0 to 150 bar, Gauge – Resolution. 1 mbar
0350G                   0 to 350 bar, Gauge – Resolution. 10 mbar
0700G                   0 to 700 bar, Gauge – Resolution: 10 mbar
0002A                    0 to 2 bar, Absolute – Resolution: 0.01 mbar
0020A                    0 to 20 bar, Absolute – Resolution. 0.1 mbar
Table C - Alimentation
A                          120 V – 50/60 Hz with US plug
B                          100 V – 50/60 Hz with US/Japan plug
C                          230 V – 50/60 Hz with European plug
D                          230 V – 50/60 Hz with UK plug
E                          230 V – 50/60 Hz with Schuko plug
Table D - Accessories
0                           None

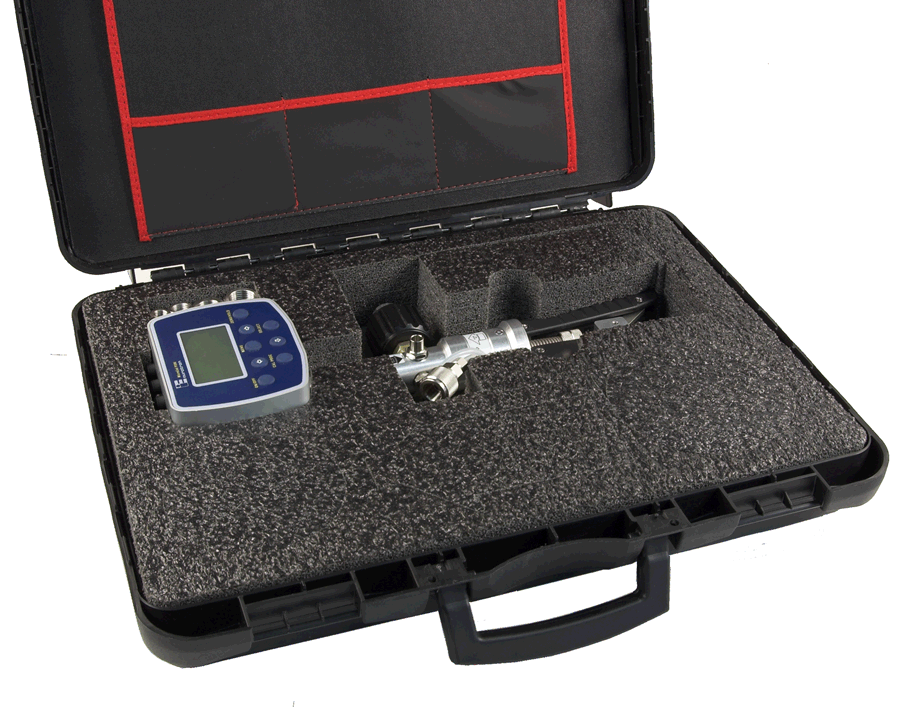

LP                         Pneumatic pump, -0.85 to 3 bar
P                          Pneumatic pump, -0.95 to 40 bar

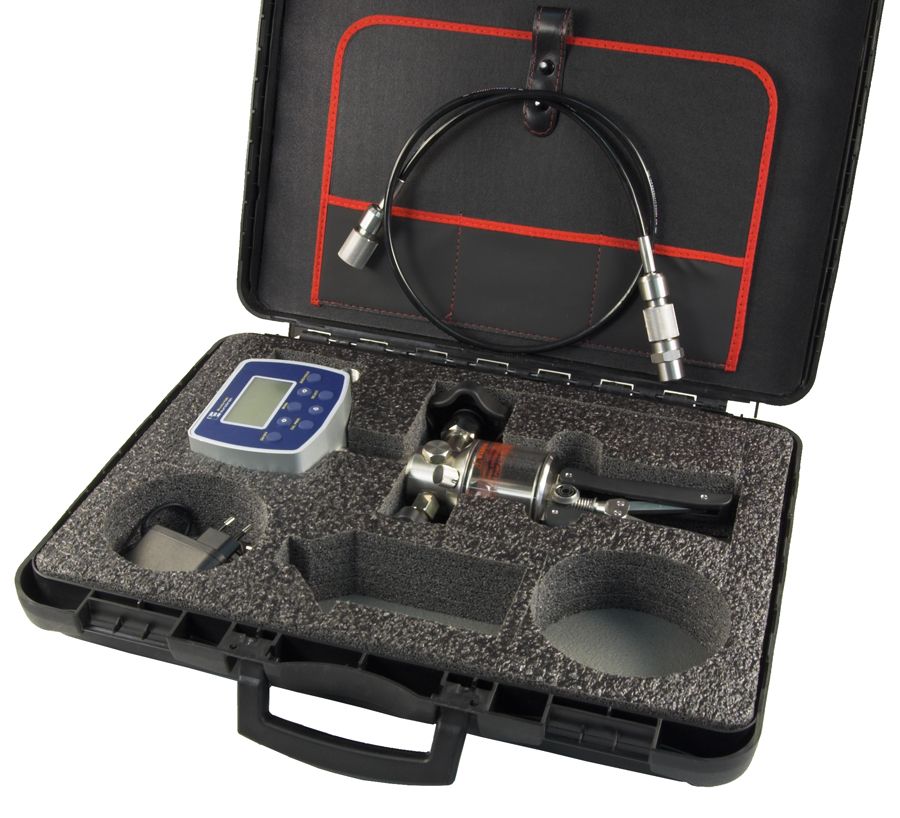

H                          Hydraulic pump, 700 bar
HF                        Hydraulic pump, 700 bar + high pressure hydraulic hose
Table E – Calibration report
E                          Factory calibration report

External pressure sensors - AISI316SS - ± 0.025% FS:

EE812009              -100 / 100 mbar, Gauge – Resolution: 0.001 mbar
EE812010              -500 to 500 mbar, Gauge – Resolution: 0.01 mbar
EE812011              -0.95 to 1 bar, Gauge – Resolution: 0.01 mbar
EE812012              -0.95 to 2 bar, Gauge – Resolution: 0.01 mbar
EE812013              -0.95 to 7 bar, Gauge – Resolution. 0.1 mbar
EE812014              -0.95 to 20 bar, Gauge – Resolution. 0.1 mbar
EE812015              0 to 35 bar, Gauge – Resolution: 1 mbar
EE812016              0 to 70 bar, Gauge – Resolution: 1 mbar
EE812017              0 to 150 bar, Gauge – Resolution. 1 mbar
EE812018              0 to 350 bar, Gauge – Resolution. 10 mbar
EE812019              0 to 700 bar, Gauge – Resolution: 10 mbar
EE812020              0 to 2 bar, Absolute – Resolution: 0.01 mbar
EE812021              0 to 20 bar, Absolute – Resolution. 0.1 mbar

Pompes à main :

EE300203              2 test leads 2 mm with clamps
EE480053              1/4" BSPM / NPT.F adapter kit (1/8"; 1/4"; 3/8"; 1/2")
EE480054              it 1/4" BSPM / BSP adapter kit (1/2" M; 1/2" F, 3/8" F, 1/8" F)
EE880052              ABS carrying case for pump, calibrator and accessories
TP1-40                   Pneumatic pump, -0.95 to 40 bar HTP1-700
Hydraulic pump, 700 bar LTP1
Pneumatic pump -0.85 to 3 bar

Further accessories:

BB530203              RS232 cable
BB530213              USB cable
BB260198              LogMan data management software

Packing information:

Size                       130 x 120 x 70 mm
Weight (nett)          1.4 kg
Weight (gross)        2.5 kg
