Temperature SensorMeasurement range: -40 to 80°C
Accuracy: ±0.3°C
Certification: CE
The LGR36 is a temperature sensor that can be used in two different modes:
Monitoring (real-time monitoring applications): the logger sends its measurements to the PC in real time. If a measurement is not received by the PC, it stores it in its internal memory and sends it to the PC on the following communication channel "recording".
Recording/retrieval (a posteriori control): the logger records the measurements it takes in its on-board memory. Users can download all stored measurements to their PC at any time.
It is equipped with :
IP65 enclosure (Aluminium)
½ wave antenna
Power supply AA Lithium Thionyl battery
|
LGR36 |
|
| Type | For Newsteo digital temperature probe |
| Temperature range of use of the logger | -40°C… +85°C |
| Measurement range | -40°C… +100°C |
| Accuracy | ± 0.3°C |
| Resolution | 0.1°C |
| Antenna RF Connector | SMA connector |
| Antenna | ½ Wave antenna (included) |
| RF range in free land | 100m to 1km, depending on the antenna used on the reception side |
| Memory Capacity | 32 256 measurments with date and time |
| Time resolution | 1s |
| Time deviation | +/- 2min/month at 25°C |
| Data memory retention | 100 years |
| ILS | ILS integrated for several functions :
- Wakeup of the product in hibernate mode - Take of a measure outside of the frequency measure set |
| IP | IP65, the level of tightness of the product is valid only if the probe and antenna are properly tightened (seals crushed) |
| Battery | AA lithium Thionyl (included) with plug-in connector |
| Autonomy | Up to 3 years
At 25°C with a frequency measures of 10 minutes. Average value which can slightly vary depending on the use. It is given with the product working in non alert mode. |
Specifications :
| Features | Aluminium casing (4mm) | ||||||
| Fixation | Fixation support provided screwed in the casing for screwing in 4 points or strapping through 2 holes | ||||||
| Colour | Grey (aluminium | ||||||

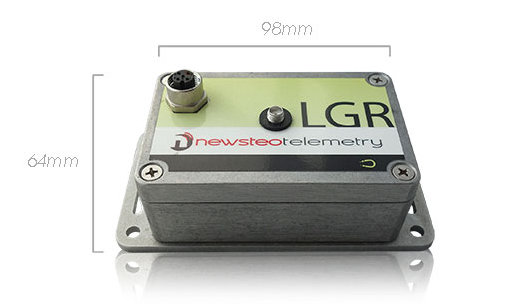

| Dimensions |
|
||||||
| Weight | About 280g | ||||||
| Stickers | 2 stickers on the product :
- 1 sticker on the top face, giving the product range - 1 sticker on the side, giving the complete product reference and its serial number |
