LGR46-001

picto fleche Temperature Sensor

Measuring range: -40°C…100°C
Accuracy : ±0.3°C


Certification: CE

Ask a question
Get a call

The LGR46 is a temperature sensor that can be used in two different modes:

Monitoring (real-time monitoring applications): the logger sends its measurements to the PC in real time. If a measurement is not received by the PC, it stores it in its internal memory and sends it to the PC on the following communication channel: "recording".

Recording/retrieval (a posteriori control): the logger records the measurements it takes in its on-board memory. Users can download all stored measurements to their PC at any time.

It is also equipped with :

IP65 enclosure (Aluminium)
½ wave antenna
Power supply AA Lithium Thionyl battery

LGR46

Type For Newsteo Double external probe of Temperature
Temperature range of use of the logger -40°C… +85°C
Measurement range -40°C… +100°C
Accuracy ± 0.3°C
Resolution 0.1°C



Antenna RF Connector SMA connector
Antenna ½ Wave antenna (included)
RF range in free land 100m to 1km, depending on the antenna used on the reception side
Memory Capacity 32 256 measurments with date and time
Time resolution 1s
Time deviation +/- 2min/month at 25°C
Data memory retention 100 years
ILS ILS integrated for several functions :

-          Wakeup of the product in hibernate mode

-          Take of a measure outside of the frequency measure set



IP IP65, the level of tightness of the product is valid only if the probe and antenna are properly tightened (seals crushed)
Battery AA lithium Thionyl (included) with plug-in connector
Autonomy Up to 3 years

At 25°C with a frequency measures of 10 minutes. Average value which can slightly vary depending on the use. It is given with the product working in non alert mode.



Specifications :

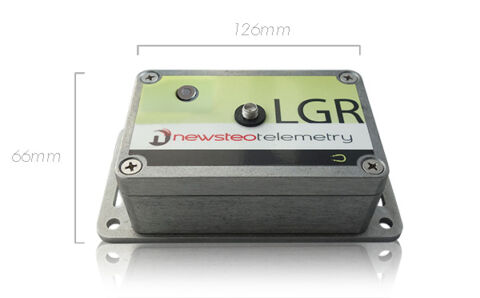

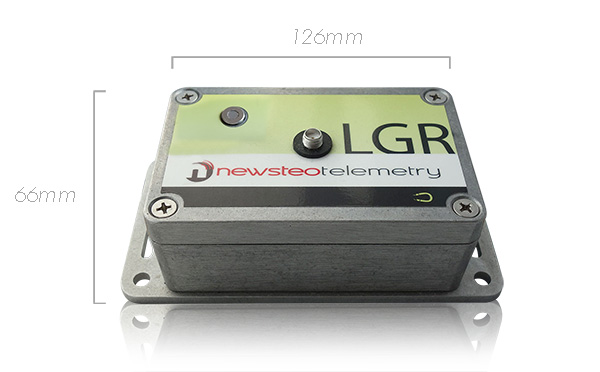

Features Aluminium casing (4mm)
Fixation Fixation support provided screwed in the casing for screwing in 4 points or strapping through 2 holes
Colour Grey (aluminium
Dimensions
Length 98 mm
Depth 64 mm
Heigth 34 mm
Weight About 280g
Stickers 2 stickers on the product :

-          1 sticker on the top face, giving the product range

-          1 sticker on the side, giving the complete product reference and its serial number
