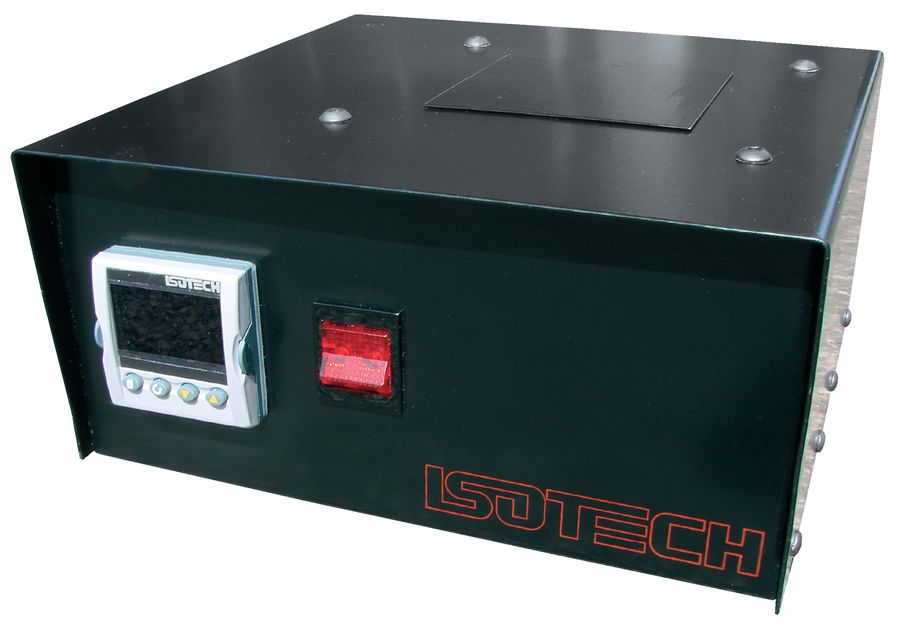

975

picto fleche Medium temperature lost cost fast Greybody source, 50°C to 350°C

The 975 is a low cost fast Greybody source offering a cost effective solution for the calibration and testing of infrared thermometers from 50°C to 350°C. It gives fast accurate results with a larger sensing area.

Ask a question
Get a call

The 975 is a low cost fast Greybody source offering a cost effective solution for the calibration and testing of infrared thermometers from 50°C to 350°C. It is ideal when the high accuracy offered by the Gemini R 976 is not necessary.

The Greybody model 975 gives fast accurate results with a larger sensing area. A temperature sensor sits just under the target surface and controls the temperature of the source. A custom designed surface sensor is used to set the controller calibration and a traceable certificate is supplied with each source.

 Key features:

  • Medium temperature Blackbody source: 30°C to 350°C
  • Emissivity: > 0.95
  • Ridged plate target: 70 mm diameter
Temperature range50°C to 350°C
Target size70 mm diameter
Ridged plate
Stability±0.2°C
Accuracy±2°C
Emissivity> 0.95
Heating time35 min

General specifications

Size115 x 230 x 225 mm
Weight3.9 kg
DisplayResolution: 0.01°C at 50 / 99,99 and 0.1°C at 100 / 350
Power supply100 / 130 V or 208 / 240 VAC, 50/60 Hz
180 Watts

Instrument:

975                       Medium temperature lost cost fast Greybody source, 50°C to 350°C

Delivered in standard with:

  • User manual
  • Traceable certificate

Please specify supply voltage required at the order: 100 / 130 V (50/60 Hz) or 208 / 240 V (50/60 Hz)

Packing information:

Size                       115 x 230 x 225 mm

Weight without packing   3.9 kg

ProductDescriptionReleaseType
CalNotePad

Data management software

3.10zip
