988

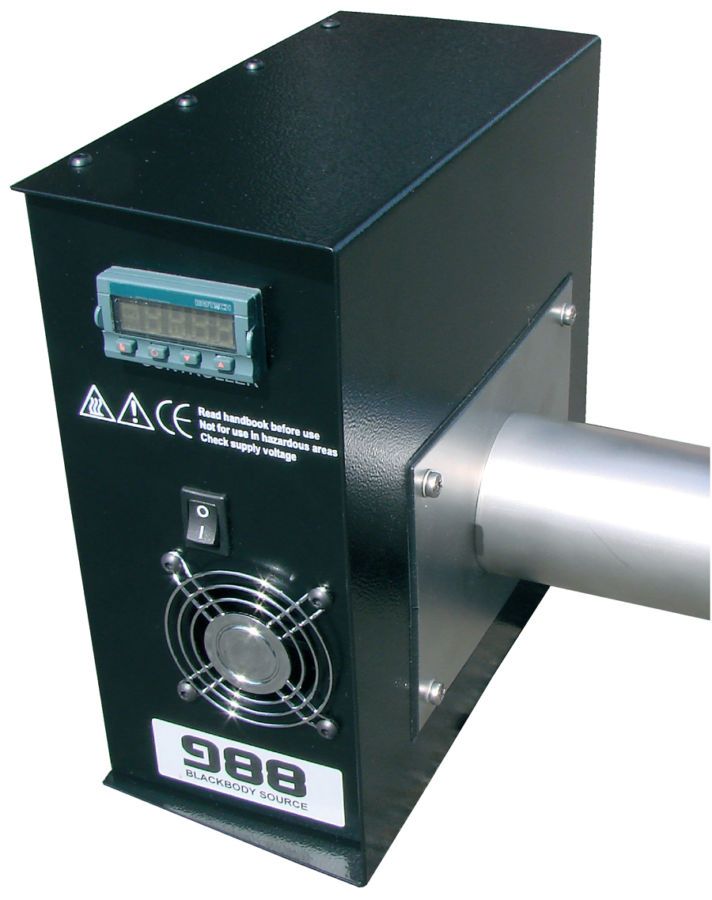

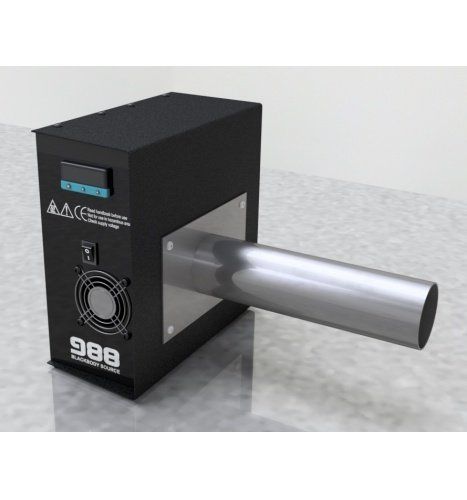

picto fleche Blackbody source for thermal and infrared cameras, 20°C to 45°C

The 988 is a low cost Blackbody source for the calibration of thermal imagers and infrared thermometers from 20°C to 45°C with a resolution of 0.01°C.

Ask a question
Get a call

The 988 is a low cost Blackbody source introduced to meet customer requirements for a simple, cost effective but high accuracy calibrator for the calibration of thermal imagers and infrared thermometers used at temperatures around ambient.

A 70 mm diameter ridged plate is heated or cooled with an internal solid state thermoelectric heat pump. The temperature of the plate can be set from 20°C to 45°C with a resolution of 0.01°C.

Evaluation showed the advantages of fitting a stainless steel tube around the plate to give better uniformity and less sensitivity to draughts and ambient temperature effects.

Key features:

  • Ambient temperature spherical Blackbody source: 20°C to 45°C
  • Emissivity: 0.97 at ±0.02
  • Controller resolution: 0.01°C
Temperature range20°C to 45°C

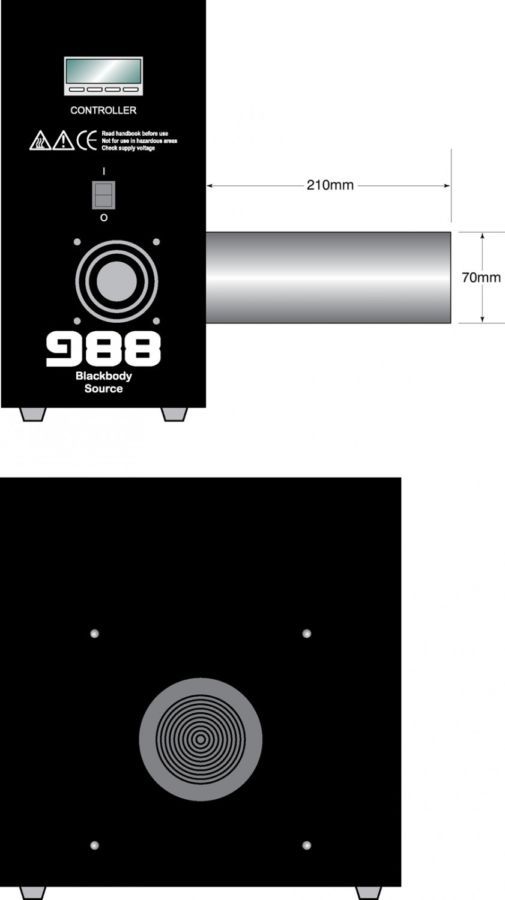

Target size70 mm diameter
Stability±0.2°C
Accuracy±0.2°C
Emissivity0.97 at ±0.02
Heating time35 min

General specifications

Size230 x 225 x 115 mm
Weight4 kg
DisplayResolution: 0.01°C
Power supply12 V
60 Watts

Instrument :

988                       Source corps noir d’étalonnage pour caméras thermiques et infrarouges, 20°C à 45°C

Livré en standard avec :

  • Certificat de calibration en 3 points
  • Manuel d’utilisation
  • Certificat de traçabilité

CERT988               Certificat de calibration en 3 points (réétalonnage)

Information de transport :

Dimensions sans emballage        230 x 225 x 115 mm

Poids sans emballage     4 kg
