Gemini R 976

picto fleche Medium temperature primary Blackbody source, 30°C to 550°C

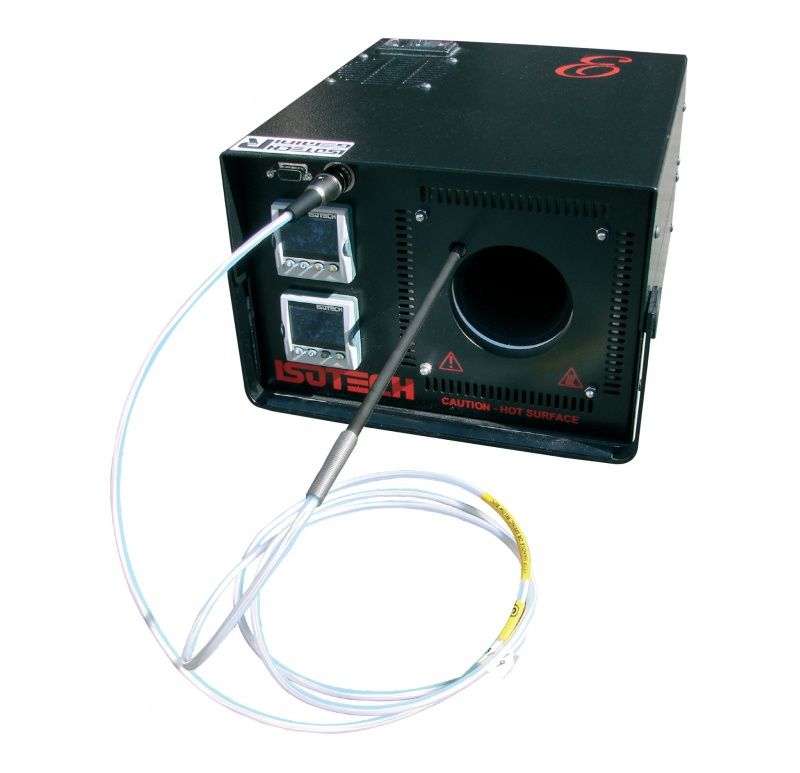

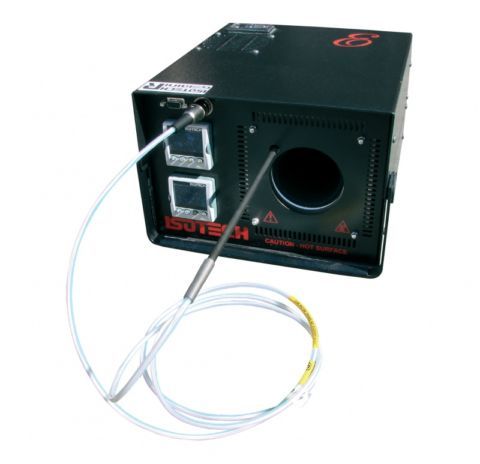

The Gemini R 976 portable Blackbody calibration source allows for calibration of non-contact infrared thermometers from 30°C to 550°C. It is suitable for use as a primary radiation source for infrared thermometers.

Ask a question
Get a call

The Gemini R 976 portable Blackbody calibration source allows for calibration of non-contact infrared thermometers from 30°C to 550°C. It is suitable for use as a primary radiation source for infrared thermometers.

Laboratory performance and low uncertainty calibrations are ensured by the combination of high emissivity and excellent temperature uniformity.

The digital temperature controller allows the block temperature to be set to any value from 30°C to 550°C.

Traceability of the radiance temperature is established by a separate, built-in temperature indicator and an included Platinum resistance thermometer.

A three point traceable calibration certificate is included in standard. UKAS calibration of the resistance thermometers is available in option.

Uniformity of the block is ensured by using distributed heating technology.

Key features:

  • Medium temperature radiation primary source: 30°C to 550°C
  • Large cavity: 65 mm diameter
  • Emissivity: > 0.995
Temperature range30°C to +550°C

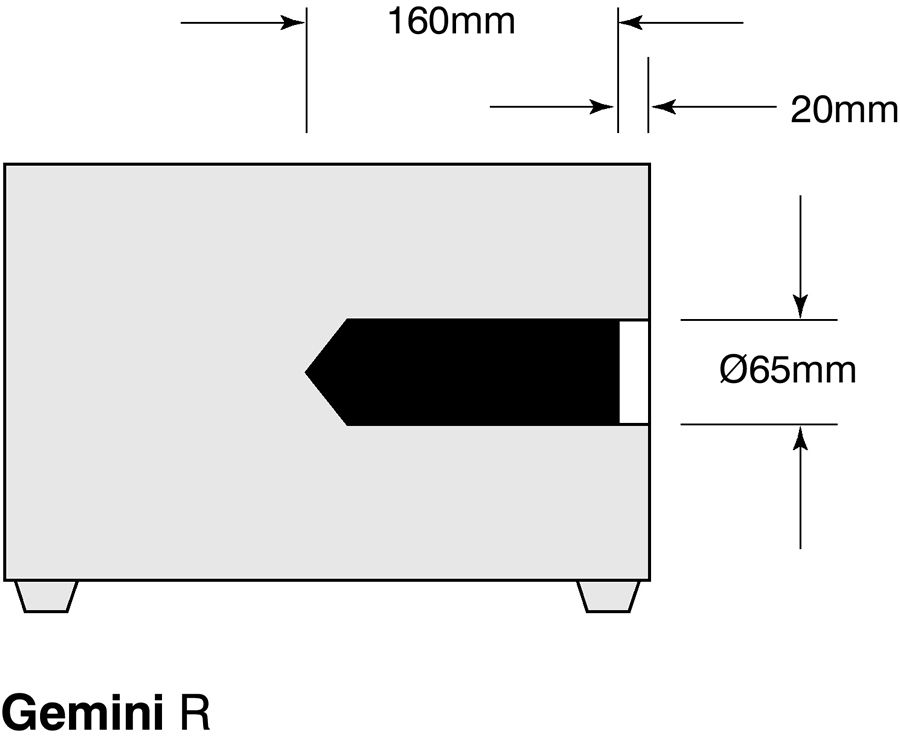

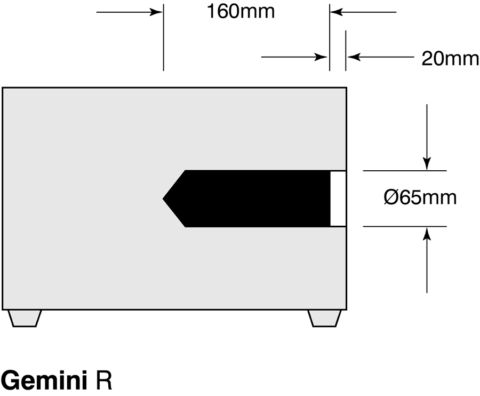

Cavity size65 x 160 mm deep
Stability±0.1°C
Emissivity> 0.995
Heating time45 min

General specifications

Size310 x 265 x 200 mm
Weight10 kg
DisplayResolution: 0.01°C at 99.99 and 0.1°C at 100 / 550
Power supply100 / 130 V or 208 / 240 VAC, 50/60 Hz
1000 Watts

Instrument:

Gemini R 550 976   Medium temperature primary Blackbody source, 30°C to 550°C

Delivered in standard with:

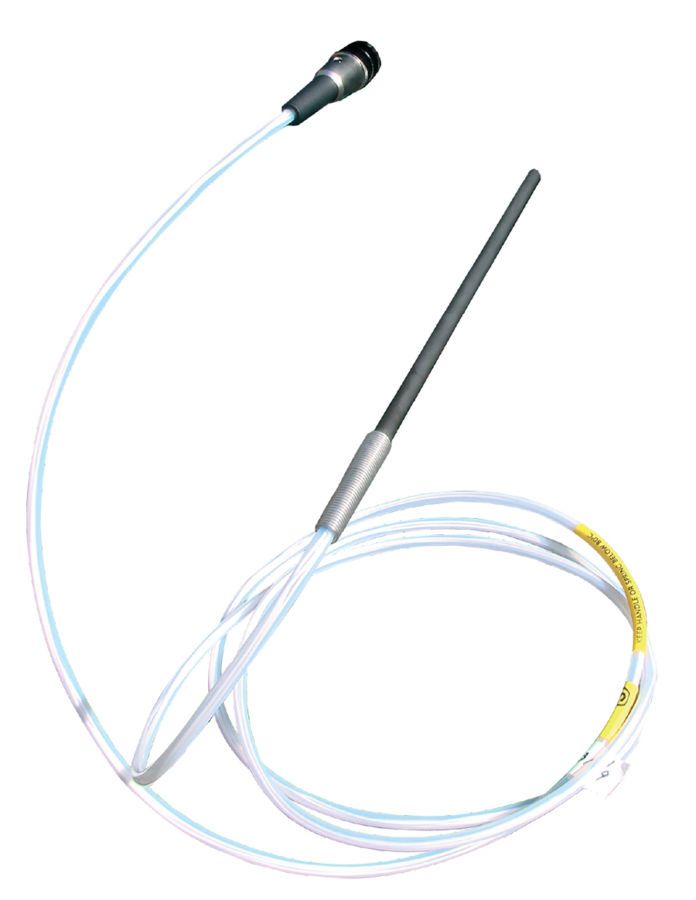

  • Standard thermocouple type N 935-14-94/DB
  • Cal Notepad software
  • Serial communication cable
  • User manual
  • Traceable certificate

Accessories:

976-01-05F-K          Set of 5 orifice plates to reduce cavity size (50 / 40 / 30 / 20 / 10 mm)

935-14-94/DB         Replacement standard thermocouple type N

931-22-64               Carrying case

984                       Gas flow system

Fixed Point cells “hockey puck” type:

431-03-00               Gallium Fixed Point cell (29.7646°C)

976-05-00A             Indium Fixed Point cell (156.60°C)

976-05-00B             Tin Fixed Point cell (231.93°C)

976-05-00C            Zinc Fixed Point cell (419.53°C)

UKAS                    5-point calibration certificate

NPL                      Calibration certificate

Packing information:

Size                       310 x 265 x 200 mm

Weight without packing   10 kg

ProductDescriptionReleaseType
CalNotePad

Data management software

3.10zip
