Hyperion R 982

picto fleche Low temperature primary Blackbody source, -10°C to 80°C

The Hyperion R 982 portable Blackbody calibration source allows for calibration of non-contact infrared thermometers from -10°C to 80°C. It is suitable for use as a primary radiation source for infrared thermometers.

Ask a question
Get a call

The Hyperion R 982 portable Blackbody calibration source allows for calibration of non-contact infrared thermometers from -10°C to 80°C. It is suitable for use as a primary radiation source for infrared thermometers.

Laboratory performance and low uncertainty calibrations are ensured by the combination of high emissivity and excellent temperature uniformity.

The digital temperature controller allows the block temperature to be set to any value from -10°C to 80°C.

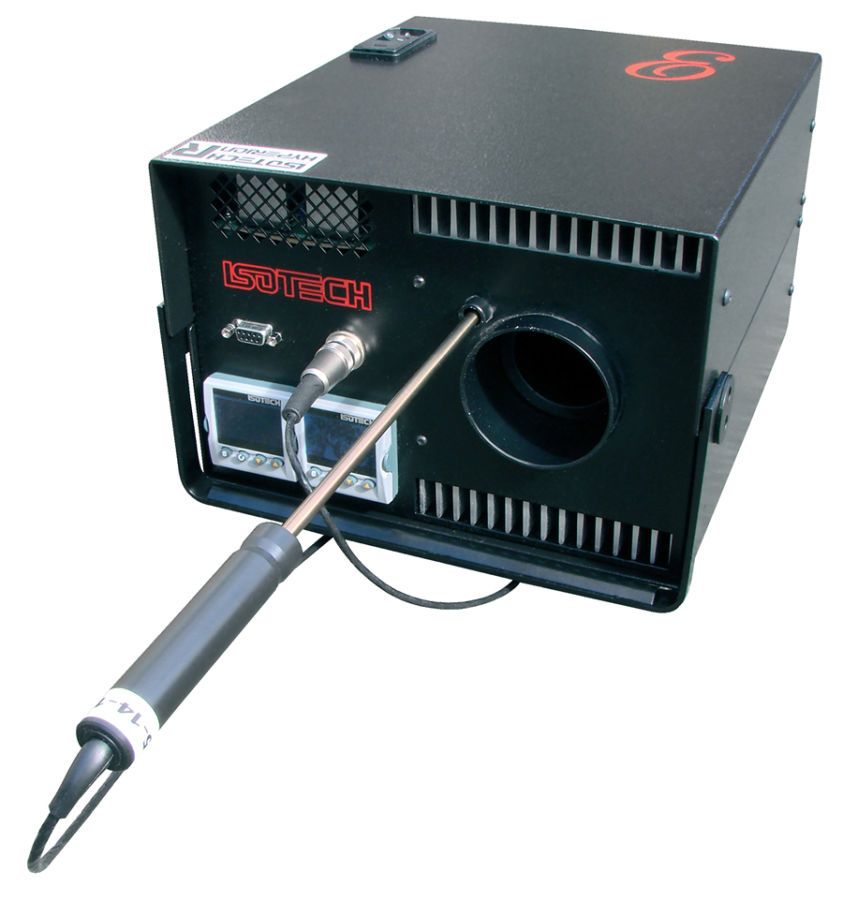

Traceability of the radiance temperature is established by a separate, built-in temperature indicator and an included Platinum resistance thermometer.

A three point traceable calibration certificate is included in standard. UKAS calibration of the resistance thermometers is available in option.

Uniformity of the block is ensured by using distributed thermoelectric heat pumps with the benefit of vibration free cooling.

Key features:

  • Low temperature radiation primary source: -10°C to 80°C

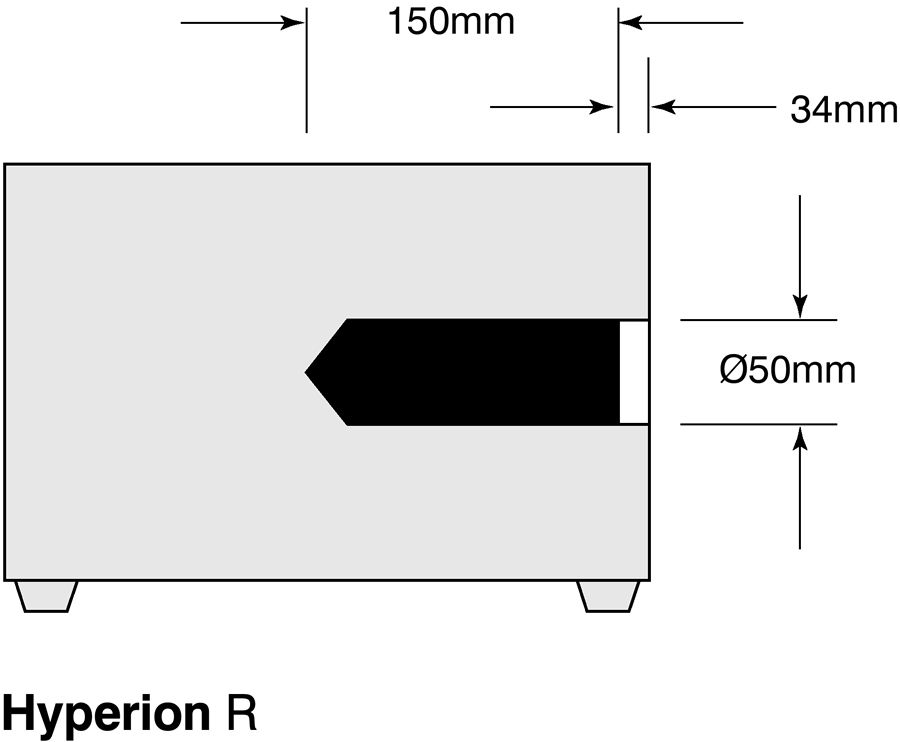

  • Large cavity: 50 mm diameter
  • Emissivity: 0.995
Temperature range-10°C to +80°C
Cavity size50 x 150 mm deep
Stability±0.1°C
Emissivity> 0.995
Heating timeTo 80°C: 40 min
Cooling timeTo -10°C: 45 min

General specifications

Size310 x 265 x 200 mm
Weight10 kg
DisplayResolution: 0.01°C
Power supply100 / 130 V or 208 / 240 VAC, 50/60 Hz
200 Watts

Instrument:

Hyperion R 982      Low temperature primary Blackbody source, -10°C to 80°C

Delivered in standard with:

  • Standard probe 935-14-13/DB
  • Cal Notepad software
  • Serial communication cable
  • User manual
  • Traceable certificate

Accessories:

812-01-06               Set of 4 orifice plates to reduce cavity size (40 / 30 / 20 / 10 mm)

935-14-13/DB         Replacement standard probe

931-22-64               Carrying case

UKAS                    Calibration certificate at ±3°C

UKAS Premium       Calibration certificate at  ±0.8°C

Packing information:

Size                       310 x 265 x 200 mm

Weight without packing   10 kg
