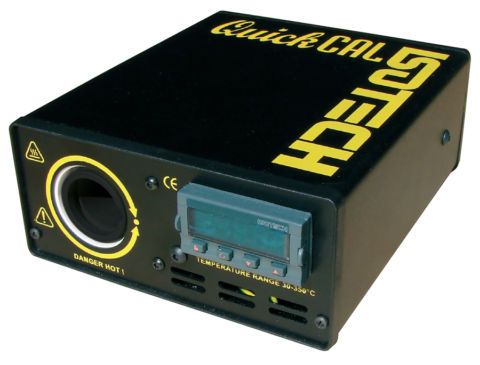

Quick-Cal 550-02
Compact medium temperature Blackbody source, 30°C to 350°C
The Quick-Cal 550-02 is a low cost fast blackbody source offering a cost effective solution for the calibration and testing of infrared thermometers from 30°C to 350°C.
The Quick-Cal 550-02 is a low cost fast blackbody source offering a cost effective solution for the calibration and testing of infrared thermometers from 30°C to 350°C.
The Quick-Cal 550-02 is a low cost fast Blackbody source offering a cost effective solution for the calibration and testing of infrared thermometers from 30°C to 350°C. It is ideal when the high accuracy offered by the Gemini R 976 is not necessary.

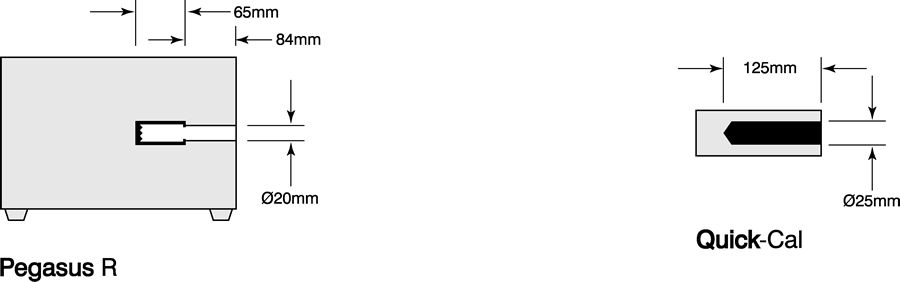

It features a cylindrical cavity of 25 mm diameter by 115 mm deep.
Temperature range | 30°C to 350°C |
Resolution | 0.1°C |
Target size | 25 x 115 mm Cylindric cavity with end cone |
Stability | ±0.2°C |
Accuracy | ±0.5°C |
Emissivity | > 0.99 Surface coating at 0.98 |
Heating time | 9 min |
Size | 65 x 152 x 175 mm |
Weight | 1.5 kg |
Power supply | 100 / 130 V or 208 / 240 VAC (50/60 Hz) 300 Watts |
Quick-Cal 550-02 Compact medium temperature blackbody source, 30°C to 350°C
Delivered in standard with:
Please specify supply voltage required at the order: 100 / 130 V (50/60 Hz) or 208 / 240 V (50/60 Hz)
931-22-71 Carrying case
CAL 5 point calibration certificate
Size 65 x 152 x 175 mm
Weight without packing 1.5 kg
Product | Description | Release | Type |
---|---|---|---|
CalNotePad | Data management software |
3.10 | zip |
