Fast-Cal High

picto fleche Basic fast industrial calibration dry block, 30°C to 350°C – Removable insert

Fast-Cal Medium is a basic fast industrial calibration dry block for temperature thermometers from 35°C to 650°C.

Ask a question
Get a call

Fast-Cal High is a basic fast industrial calibration dry block for temperature thermometers from 35°C to 650°C.

Fast-Cal Medium is available in three models, the BASIC (B), the SITE (S) and the SITE (S-TC).

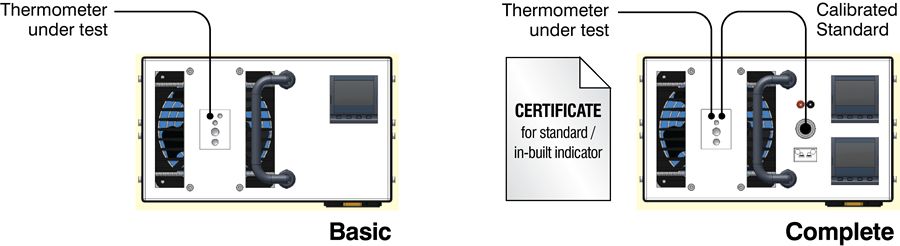

The B model includes a sophisticated temperature controller with a dual display for set temperature and dry block temperature.

The S and S-TC models additionally include an in-built temperature digital indicator to which an external temperature sensor can be connected, giving greater accuracy eliminating temperature gradient and loading errors. The S model will accept a semi standard PRT, the S-TC model will work with a type N thermocouple.

Key features:

  • Calibration volume: 25 x 148 mm depth
  • Lightweight and rugged
  • Easy to use on site
Temperature range 35°C to +650°C
Stability ±0.03°C to ±0.05°C
Accuracy - Basic ±1°C at 500°C
Accuracy – Complete (with semi standard PRT) ±2°C at 650°C
Heating time 50°C to 650°C: 20 min
Cooling time 650°C to 300°C: 20 min
Calibration volume 25 x 148 mm depth
Process input 4-20 mA (for On Site model only)

General specifications

Size 228 x 248 x 143 mm
Weight 6.35 kg
Power supply 115 VAC or 230 VAC, 50/60 Hz
750 Watts
Communication ports RS 232

Instrument:

Fast-Cal High B      Portable industrial temperature calibrator, 35°C to 650°C – Basic model

Delivered in standard with:

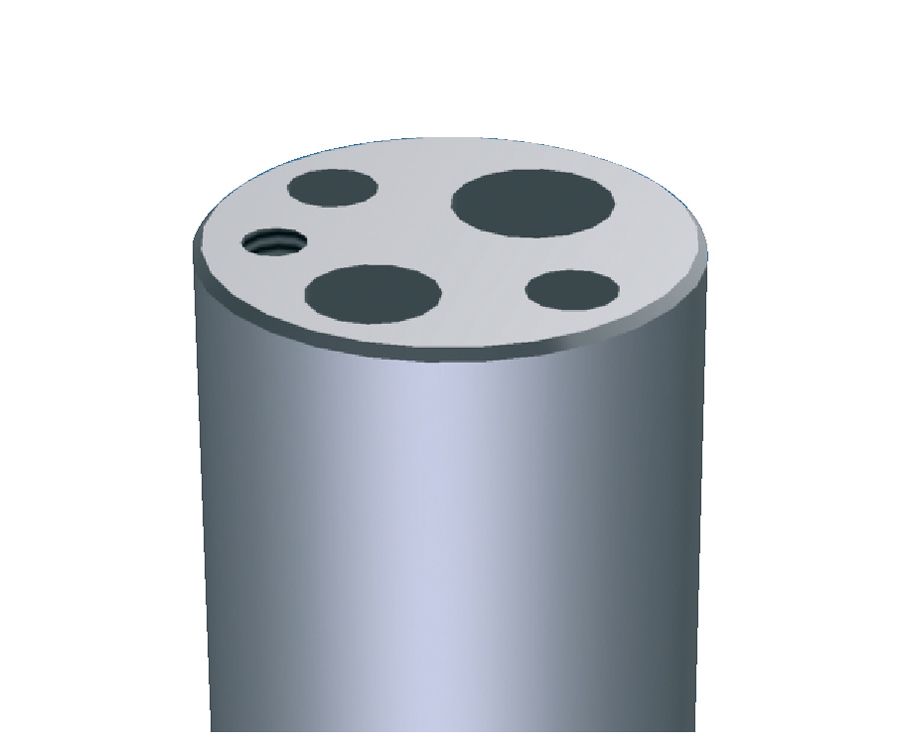

  • Standard insert with 4 holes of diameter: 2x 4.5 mm / 1x 6.5 mm, depth: 140 mm
  • Cal Notepad software
  • Serial communication cable
  • User manual
  • Traceable certificate

Fast-Cal High S      Portable industrial temperature calibrator, 35°C to 650°C – On Site model

Delivered in standard with:

  • Standard insert with 4 holes of diameter: 2x 4.5 mm / 1x 6.5 mm, depth: 140 mm
  • Cal Notepad software
  • Serial communication cable
  • User manual
  • Traceable certificate
  • Built-in digital indicator
  • Semi standard platinum resistance thermometer Pt100, 935-14-72/DB

Fast-Cal High S-TC Portable industrial temperature calibrator, 35°C to 650°C – On Site model

Delivered in standard with:

  • Standard insert with 4 holes of diameter: 2x 4.5 mm / 1x 6.5 mm, depth: 140 mm
  • Cal Notepad software
  • Serial communication cable
  • User manual
  • Traceable certificate
  • Built-in digital indicator
  • Semi standard type N thermocouples, 935-14-63/DB

Metal block bath:

907-02-03d             Standard insert with 3 holes of diameter: 2x 4.5 mm / 1x 6.5 mm

                            Depth: 140 mm

907-02-03f             Blank insert

907-02-03g             Non-standard insert

UKAS                    5 point comparison calibration

Packing information:

Size                       228 x 248 x 143 mm

Weight without packing   6.35 kg

Product Description Release Type
CalNotePad

Data management software

 3.10 zip
