Fast-Cal HTM 2010

picto fleche Basic fast industrial calibration dry block, -35°C (Tamb 20°C) to 140°C – Fixed block

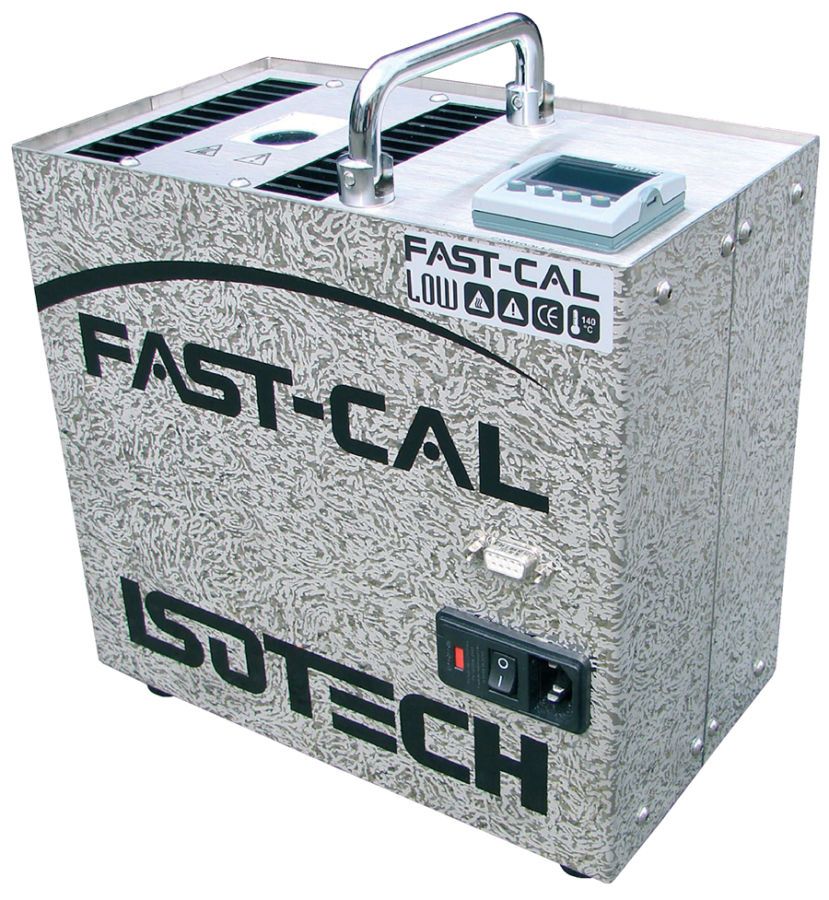

Fast-Cal HTM 2010 is a basic fast industrial calibration dry block for temperature thermometers from -35°C (Tamb 20°C) to 140°C. With its fixed block, this model is ideal for the validation of washer disinfectors, steam sterilizers and autoclaves.

Ask a question
Get a call

Fast-Cal HTM 2010 is a basic fast industrial calibration dry block for temperature thermometers from -35°C (Tamb 20°C) to 140°C. This model is ideal for the validation of washer disinfectors, steam sterilizers and autoclaves. In place of a removable insert, it has a fixed block with holes for a reference probe and the type of test sensor commonly used in validation applications.

Key features:

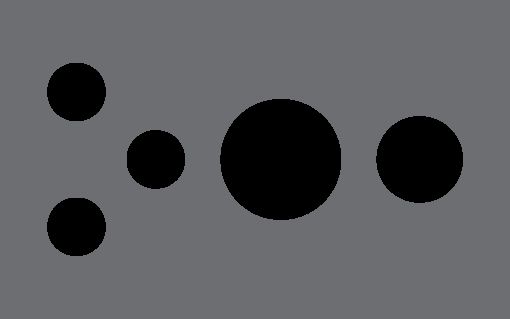

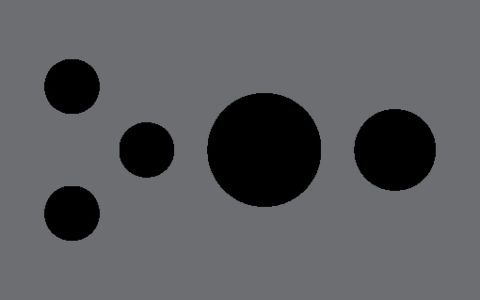

  • Calibration volume: Fixed block of 5 holes of diameter: 3x 4.5 mm / 1x 6.5 mm / 1x 8 mm, depth: 145 mm
  • Lightweight and rugged
  • Easy to use on site
Temperature range -35°C (Tamb 20°C) to 140°C
Stability ±0.02°C

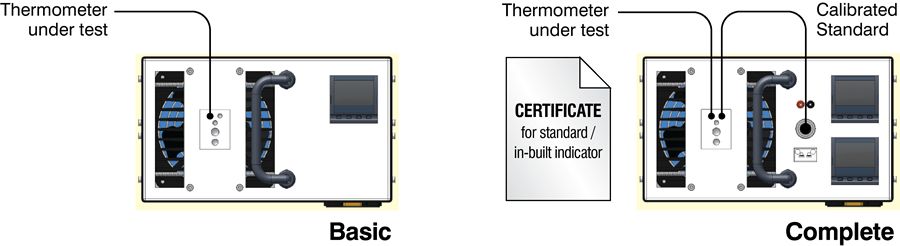

Accuracy - Basic ±0.2°C
Accuracy – Complete (with semi standard PRT) ±0.15°C
Heating time -30°C to 140°C: 15 min
Cooling time 140°C to 0°C: 15 min
Calibration volume Fixed
3x 4.5 mm / 1x 6.5 mm / 1x 8 mm
Depth: 145 mm
Process input 4-20 mA (for On Site model only)

General specifications

Size 228 x 248 x 143 mm
Weight 6.6 kg
Power supply 115 VAC or 230 VAC, 50/60 Hz
150 Watts
Communication ports RS 232

Instrument:

Fast-Cal HTM 2010 B     Portable dry block calibrator, -35°C (Tamb 20°C) to 140°C – Basic model

Delivered in standard with:

  • Fixed block of 5 holes of diameter: 3x 4.5 mm / 1x 6.5 mm / 1x 8 mm, depth: 145 mm
  • Cal Notepad software
  • Serial communication cable
  • User manual
  • Traceable certificate

Fast-Cal HTM 2010 S     Portable dry block calibrator, -35°C (Tamb 20°C) to 140°C – On Site model

Delivered in standard with:

  • Fixed block of 5 holes of diameter: 3x 4.5 mm / 1x 6.5 mm / 1x 8 mm, depth: 145 mm
  • Cal Notepad software
  • Serial communication cable
  • User manual
  • Traceable certificate
  • Built-in digital indicator
  • Semi standard platinum resistance thermometer Pt100, 935-14-82/DB

Accessories:

UKAS                    5 point comparison calibration

Packing information:

Size                       228 x 248 x 143 mm

Weight without packing   6.6 kg

Product Description Release Type
CalNotePad

Data management software

 3.10 zip
