Fast-Cal Medium

picto fleche Basic fast industrial calibration dry block, 30°C to 350°C – Removable insert

Fast-Cal Medium is a basic fast industrial calibration dry block for temperature thermometers from 30°C to 350°C.

Ask a question
Get a call

Fast-Cal Medium is a basic fast industrial calibration dry block for temperature thermometers from 30°C to 350°C.

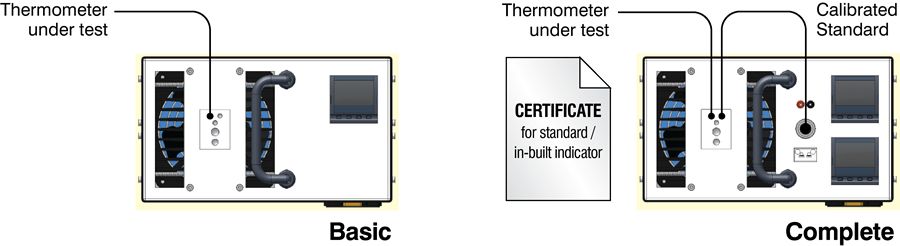

Fast-Cal Medium is available in two models, the BASIC (B) and the SITE (S).

The B model includes a sophisticated temperature controller with a dual display for set temperature and dry block temperature.

The S model additionally includes an in-built temperature digital indicator to which an external temperature sensor can be connected, giving greater accuracy eliminating temperature gradient and loading errors.

Key features:

  • Calibration volume: 25 x 148 mm depth
  • Lightweight and rugged
  • Easy to use on site
Temperature range30°C (Tamb 20°C) to 350°C
Stability±0.03°C
Accuracy - Basic±0.3°C
Accuracy – Complete (with semi standard PRT)±0.2°C
Heating time50°C to 350°C: 15 min
Cooling time350°C to 100°C: 40 min
Calibration volume25 x 148 mm depth
Process input4-20 mA (for On Site model only)

General specifications

Size228 x 248 x 143 mm
Weight6.35 kg
Power supply115 VAC or 230 VAC, 50/60 Hz
750 Watts
Communication portsRS 232

Instrument:

Fast-Cal Medium B  Portable industrial temperature calibrator, 30°C to 350°C – Basic model

Delivered in standard with:

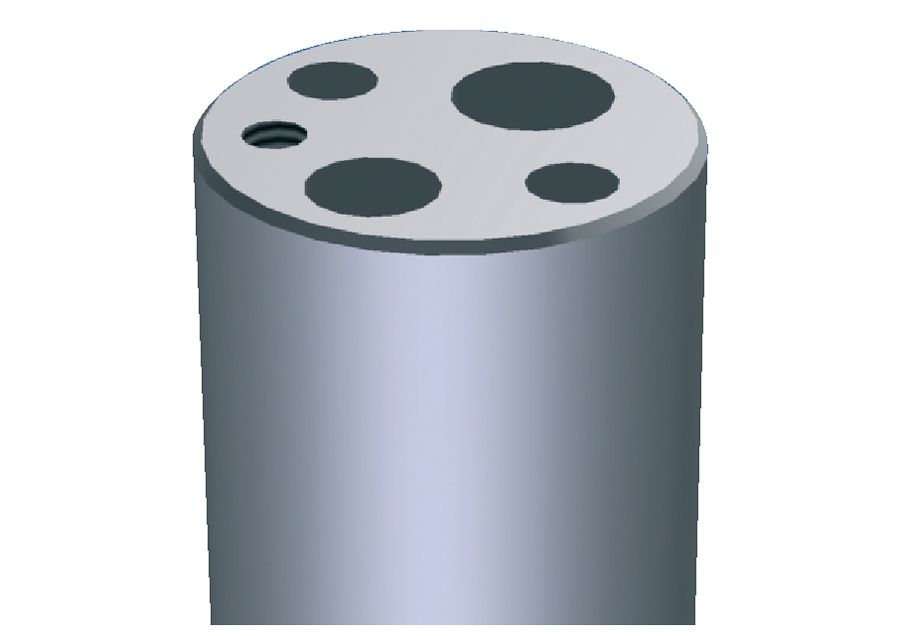

  • Standard insert with 4 holes of diameter: 2x 4.5 mm / 1x 6.5 mm, depth: 140 mm
  • Cal Notepad software
  • Serial communication cable
  • User manual
  • Traceable certificate

Fast-Cal Medium S  Portable industrial temperature calibrator, 30°C to 350°C – On Site model

Delivered in standard with:

  • Standard insert with 4 holes of diameter: 2x 4.5 mm / 1x 6.5 mm, depth: 140 mm
  • Cal Notepad software
  • Serial communication cable
  • User manual
  • Traceable certificate
  • Built-in digital indicator
  • Semi standard platinum resistance thermometer Pt100, 935-14-82/DB

Metal block bath:

907-02-03               Standard insert with 3 holes of diameter: 2x 4.5 mm / 1x 6.5 mm

                            Depth: 140 mm

907-02-03b             Blank insert

907-02-03c             Non-standard insert

UKAS                    5 point comparison calibration

Packing information:

Size                       228 x 248 x 143 mm

Weight without packing   6.35 kg

ProductDescriptionReleaseType
CalNotePad

Data management software

3.10zip
