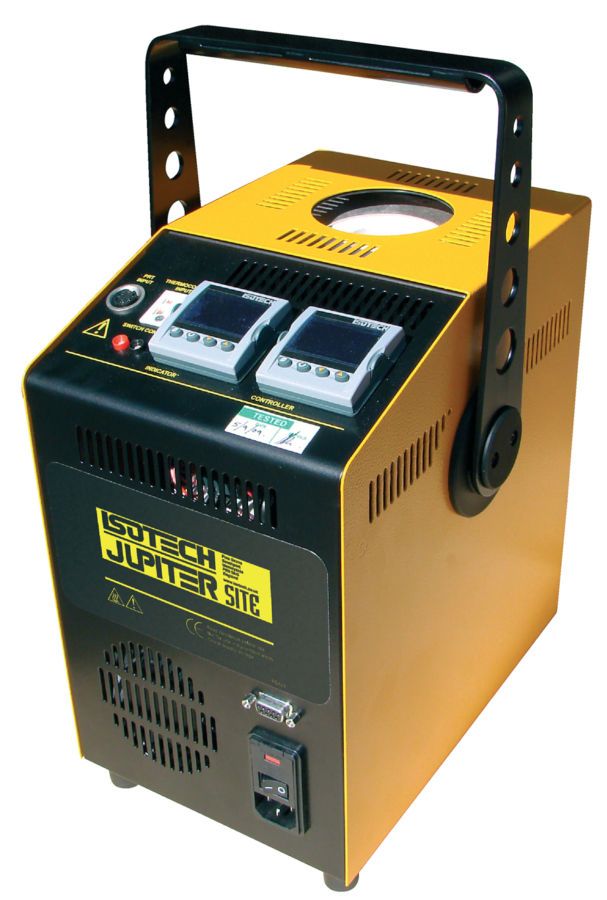

Jupiter 650

picto fleche Large volume portable dry block calibrator, 35°C to 650°C

Jupiter 650 is a large volume portable dry block calibrator for temperature thermometers from 35°C to 650°C. It offers offers industry-leading performance in an easy to use portable package, ideal for the calibration of high temperature thermocouples. For enhanced flexibility, surface sensor and infrared thermometer accessories can be added.

Ask a question
Get a call

Jupiter 650 is a large volume portable dry block calibrator for temperature thermometers from 35°C to 650°C. It is ideal for the calibration of thermocouples and platinum resistance thermometers. It has been designed for fast heating and cooling for convenient field use. For enhanced flexibility, surface sensor and infrared thermometer accessories can be added.

The standard insert can hold up to six thermometers. For larger blocks, see Gemini and Medusa models.

Jupiter 650 is available in two models, the BASIC (B) and the SITE (S).

The B model includes a sophisticated temperature controller with a dual display for set temperature and dry block temperature.

The S model additionally includes an in-built temperature digital indicator to which an external temperature sensor can be connected, giving greater accuracy eliminating temperature gradient and loading errors.

For surface sensor and Blackbody use, an external thermometer should always be used.

For laboratory accuracy, Jupiter 650 can be used with high-end temperature indicator.

Key features:

  • Large calibration volume: 35 x 148 mm depth
  • Wide operating range: 35°C to 650°C
  • Fast heating and cooling
  • Good temperature uniformity
  • Convertible for blackbody source and surface sensor calibration
Temperature range 35°C to +650°C
Absolute stability over 30 min ±0.02°C at 50°C
±0.02°C at 250°C
±0.03°C at 650°C
Blackbody source ±0.3°C
Surface sensor calibration ±0.5°C
Cooling time 650°C to 150°C: 60 min
Heating time 30°C to 650°C: 20 min
Performances Refer to uncertainties graph below
Calibration volume 35 x 148 mm depth
Standard insert 6 holes: 2x 4.5 mm / 2x 6.4 mm / 1x 8 mm / 1x 9.5 mm
Depth: 140 mm

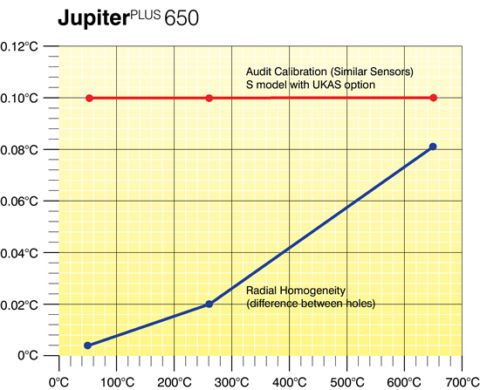

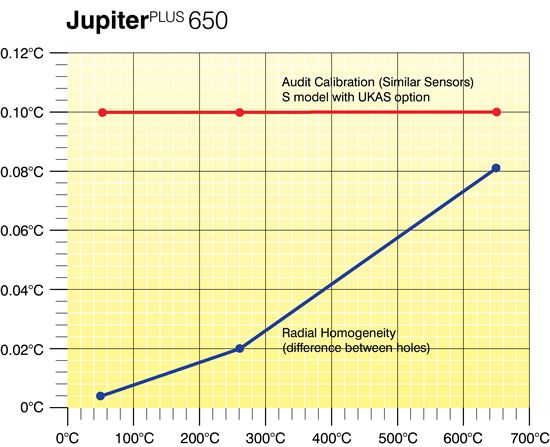

650 Jupiter graphe

General specifications

Size 302 x 176 x 262 mm
Weight 8.5 kg
Display Resolution: 0.01 to 99.99 and 0.1 to 100.0 / 650.0

Units: °C, °F, K

Power supply 100 / 120 V (50/60 Hz) or 200 / 240 V (50/60 Hz)
500 Watts
Communication ports RS 232

Instrument:

JUPITER 650 B      Portable dry block calibrator – Basic model

Delivered in standard with:

  • Standard insert with holes of diameter: 2x 4.5 mm / 2x 6.4 mm / 1x 8 mm / 1x 9.5 mm, depth: 157 mm
  • Cal Notepad software
  • Serial communication cable
  • User manual
  • Traceable certificate

JUPITER 650 S      Portable dry block calibrator – On Site model

Delivered in standard with:

  • Standard insert with holes of diameter: 2x 4.5 mm / 2x 6.4 mm / 1x 8 mm / 1x 9.5 mm, depth: 157 mm
  • Cal Notepad software
  • Serial communication cable
  • User manual
  • Traceable certificate
  • Built-in digital indicator
  • Connector for probe 935-14-72/DB

Metal block bath:

852-07-11               Additional standard insert of diameter: 2x 4.5 mm / 2x 6.4 mm / 1x 8 mm / 1x 9.5 mm

                            Depth: 157 mm

852-07-07               Blank insert

852-07-07c             Non-standard insert

852-09-03               Alternative insert type B

                            Hole diameter: 1x 13 mm / 1x 10 mm / 1x 8 mm / 1x 5 mm / 1x 3.5 mm

                            Depth: 140 mm

852-09-04               Alternative insert type C

                            Hole diameter: 1 x 8 mm, 6 x 6.5 mm holes x 140 mm deep

                            Depth: 140 mm

935-14-72/DB         Semi standard platinum resistance thermometer Pt100

UKAS                    5 point comparison calibration

Blackbody source:

852-09-05               Blackbody target kit

                            Includes a Blackbody target and reference probe 935-14-49

Surface sensor calibrator:

852-07-15               Surface sensor calibrator kit with insert and reference probe 935-14-49

Other accessories:

853-04-02               Rapid air cooling

935-14-49               Replacement sensor for surface sensor calibration and Blackbody probe

852-07-14               Replacement surface sensor insert

852-09-02               Spare insulation pack for Blackbody source

931-22-64               Carrying case

Packing information:

Size                       302 x 176 x 262 mm

Weight without packing   8.5 kg

Product Description Release Type
CalNotePad

Data management software

3.10 zip
