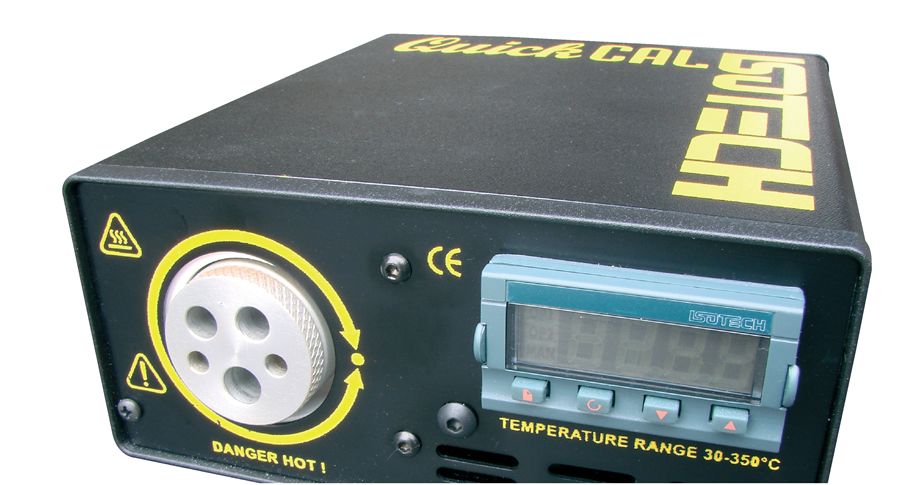

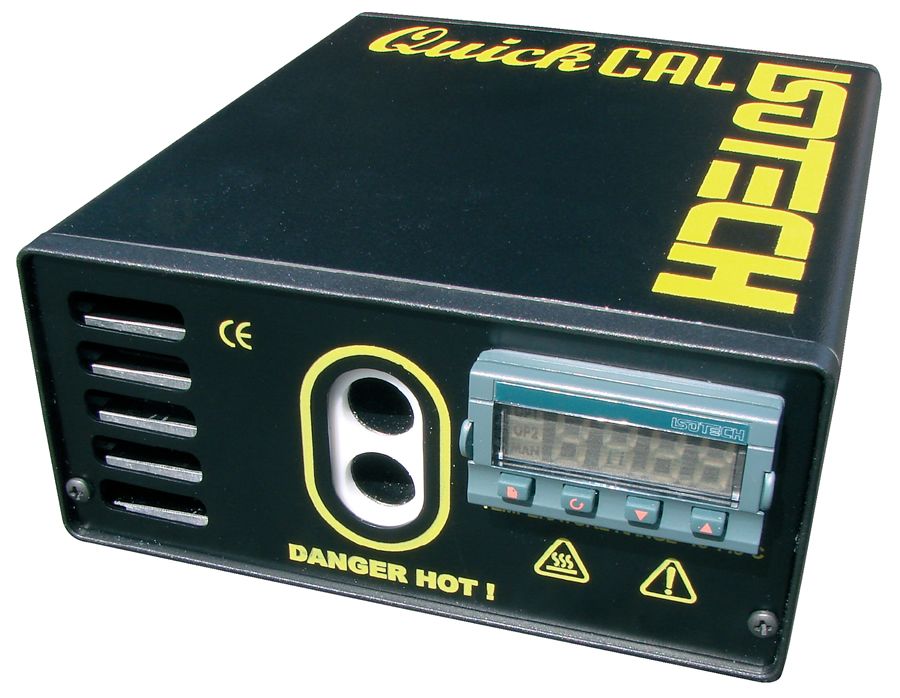

Quick-Cal 550

picto fleche Cost-effective compact and fast dry block, 30°C (Tamb 20°C) to 350°C

The low temperature Quick-Cal 550 covers the temperature range of 30°C to 350°C (in ambient of 20°C). Quick-Cal 550 tester is idealy suited to the less exacting applications where our larger, better specified baths are unnecessary, which makes it perfect for the medical, sterilization and food industries.

Ask a question
Get a call

The low temperature Quick-Cal 550 covers the temperature range of 30°C to 350°C (in ambient of 20°C). Quick-Cal 550 tester is idealy suited to the less exacting applications where our larger, better specified baths are unnecessary, which makes it perfect for the medical, sterilization and food industries.

It has interchangeable inserts, so you don’t have to buy another calibrator each time you find a new diameter sensor to calibrate.

The high temperature Quick-Cal 550 has a single larger well and interchangeable inserts, 25 mm diameter by 120 mm deep. Blank and other special drillings are available upon request. The Quick-Cal 550 is supplied by 100 / 130 VAC or 200 / 240 VAC, 50/60 Hz.

Key features:

  • Temperature operation:30ºC (Tamb 20ºC) to 350°C
  • Fast and compact
Temperature range 30°C (Tamb 20°C) à to350°C
Resolution 0.1°C
Accuracy :
Comparison calibration
Against display temperature with a single probe in the 4.5 mm sleeve:
< 100°C
> 100°C
±0.1°C to ±0.4°C±0.4°C
±1.5°C
Stability ±0.05°C
Heating time Tamb to 350°C: 9 min
Additional time for best stability 5 min
Calibration volume 25 x 120 mm depth

General specifications

Size 65 x 152 x 175 mm
Weight 1.5 kg
Power supply 100 / 130 V or 200 / 240 VAC, 50/60 Hz
Communication ports RS 232

Instrument:

Quick-Cal 550-1      Compact quick calibration dry block, 30°C to 350°C

Delivered in standard with:

  • Standard insert of 5 holes of diameter: 1x 8 / 2x 6.5 / 2x 4.5 mm, depth: 115 mm
  • User manual
  • Traceable certificate

Accessories:

550-06-01a             Standard insert of 5 holes of diameter: 1x 8 / 2x 6.5 / 2x 4.5 mm

Depth: 115 mm

550-06-01b             Blank insert

550-06-01c             Non-standard insert

935-14-98               Semi standard platinum resistance thermometer Pt100

Temperature range: –50°C to +350°C

UKAS                    5 Point comparison calibration

Other accessories:

931-22-71               Carrying case

Packing information:

Size                       65 x 152 x 175 mm

Weight without packing   1.5 kg
