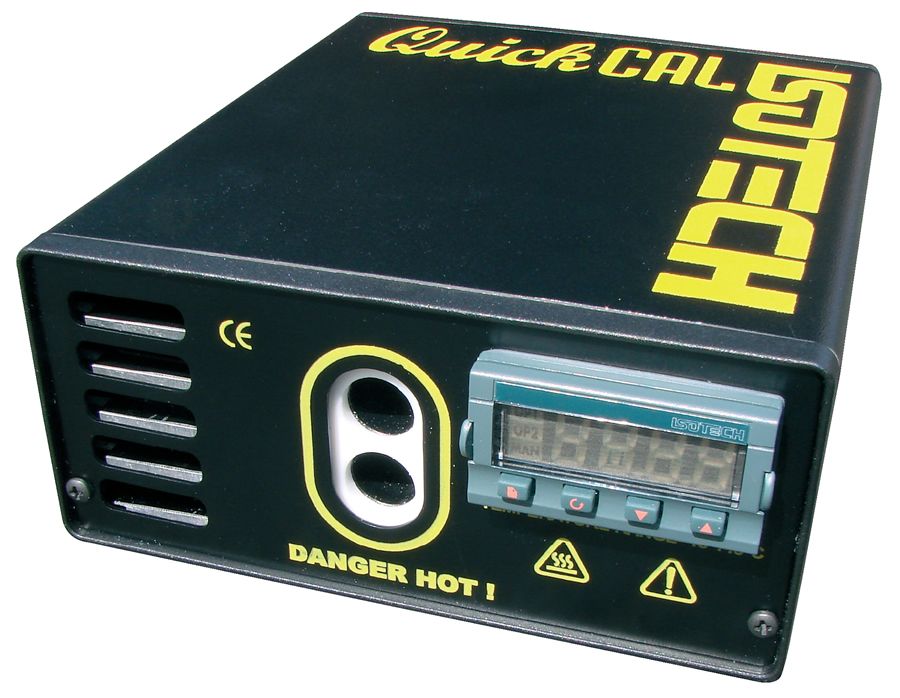

Quick-Cal 560

picto fleche Cost-effective compact and fast dry block, -12°C (Tamb 20°C) to 140°C – Single probe calibration

The low temperature Quick-Cal 560 covers the temperature range of -12°C to 140°C (in ambient of 20°C). Quick-Cal 560 tester is idealy suited to the less exacting applications where our larger, better specified baths are unnecessary, which makes it perfect for the medical, sterilization and food industries.

Ask a question
Get a call

The low temperature Quick-Cal 560 covers the temperature range of -12°C to 140°C (in ambient of 20°C). Quick-Cal 560 tester is idealy suited to the less exacting applications where our larger, better specified baths are unnecessary, which makes it perfect for the medical, sterilization and food industries.

It has interchangeable inserts, so you don’t have to buy another calibrator each time you find a new diameter sensor to calibrate. The low temperature Quick-Cal 560 is particularly exciting since it can work from a small 12 V battery, making it truly portable, alternatively a mains supply is available with 100 / 240 V, 50/60 Hz input.

The dry block comes complete with two inserts, one blank and one drilled 6.8 mm diameter 120 mm deep. Alternatively, we can provide pre-drilled inserts to suit your specific needs. Each calibration well is 13 mm diameter and 120 mm deep.

Key features:

  • Low temperature operation: -12ºC (Tamb 20ºC) to 140°C
  • Fast and compact
Temperature range-12°C (Tamb 20°C) to +140°C
Resolution0.1°C
Accuracy :
Comparison calibration
Against display temperature with a single probe in the 6.8 mm sleeve
±0.1°C to ±0.4°C
±0.4°C
Stability±0.05°C
Heating time0°C to 100°C: 9 min
Additional time for best stability5 min
Calibration volumeTwo pockets of: 13 mm x 120 mm depth

General specifications

Size65 x 152 x 175 mm
Weight1.5 kg
Power supplySwitch mode between 15 VDC or 100 / 240 VAC, 50/60 Hz

Instrument:

Quick-Cal 560-1      Cost-effective compact and fast dry block, -12°C (Tamb 20°C) to 140°C

Delivered in standard with:

  • Standard sleeve of 1x 6.8 mm x 120 mm deep
  • Blank sleeve
  • User manual
  • Traceable certificate

Quick-Cal 560-2      Cost-effective compact and fast dry block, -12°C (Tamb 20°C) to 140°C

Delivered in standard with:

  • Standard sleeve of 1x 6.8 mm x 120 mm deep
  • Blank sleeve
  • User manual
  • Traceable certificate

Accessories:

560-06-01a             Additional standard sleeve

560-06-01b             Blank sleeve

560-06-01c             Non-standard sleeve

935-14-98               Semi standard platinum resistance thermometer Pt100

                            Temperature range: –50°C to +350°C

UKAS                    5 Point comparison calibration

Other accessories:

931-22-71               Carrying case

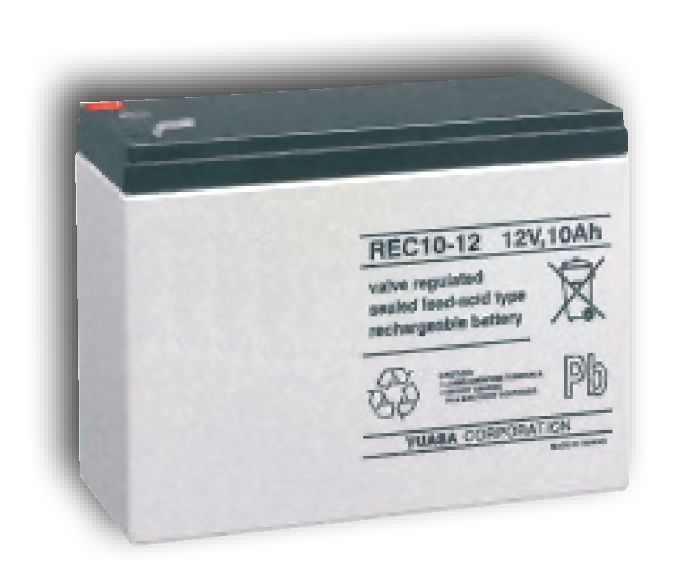

935-42-14               Rechargeable battery

935-42-19               Battery charger (220 / 240 V – 50/60 Hz)

935-42-22               Battery charger (110 / 120 V – 50/60 Hz)

Packing information:

Size                       65 x 152 x 175 mm

Weight without packing   1.5 kg

ProductDescriptionReleaseType
CalNotePad

Data management software

3.10zip
