3 input potentiometerMeasurement range: 1KOhm to 65 KOhm
Range : 100m to 1km
Certification : CE

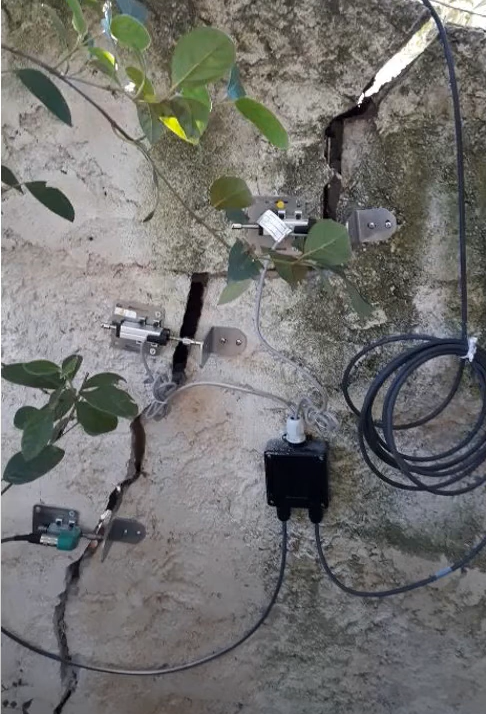

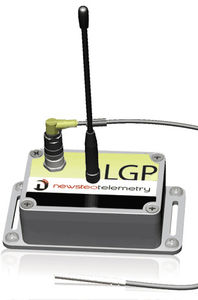

The LGP33 is a recorder with a 3-input potentiometer interface, which can be used in two different modes:
Monitoring mode: measurements are sent in real time to the receiver, for real-time monitoring. If the measurement is not received by the receiver (key not plugged in, PC switched off, RF-Monitor not launched, communication problem, etc.), whether using an RF-toUSB key or a Gateway, the data logger stores the measurement in its buffer memory. As soon as communication is restored, the buffer measurements are automatically sent by the data logger to the receiver.
Record mode (a-posteriori monitoring): the measurements are stored in the data logger's memory. When the user gives the order by radio, the measurements are downloaded. This mode is used for measurement campaigns without instant transmission, with downloading via the RF Monitor software.
It is equipped with :
IP65 enclosure (Aluminium)
½ wave antenna
Power supply AA Lithium Thionyl battery
|
LGP33 |
|
| Type | Potentiometric
From Rp = 1kOhms to 10kOhms : linear transfer function From Rp = 10kOhms to 650kOhms : complex transfer function The transfer functions are integrated into RF Monitor and can be ported to another data reception tool |
| Number of channels | 3 multiplexed inputs (inter-channel delay : 150 ms), cannot be disabled, common power supply. |
| Measuring measurement | From 1kOhm to 650kOhm (for each channel) |
| Accuracy | Cumulative error 1LSB max like ±3 x 10 – 3% (using Newsteo transfer functions) |
| Resolution | 1LSB (corresponds to the full scale of the sensor divided by 32768) |
| Responses time | 0.15s / sensor
Maximum measurement speed : 1s |
| Other sensor | Temperature sensor integrated on the electronic board |
| Operating temperature | -40°C… +85°C |
| IP level of data logger and connector | IP65
The tightness level of the product is only valid if the probe and antenna are correctly tightned (crushed joints) |
| Battery | AA Lithium Thionyl battery (included) with plug-in connector |
| Autonomy | >2 years at 25°C with a measurement frequency of 10 minutes. Average value may vary slightly depending on use, given with the product operating in non-alert mode. |
| Measurement frequency | Can be set from 1 second to 4 hours |
| RF antenna connector | SMA connector |
| Antenna | ½ wave antenna supplied |
| RF range | 100m to 1km (depending on the antenna used on the receiving side) |
| Memory size | 10 700 measurements with date and time
That’s one measurement every 10 minutes : memory autonomy of 74 days |
| Time and date resolution | 1s |
| Time deviation | +/- 2min/month at 25°C |
| Flash lifetime | Up to 100 000 cycles (100 years with one measurement per second) |
| ILS | Integrated ILS for various functions :
- Product wake-up when placed in hibernate mode (depp slepp) - Forced measurement outside the set measurement frequency |
