LOG36-00X

picto fleche Temperature Sensor

  • Measuring range : -40°C… +85°C
  • Precision : ± 0.3°C

Certifications : CE, EN12830

Ask a question
Get a call

The LOG36-001 is a wireless temperature sensor that can be used in 2 modes:

Monitoring (real-time monitoring applications): the data logger sends its measurements to a PC or gateway in real time. If a measurement is not received, it stores it in its internal memory and sends it to the receiver during the next transmission.

Recording (delayed data transmission): the data logger records the measurements it takes in its on-board memory. The user can download all the stored measurements to the PC at any time, by sending a command by radio.

It is also equipped with :

  • IP65 enclosure
  • ½ wave antenna (up to 900 metres range)
  • AA battery power supply (supplied)

LOG36-004 :

Same as LOG36-001 + fixing plate attached to box

LOG36-005 :

Same as LOG36-004 + High Autonomy pack: 2 batteries (up to 4 years autonomy)

LOG36
Type High Temperature Precision
Sensor Internal sensor
Measuring range -40°C… +85°C
Resolution 0.1°C
Accuracy ±0.3°C (-30°C… +70°C)

±1°C (-40°C…-30°C ; +70°C…+85°C)
Response time ≤ 10 min
Sensor drift Excellent long-term stability
Battery AA lithium Thionyl with JST connector
Autonomy (25°C) Up to 3 years at 25°C on a frequency of 10 min
RF connector SMA connector
Antenna Wave antenna
Radio range Up to 900 meters



LED No LED
Memory capacity 32.256 time-stamped measurements
Logging interval From 1s to 4 hours
Internal clock drift +/- 2min/month @25°C
Backup time Time retained as long as the product is powered by the battery

Time kept for 3 min if the battery is remored (if battery level = 3.6V)

Time retained for 1 min if the battery is removed (if battery level = 2.2V)

Hour lost if battery is less than 2V
Flash memory lifespan Up to 100.000 cycles
ILS Integrated ILS for multiple functions :

-            Waking up the product in hibernation mode

-            Taking a measurement outside the measurement frequency



Specificities :

  • Aluminium (4mm)
  • Without antenna

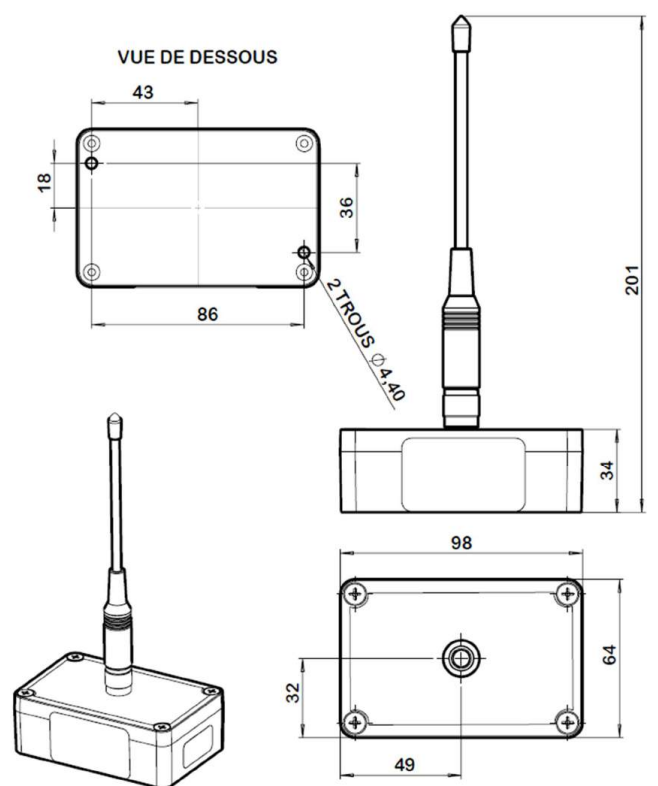

Dimensions (without antenna)
Length 98 mm
Width 64 mm
Height 34 mm
Weight 250 g
Product identifications 2 stickers on the product :

-            1 on the upper side (giving the product range)

-            1 on the side (giving the reference and serial number of the product)
