LOG87-001

picto fleche Temperature Sensor

Measuring range (Temperature) : -40°C … +70°C


Accuracy (Temperature) :
± 0.20°C [0°C…70°C]
± 0.30°C over the rest of the range


Measuring range (Humidity): 0…100% RH


Accuracy (Humidity) :
±3% HR [0…85% HR]
±4% HR [85…95% HR]


Certification : CE

Ask a question
Get a call

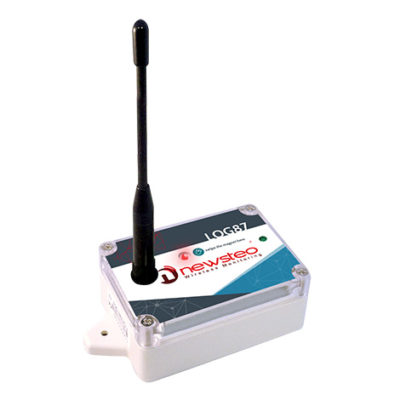

The LOG87 is a temperature and humidity sensor with the following operating modes:

Monitoring mode: measurements are sent in real time to the receiver, for real-time
real-time monitoring. If the measurement is not received by the receiver (key not plugged in, PC
PC switched off, RF-Monitor not started, communication problem, etc.), the data logger records the
measurement in its buffer memory. As soon as communication is restored, the measurements
measurements are automatically sent by the data logger to the PC.

It is also equipped with :

IP52 enclosure
½ wave antenna
Power supply Lithium Thionyl battery

Translated with DeepL.com (free version)

LOG87
Type Temperature and Humidity
Sensors range Temperature : -40°C… +70°C

Relative humidity : 0 … 100% RH
Operating temperature -40°C … +70°C
Temperature Accuracy ± 0.20°C (0°C… 70°C)

± 0.30°C rest of the range
Temp resolution 0.016°C
Humidity range 0… 100%RH
Humidity Accuracy at 25°C ±3% RH (0…85%RH)

±4% RH (85…95%RH)
Humidity Resolution 0.03% RH



Battery Lithium thionyl chloride battery 3.6V

A size with wires
Autonomy Up t 5 years
Battery change Battery accessible and replaceable by the user



Antenna RF connector SMA connector
Antenna ½ wave antenna (included)
RF range in free land Up to 1km (depending on the antenna used on the reception side)
LED 1 bi-color LED
Memory Capacity 32 256 measurements with date and time
Time resolution 1s
Time deviation +/- 2min/month at 25°C
Time retention Time kept as long as the product is powered (Hibernate mode included)
Data memory retention 100 years
Flash life time Up to 100 00 cycles (meaning 100 years is a measure is done every second)
ILS ILS integrated several functions :

-          Wakeup of the product in hibernal mode

-          Take of a measure outside of the frequency measure set
