Rayomatic 16

picto fleche Miniature 8-14 µm process infrared thermometer with optional high-ambient sensing head and touch screen

IRtec Rayomatic 16 series is a miniature process infrared thermometer with separate electronics modules measuring from -20°C to 1000°C according to the different models.

The sensing head of JA and HA models withstands ambient temperatures up to 120°C and 180°C without cooling.

  • 8 to 14 µm
  • Miniature sensing head and configurable electronics module
  • Optional touch screen for temperature indication and configuration
  • Optional IP65 sensing heads withstanding up to 120°C or 180°C without cooling
  • Optional datalogging to MicroSD
  • Sensing head cable resistant to interference from movement
  • 4-20 mA, RS485 Modbus or 24 V alarm relay outputs in option
  • MIN / MAX / AVG values, peak / valley hold
Ask a question
Get a call

IRtec Rayomatic 16 Series is a range of miniature non-contact infrared temperature sensors with separate electronics modules measuring from -20°C to 1000°C.

All models have an adjustable emissivity setting and are capable of measuring a wide variety of target materials, including food, paper, textiles, plastics, leather, tobacco, pharmaceuticals, chemicals, rubber, coal and asphalt.

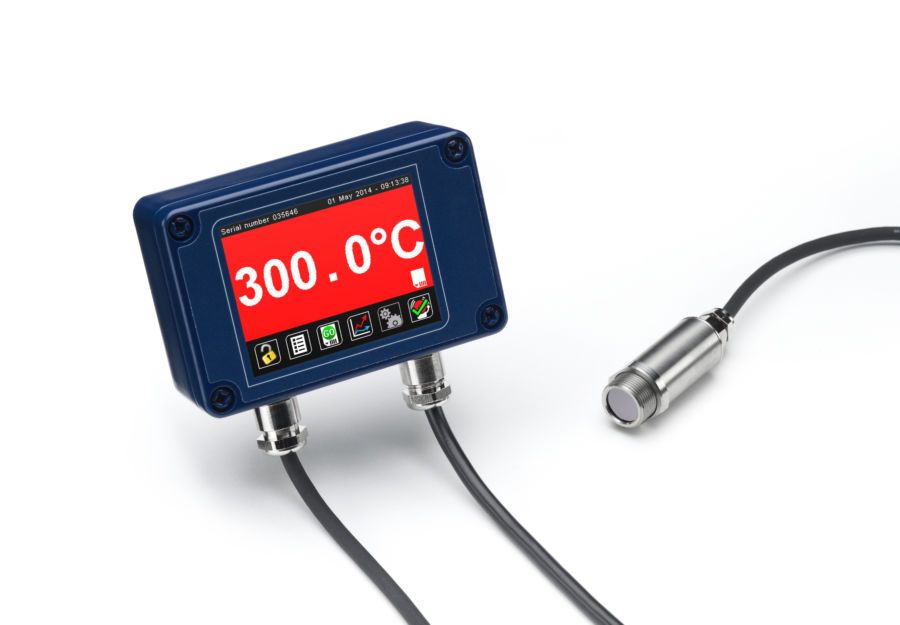

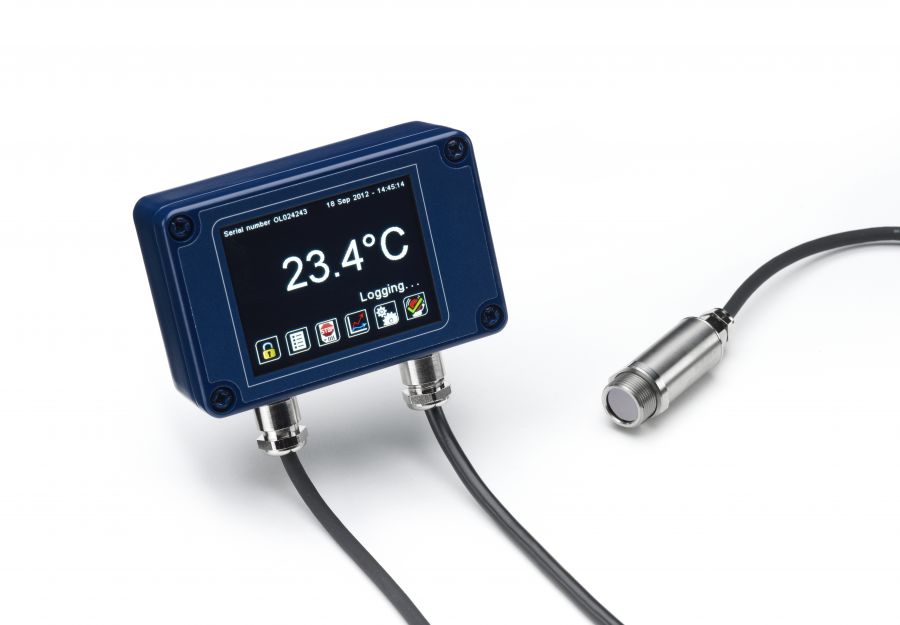

The optional touch screen interface provides temperature indication, alarms, sensor configuration and data logging to MicroSD Card. The optional high-temperature sensing head may be used in ambient temperatures of up to 180°C without cooling. The low-noise cable on high ambient temperature models is resistant to interference from movement, so it is ideal for mounting on moving objects such as robot arms.

A choice of optics are available to measure small or large targets at short or long distances, and there is a choice of 4-20 mA, RS485 Modbus and alarm relay outputs.

  • 8 to 14 µm
  • Miniature sensing head and configurable electronics module
  • Optional touch screen for temperature indication and configuration
  • Optional IP65 sensing heads withstanding up to 120°C or 180°C without cooling
  • Optional datalogging to MicroSD
  • Sensing head cable resistant to interference from movement
  • 4-20 mA, RS485 Modbus or 24 V alarm relay outputs in option
  • MIN / MAX / AVG values, peak / valley hold

Infrared temperature measurement

ModelLTMTHTXTCT
Temperature range-20 to 100°C0 to 250°C0 to 500°C0 to 1000°C-20 to 1000°C configurable
Spectral response8 - 14 µm
EmissivityAdjustable from 0.2 to 1.0
Accuracy±1% RDG or 1°C
Repeatability±0.5% RDG or 0.5°C
Response time240 ms (90%)

Optics

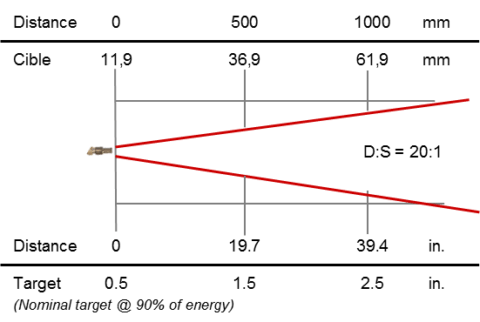

Rayomatic 16_Optics 2-1Rayomatic 16_Optics 15-1
Rayomatic 16_Optics 20-1Rayomatic 16_Optics 30-1

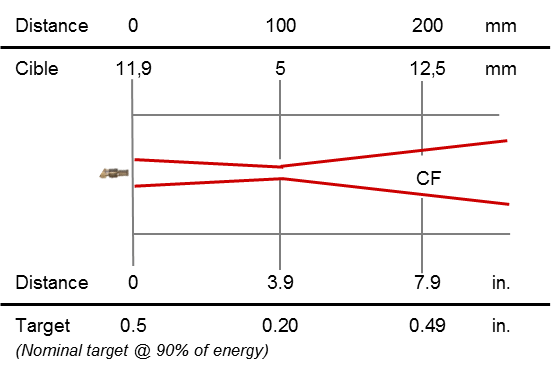

 Rayomatic 16_Optics CF

Further features

DataloggingRayomatic 16 models -CRT and -BRT include a MicroSD card slot for data logging, which can be configured via the touch screen interface. The user can select the sample rate and the number of samples to be taken and schedule the data logging to start at a certain time.
With a 2 GB card, the user can store 28.4 million readings. Data is stored on the MicroSD card in .csv format and can be viewed and edited easily using spreadsheet software.
Readings are time and date stamped using the sensor’s internal clock.
AlarmsIn alarm conditions, the display changes colour to provide an immediate and obvious alarm indication. Alarm modes and levels can be configured via the touch screen.

General specifications

Size L x l x hElectronic module: 98 x 64 x 36 mm
Sensing head: Ø 18 x 45 mm
Thread mounting: M16 x 1 mm
Weight390 g with cable
MaterialsHead: IP65 stainless steel
Electronic module: Die-cast aluminium
Touch screenResistive touch TFT 2.83", 320x240 px
Power supply24 VDC, 100 mA max
Loop impedance900 Ω Max

Environmental specifications

Reference conditions0°C to +70°C (95% non-condensing)
Environmental ratingIP65



Instrument:

Ordering code structure: 16-AA-BB-CC-DDD-E/MAN

Please select the required options from tables A, B… below to define the right device reference.

16                 Rayomatic 16

Delivered in standard with:

  • Instruction manual in English

Table AA        Sensing head operating range

MA                  Sensing head 0 - 60°C

JA                   Sensing head 0 - 120°C (20:1 optics only)

HA                  Sensing head 0 - 180°C (20:1 optics only)

Table BB        Optics - Distance to target

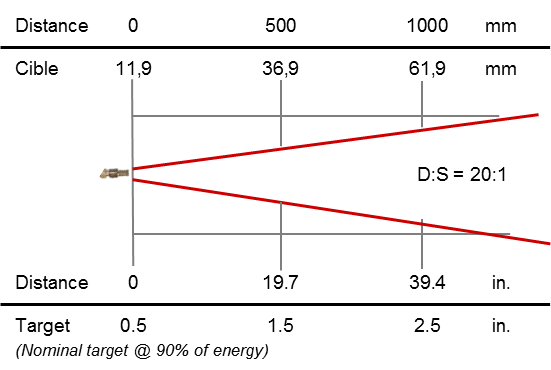

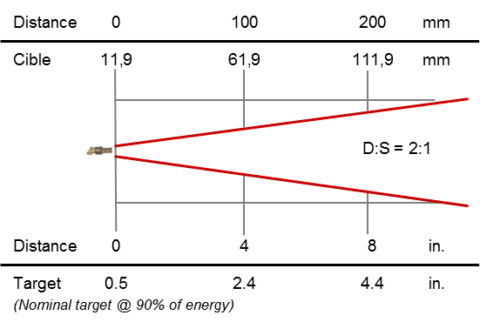

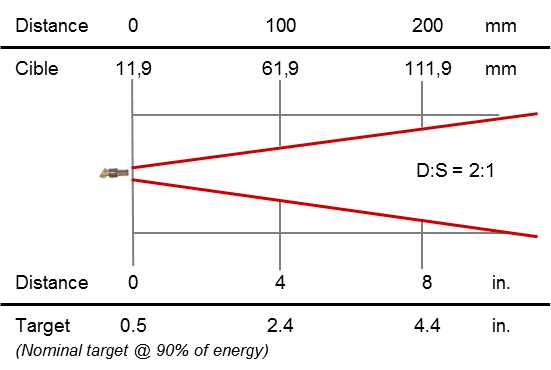

2                     Optics 2:1, 61.9 mm @ 100 mm

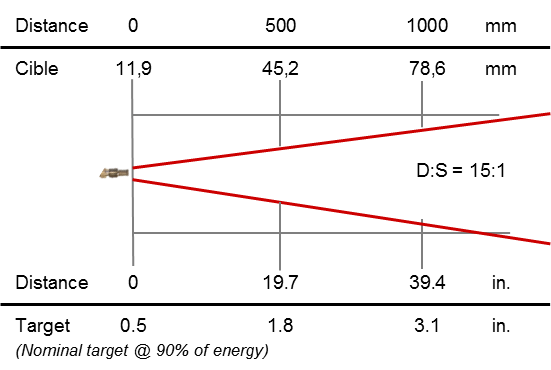

15                   Optics 15:1, 45.2 mm @ 500 mm

20                   Optics 20:1, 36.9 mm @ 500 mm

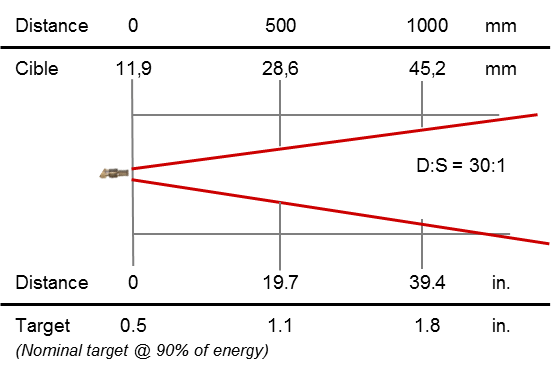

30                   Optics 30:1, 28.6 mm @ 500 mm

CF                  Close focus lens, 5 mm @ 100 mm

Table CC        Temperature range

LT                  -20°C – 100°C

MT                  0 – 250°C

HT                  0 – 500°C

XT                  0 – 1000°C

CT                  -20 – 1000°C configurable (-CRT, -BB, -BRT models only)

Table DDD     Outputs

CB                  4-20 mA output, no screen

CRT                CB option + 2 alarm relay outputs, with touchscreen

BB                   RS485 Modbus output, no screen

BRT                 BB option + 2 alarm relay outputs, with touchscreen

Table E           Calibration certificate

0                      None

1                      Factory traceable calibration certificate with data

Accessories:

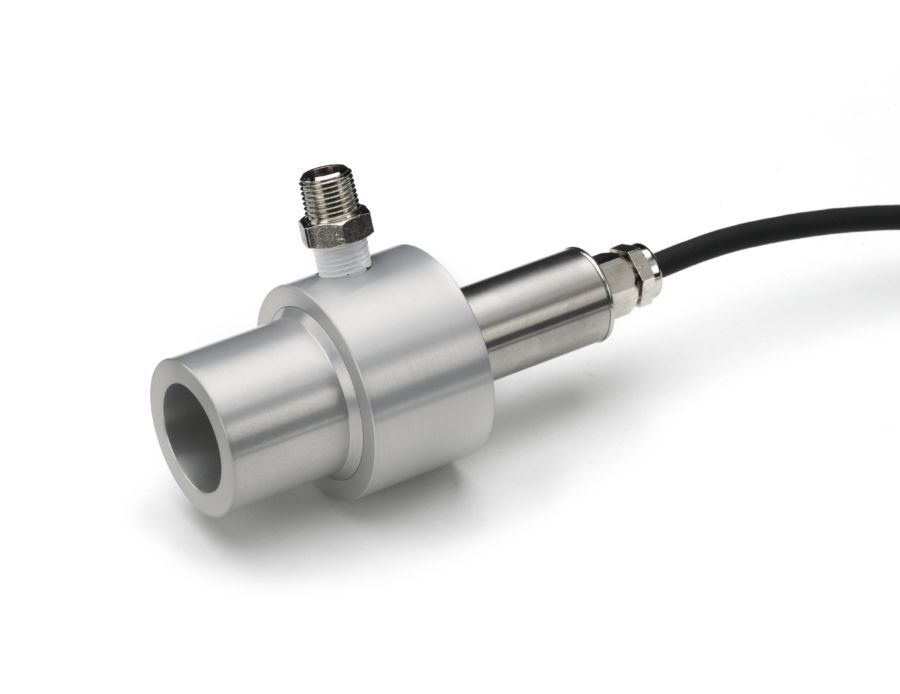

Digimax 180     6-channel touch screen hub for -BB, -BRT and NET models

MSD                  2GB MicroSD Card with SD Card adapter (-BRT and -CRT models) for storage and transfer of logged data

FBS                  Fixed mounting bracket for compact sensors

ABS                  Adjustable mounting bracket for compact sensors

APSW               Air purge collar for compact 2:1 sensors

APSN                Air purge collar for compact 15:1, 30:1 and close-focus sensors

LSTS                 Laser sighting tool for compact sensors

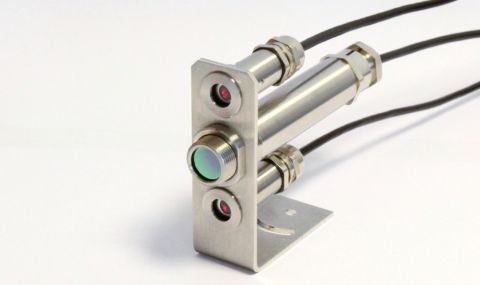

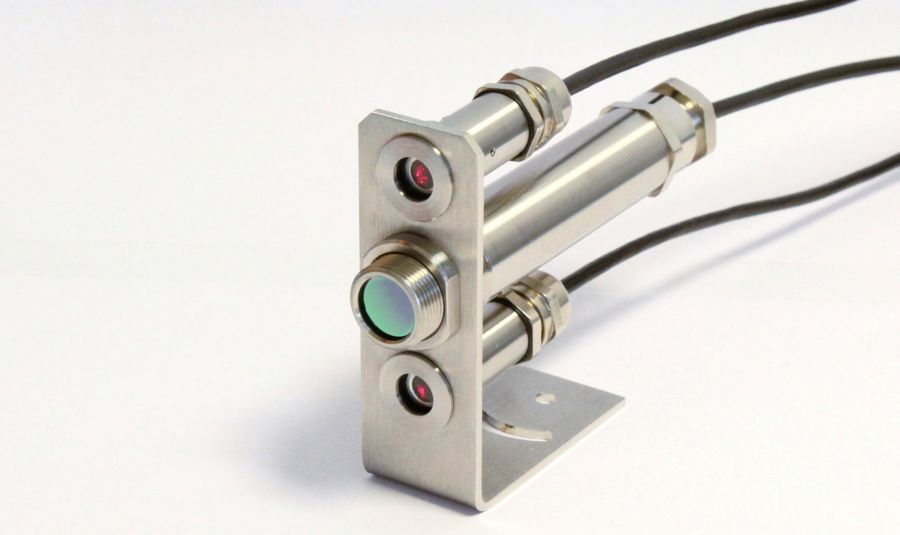

DLSBFS            Dual laser sighting bracket, fixed, for compact sensors

DLSBAS            Dual laser sighting bracket, adjustable, for compact sensors

DLSBCE            Extended cable for Dual Laser Sighting Bracket - 1 m

PWS                  Protective plastic window in stainless steel holder (8-14 µm model only)

PMCE                Extended sensing head cable (-MA model), 1 m, up to 29 m extension

PMCEHT           Extended sensing head cable, high temperature (-HA and -JA models), 1 m, up to 29 m extension

CALCERT A      Calibration certificate

CALCERT B      Re-calibration and certificate

MBAC                Change of Modbus address in factory (Sensors are supplied with Modbus address 1 as standard). Please specify the required Modbus address for each sensor at the time of ordering.

ProductDescriptionReleaseType
Rayomatic 16

Datasheet

V.02pdf
Rayomatic 16

Instruction manual

30/2014pdf
