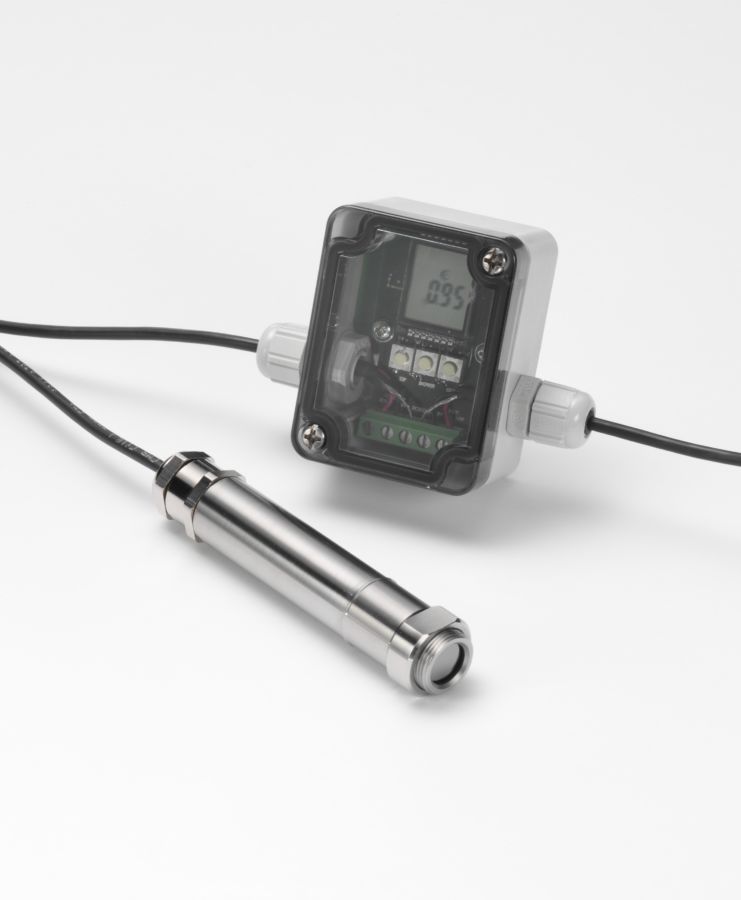

8-14 µm infrared process sensor, DigiMax option for manual adjustment of emissivity
8-14 µm infrared process sensor, 4-20 mA input for emissivity setting
8-14 µm infrared process sensor, DigiMax option for manual adjustment of emissivity
8-14 µm infrared process sensor, 4-20 mA input for emissivity setting
Rayomatic PE (9) - AOIP, Instrumentation de test et mesure, contrôle moteur
Rayomatic PE (10) - AOIP, Instrumentation de test et mesure, contrôle moteur
Rayomatic PE (11) - AOIP, Instrumentation de test et mesure, contrôle moteur
Rayomatic PE (12) - AOIP, Instrumentation de test et mesure, contrôle moteur

Rayomatic PE

picto fleche 8-14 µm infrared process sensor with controllable emissivity accross 4-20 mA input

IRtec Rayomatic PE infrared process sensor measures temperatures from -20°C to 500°C. It provides a 4-20 mA input for emissivity setting and a linear 4-20 mA output.

  • 8 to 14 µm
  • 2-wire 4-20 mA output
  • 4-20 mA input to control emissivity setting from 0.2 to 1.0
  • 2:1, 15:1, 30:1 and CF optics
  • IP65 stainless steel housing
Ask a question
Get a call

IRtec Rayomatic PE infrared process sensor measures temperatures from -20°C to 500°C. It provides a 4-20 mA input for emissivity setting and a linear 4-20 mA output. This output signal is compatible with almost any indicator, controller, recorder, data logger etc., without the need for special interfacing or signal conditioning.

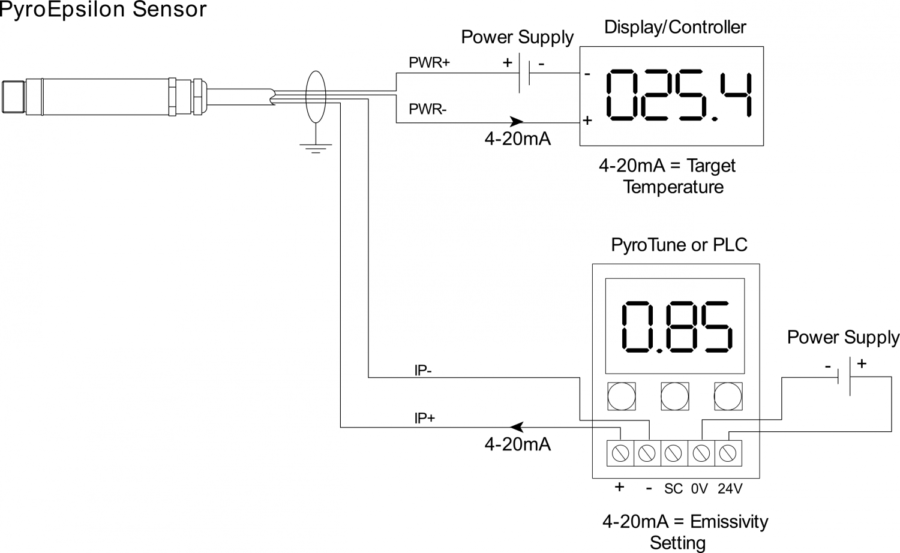

The sensors emissivity setting can be adjusted from 0.2 to 1.0 to cope with different target materials and is controlled by a 4-20 mA input. This gives the opportunity to adjust the emissivity setting automatically from a programmable logic controller (PLC).

Alternatively the emissivity setting can be adjusted manually using the optional DigiMax module. If the 4-20 mA input is left open or shortcircuited, the emissivity setting defaults to 0.95.

  • 8 to 14 µm
  • 2-wire 4-20 mA output
  • 4-20 mA input to control emissivity setting from 0.2 to 1.0
  • 2:1, 15:1, 30:1 and CF optics
  • IP65 stainless steel housing

Temperature measurement

Model

LT MT HT
Temperature range -20 to 100°C 0 to 250°C 0 to 500°C
Spectral response 8 - 14 µm
Emissivity Adjustable from 0.2 to 1.0 accross 4-20 mA input
Accuracy ±1% RDG or 1°C
Repeatability ±0.5% RDG or 0.5°C
Response time 240 ms (90%)

Optics

Rayomatic PE _Optics 2-1 Rayomatic PE _Optics 15-1
Rayomatic PE _Optics 30-1 Rayomatic PE _Optics CF

Further features

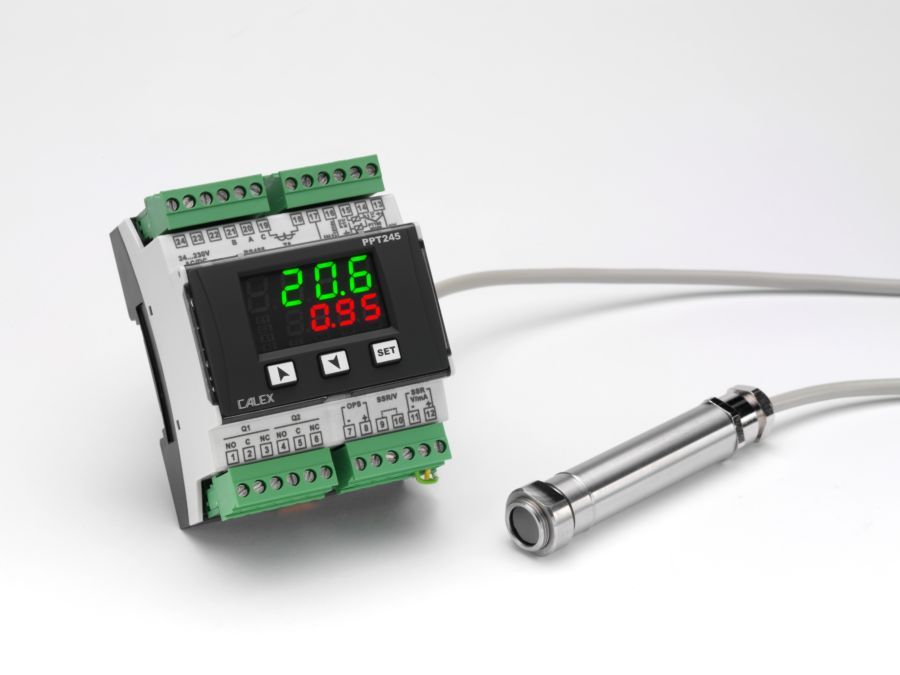

Manual adjustment of emissivity setting Option DigiMax: Manual emissivity adjuster
Output 2 wires, 4-20 mA

General specifications

Size L x l x h Electronic module: Ø 18 x 103 mm
Thread mounting: M16 x 1 mm
Weight 95 g with cable
Construction Stainless steel
Power supply 24 VDC (Max 28 VDC)
Sensor voltage 6 VDC Min
Loop impedance 900 Ω Max (4-20 mA OUT)
Output impedance 56 Ω

Environmental specifications

Reference conditions 0°C to +70°C (95% non-condensing)
Environmental rating IP65



Instrument:

Ordering code structure: PE-AA-BB-CC-D/MAN

Please select the required options from tables A, B… below to define the right device reference.

PE                  Rayomatic PE

Delivered in standard with:

  • Instruction manual

Table AA        Optics - Distance to target

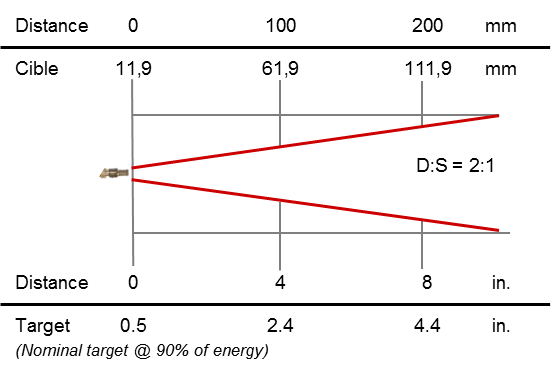

2                     Optics 2:1, 61.9 mm @ 100 mm

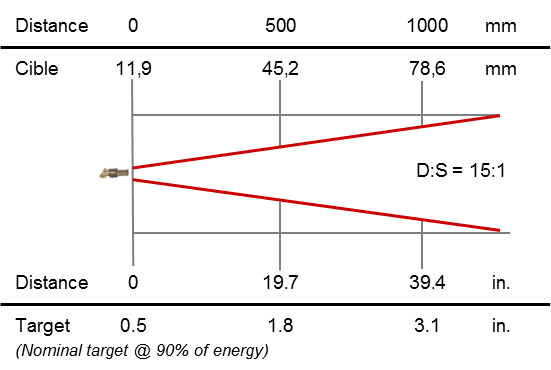

15                   Optics 15:1, 45.2 mm @ 500 mm

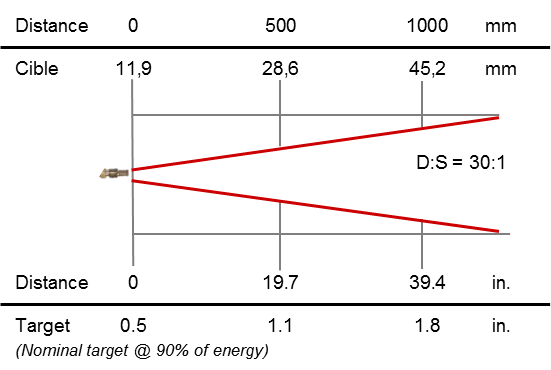

30                   Optics 30:1, 28.6 mm @ 500 mm

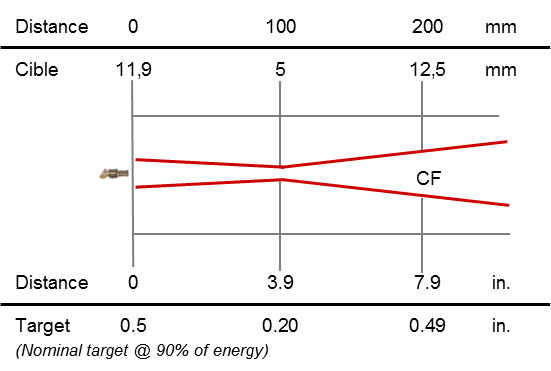

CF                  Close focus lens, 5 mm @ 100 mm

Table BB        Temperature range

LT                   -20°C to 100°C

MT                  0 to 250°C

HT                   0 to 500°C (not for 2:1 optics)

Table CC        Accessories

NO                  None

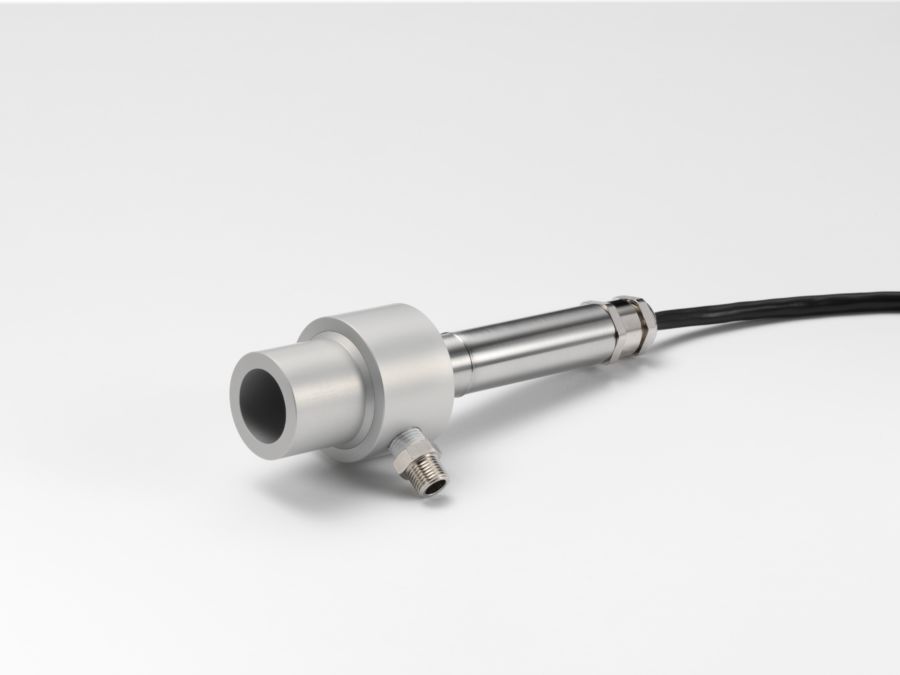

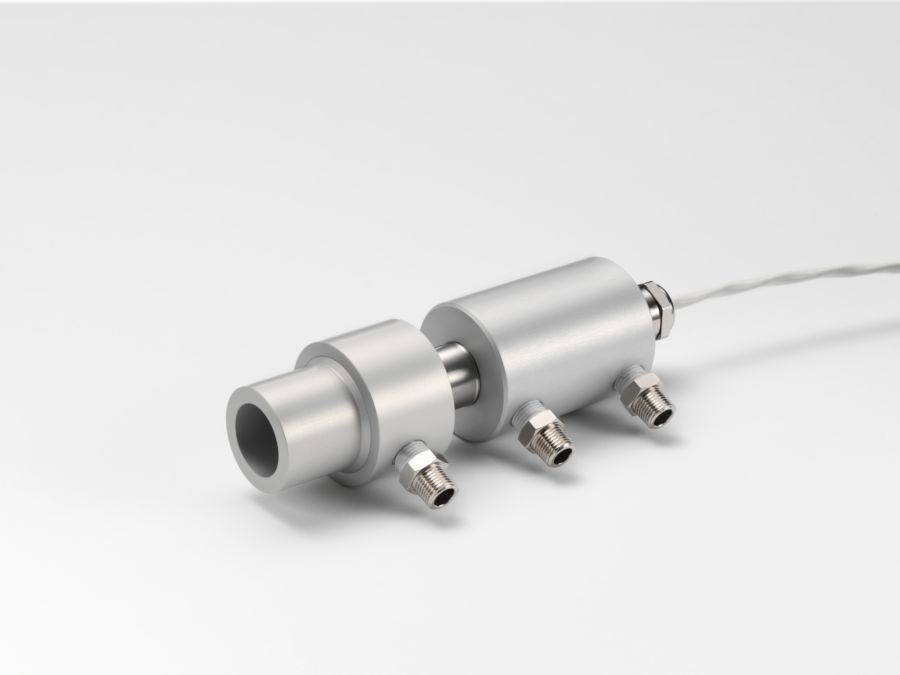

WJ                  Air / Water cooled jacket and air purge collar

Table D           Certificat d’étalonnage

0                      None

1                      Factory traceable calibration certificate with data

Accessories:

DIGIMAX PE    Emissivity adjuster, 24 V DC input, 4-20 mA output

FBS                  Fixed mounting bracket for compact sensors

ABS                  Adjustable mounting bracket for compact sensors

APSW              Air purge collar for compact 2:1 sensors

APSN               Air purge collar for compact 15:1, 30:1 and close-focus sensors

PWS                 Protective plastic window in stainless steel holder

LSTS                Laser sighting tool for compact sensors

DLSBFS           Dual laser sighting bracket, fixed, for compact sensors

DLSBAS           Dual laser sighting bracket, adjustable, for compact sensors

DLSBCE           Extended cable for Dual Laser Sighting Bracket - 1 m

LSTS                 Laser sighting tool for compact sensors

PECE                Extended cable for uncooled RAYOMATIC PE sensor, 1 m, up to 29 m extension

PECEHT           Extended cable, high temperature, for cooled RAYOMATIC PE sensor, 1 m, up to 29 m extension

CALCERT A     Calibration certificate

CALCERT B     Re-calibration and certificate
