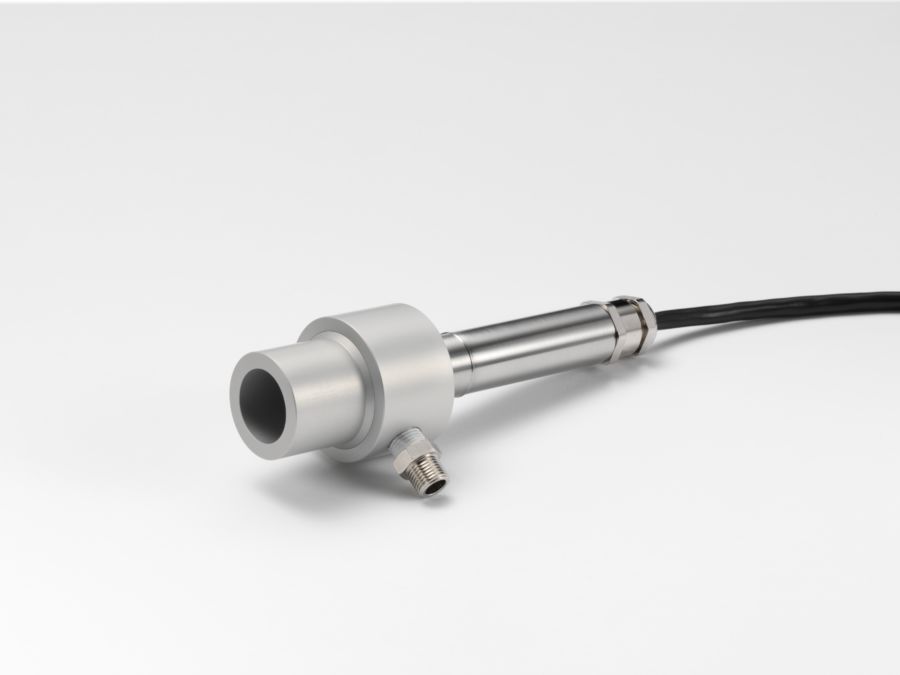

8-14 µm compact infrared sensor, air purge

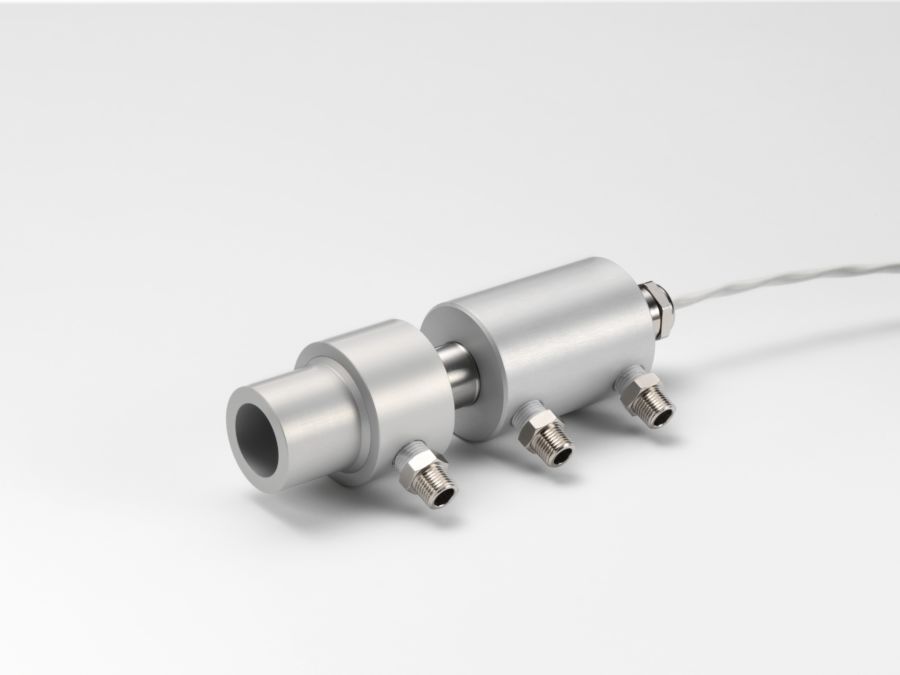

8-14 µm compact infrared sensor, water jacket
Rayomatic TC (10) - AOIP, Instrumentation de test et mesure, contrôle moteur
Rayomatic TC (11) - AOIP, Instrumentation de test et mesure, contrôle moteur

Rayomatic TC

picto fleche 8-14 µm compact infrared sensor with dual target T° & internal T° outputs

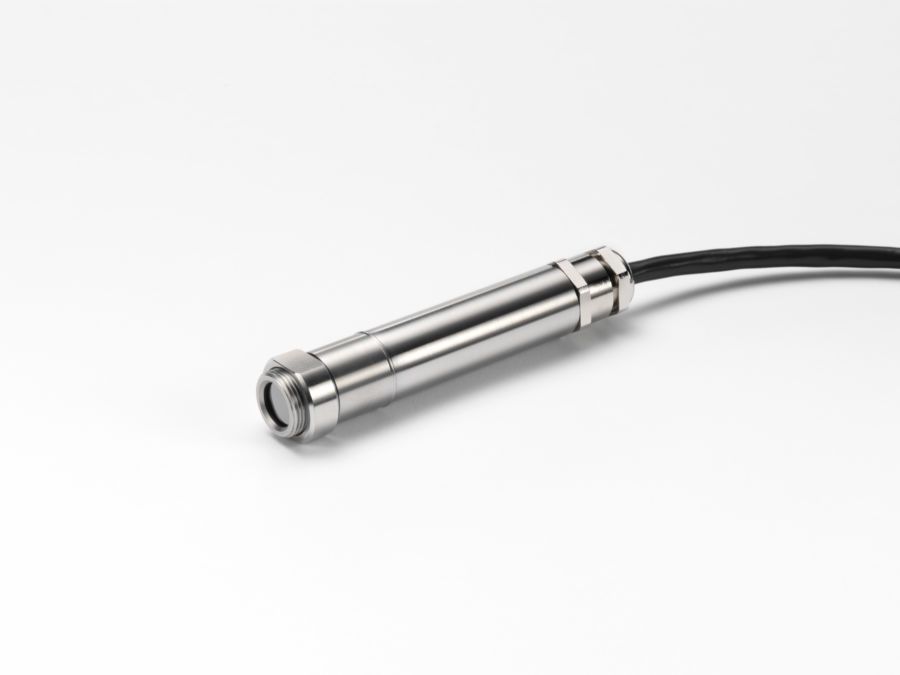

IRtec Rayomatic TC is a high quality, low cost, compact infrared sensor which measures the temperature of inaccessible or moving objects and materials.

The temperature of targets from -20°C to 500°C is accurately and consistently measured, with an outstanding response time of 240 ms.

  • 8 to 14 µm
  • 2-wire 4-20 mA / 4-wire voltage / 4-wire Tc J, K or T outputs / 4-wire voltage low consumption
  • Built-in temperature sensor for 4-wire models
  • Emissivity fixed at 0.95
  • 2:1, 15:1, 30:1 and CF optics
  • IP65 stainless steel housing
Ask a question
Get a call

IRtec Rayomatic TC is a high quality, low cost, compact infrared sensor which measures the temperature of inaccessible or moving objects and materials. The temperature of targets from -20°C to 500°C is accurately and consistently measured, with an outstanding response time of 240 ms.

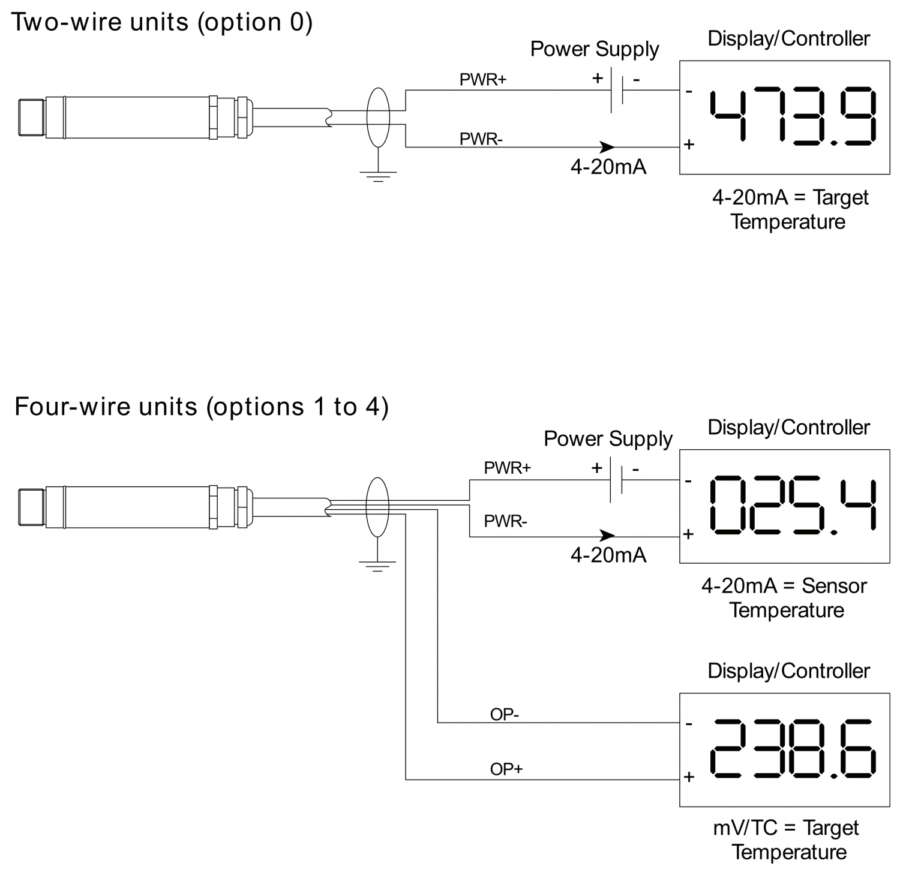

Two-wire models transmit the target temperature as a 4-20 mA output and offer a simple solution for most non-contact temperature measurement applications.

Four-wire models transmit the target temperature as a 0-50 mV or thermocouple output (type J, K or T) plus the internal sensor temperature as a 4-20 mA output. This 2nd output can be used to ensure that the sensor is being operated within the correct ambient temperature limits and prevent damage caused by overheating or overcooling. It can also be used to give an approximate indication of the air temperature surrounding the sensor.

The new 4-wire model with 0-50 mV output has an extremely low 3.2 mA current consumption, so it is ideal for maximum battery life in battery-powered applications.

  • 8 to 14 µm
  • 2-wire 4-20 mA / 4-wire voltage / 4-wire Tc J, K or T outputs / 4-wire voltage low consumption
  • Built-in temperature sensor for 4-wire models
  • Emissivity fixed at 0.95
  • 2:1, 15:1, 30:1 and CF optics
  • IP65 stainless steel housing

Temperature measurement

Model LT MT HT
Temperature range -20 to 100°C 0 to 250°C 0 to 500°C
Spectral response 8 - 14 µm
Emissivity Fixed at 0.95
Accuracy ±1% RDG or 1°C
Repeatability ±0.5% RDG or 0.5°C
Response time 240 ms (90%)

Optics

Rayomatic TC_Optics 2-1 Rayomatic TC_Optics 15-1
Rayomatic TC_Optics 30-1 Rayomatic TC_Optics CF

Further features

Outputs 2 wires, 4-20 mA
4 wires, 0-50 mV (target T°), 4-20 mA (sensor T°)
4 wires, Tc T (target T°), 4-20 mA (sensor T°)
4 wires, Tc J (target T°), 4-20 mA (sensor T°)
4 wires, Tc K (target T°), 4-20 mA (sensor T°)
4 wires, 0-50 mV (target T°), low consumption

General specifications

Size L x l x h Electronic module: Ø 18 x 103 mm
Thread mounting: M16 x 1 mm
Weight 95 g with cable
Construction Stainless steel
Power supply 24 VDC (Max 28 VDC)
Sensor voltage 6 VDC Min
Loop impedance 900 Ω Max (4-20 mA OUT)
Output impedance 56 Ω (mV / Tc OUT)

Environmental specifications

Reference conditions 0°C to +70°C (95% non-condensing)
Environmental rating IP65



Instrument:

Ordering code structure: TC-AA-BB-C-DD-E/MAN

Please select the required options from tables A, B… below to define the right device reference.

TC                 Rayomatic TC

Delivered in standard with:

  • Instruction manual in English

Table AA        Optics - Distance to target

2                     Optics 2:1, 61.9 mm @ 100 mm

15                   Optics 15:1, 45.2 mm @ 500 mm

30                   Optics 30:1, 28.6 mm @ 500 mm

CF                  Close focus lens, 5 mm @ 100 mm

Table BB       Temperature range

LT                  -20°C to 100°C

MT                 0 to 250°C

HT                  0 to 500°C (not for 2:1 optics)

Table C       Output signal

0                     2 wires, 4-20 mA

1                     4 wires, 0-50 mV (target T°), 4-20 mA (sensor T°)

2                     4 wires, Tc T (target T°), 4-20 mA (sensor T°)

3                     4 wires, Tc J (target T°), 4-20 mA (sensor T°)

4                     4 wires, Tc K (target T°), 4-20 mA (sensor T°)

5                     4 wires, 0-50 mV (target T°), low current consumption, for battery-powered applications

Table DD        Accessories

NO                  None

WJ                  Air / Water cooled jacket and air purge collar

Table E            Certificat d’étalonnage

0                      None

1                      Factory traceable calibration certificate with data

Accessories:

FBS                  Fixed mounting bracket for compact sensors

ABS                  Adjustable mounting bracket for compact sensors

APSW               Air purge collar for compact 2:1 sensors

APSN                Air purge collar for compact 15:1, 30:1 and close-focus sensors

PWS                  Protective plastic window in stainless steel holder (8-14 µm model only)

LSTS                 Laser sighting tool for compact sensors

DLSBFS            Dual laser sighting bracket, fixed, for compact sensors

DLSBAS            Dual laser sighting bracket, adjustable, for compact sensors

DLSBCE            Extended cable for Dual Laser Sighting Bracket - Price for 1 m

PCCE                Extended cable for uncooled RAYOMATIC TC sensor, option 0 - 1 m, up to 29 m extension

PCCEV              Extended cable for uncooled RAYOMATIC TC sensor, option 1 - 1 m, up to 29 m extension

PCCET              Extended cable for uncooled RAYOMATIC TC sensor, option 2 - 1 m, up to 29 m extension

PCCEJK            Extended cable for uncooled RAYOMATIC TC sensor, option 3 and 4 - 1 m, up to 29 m extension

PCCEHT           Extended cable, high temperature, for cooled RAYOMATIC TC sensor, option 0 - 1 m, up to 29 m extension

PCCEHTJ          Extended cable, high temperature, for cooled RAYOMATIC TC sensor, option 3 - 1 m, up to 29 m extension

PCCEHTK         Extended cable, high temperature, for cooled RAYOMATIC TC sensor, option 4 - 1 m, up to 29 m extension

CALCERT A     Calibration certificate

CALCERT B     Re-calibration and certificate
