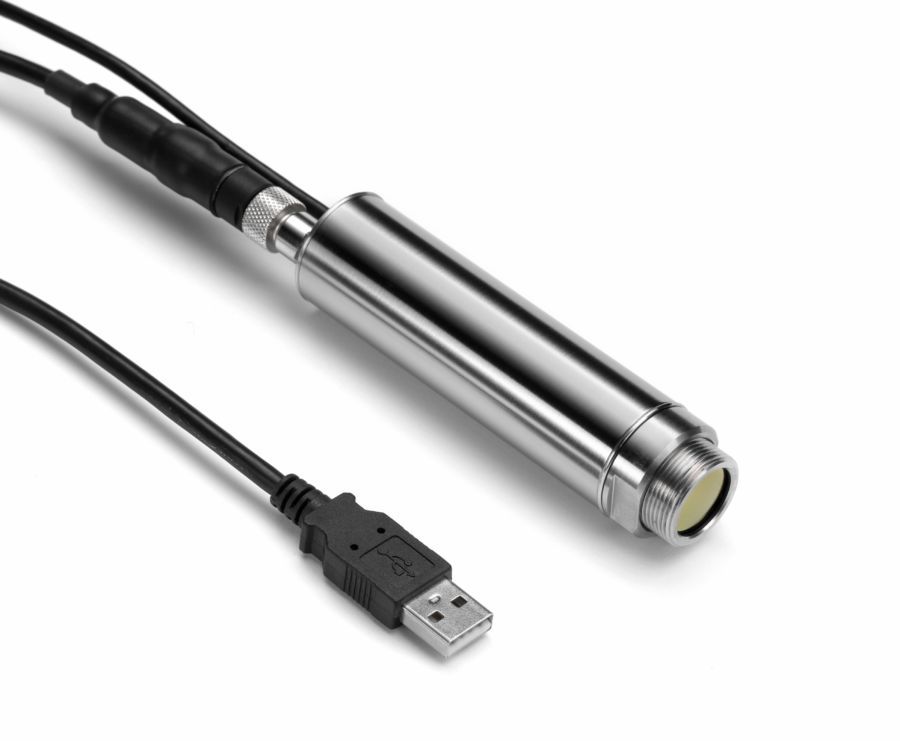

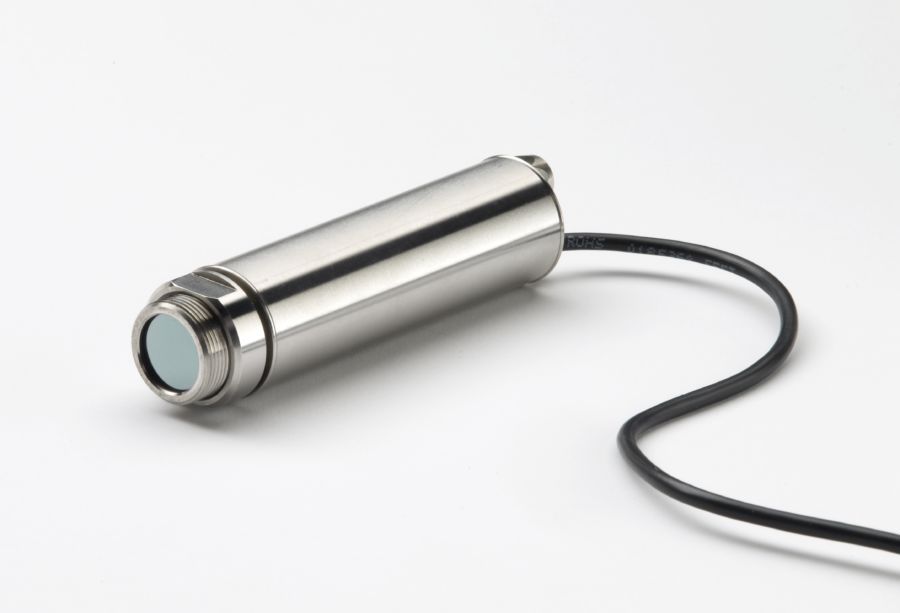

Rayomatic USB 2.2

picto fleche 2.2 μm non-contact process sensor with 4-20 mA output and USB connection

Rayomatic USB 2.2 non-contact process sensor measures temperatures from 45°C to 2000°C. The non-contact thermometer is especially suited to low-emissivity targets such as steel rollers and other metal surfaces, even at low temperatures.

  • 2.0 to 2.4 µm
  • Two-wire 4-20 mA or 0-20 mA selectable output
  • Temperature range, emissivity setting… configurable by PC via IRConfig software and USB cable
  • Emissivity from 0.1 to 1.0
  • 15:1, 25:1, 75:1 and CF optics
  • OPC server capabilities
  • Data acquisition, alarms and scrolling graphical display
  • IP65 stainless steel housing
Ask a question
Get a call

Rayomatic USB 2.2 non-contact process sensor measures temperatures from 45°C to 2000°C. The 4-20 mA or 0-20 mA output is compatible with almost any indicator, controller, recorder, data logger etc., without the need for special interfacing or signal conditioning.

They are especially suited to low-emissivity targets such as steel rollers and other metal surfaces, even at low temperatures.

Fully configurable by PC, Rayomatic USB 2.2 is supplied with IRConfig software and USB cable. The emissivity and range can be set with the software or adjusted by OPC client.

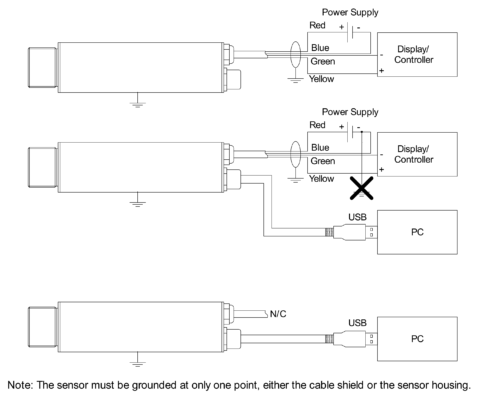

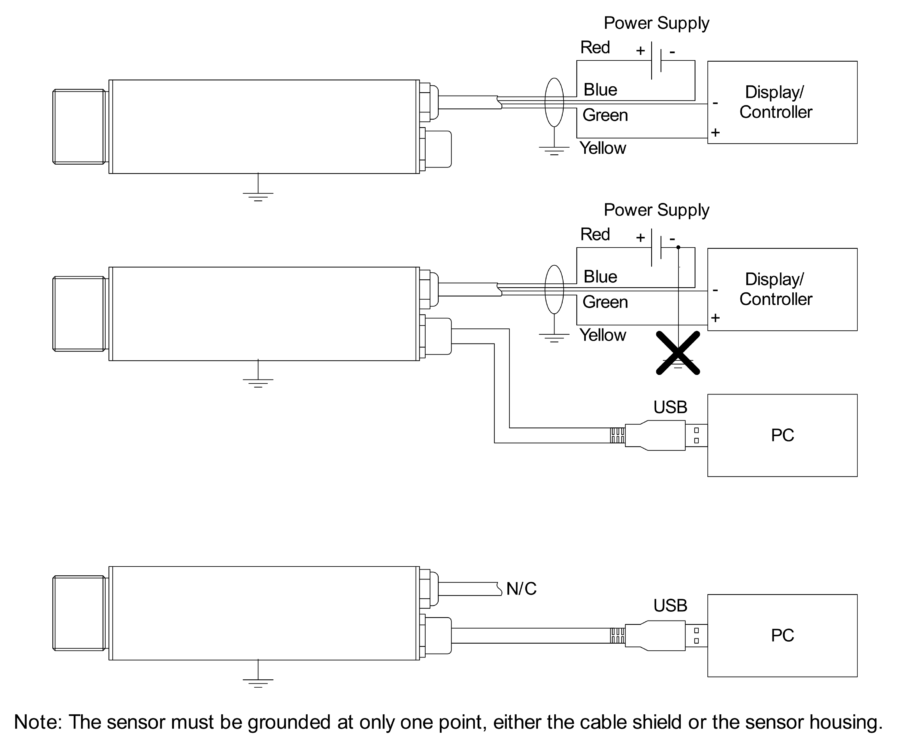

The sensor can be either connected with the 4-20 mA cable, the USB cable or both.

  • 2.0 to 2.4 µm
  • Two-wire 4-20 mA or 0-20 mA selectable output
  • Temperature range, emissivity setting… configurable by PC via IRConfig software and USB cable
  • Emissivity from 0.1 to 1.0
  • 15:1, 25:1, 75:1 and CF optics
  • OPC server capabilities
  • Data acquisition, alarms and scrolling graphical display
  • IP65 stainless steel housing

   Infrared temperature measurement

ModelLTPTMTHT
Temperature range45 to 300°C100 to 400°C250 to 1000°C450 to 2000°C
Spectral response2.0 - 2.4 µm
EmissivityAdjustable from 0.1 to 1.0
Accuracy±1% RDG or 1°C
Repeatability±0.5% RDG or 0.5°C
Response time240 ms (90%)

Optics

Rayomatic USB 2.2_Optics 15-1Rayomatic USB 2.2_Optics 25-1
Rayomatic USB 2.2_Optics 75-1Rayomatic USB 2.2_Optics CF

Further features

DataloggingData acquisition, alarms and scrolling graphical display
Output2-wire 4-20 mA or 0-20 mA

General specifications

Size L x l x hElectronic module: Ø 25 x 106.5 mm
Thread mounting: M20 x 1 mm
Weight175 g with cable
ConstructionStainless steel
Power supply24 VDC (Max 26 VDC)
Sensor voltage11 VDC Min
Loop impedance900 Ω Max
InterfacesUSB

Environmental specifications

Reference conditions0°C to +70°C (95% non-condensing)
Environmental ratingIP65



Instrument:

Ordering code structure: USB-AA-BB-2.2-CC-D/MAN

Please select the required options from tables A, B… below to define the right device reference.

USB 2.2      Rayomatic USB 2.2

Delivered in standard with:

  • IRConfig software

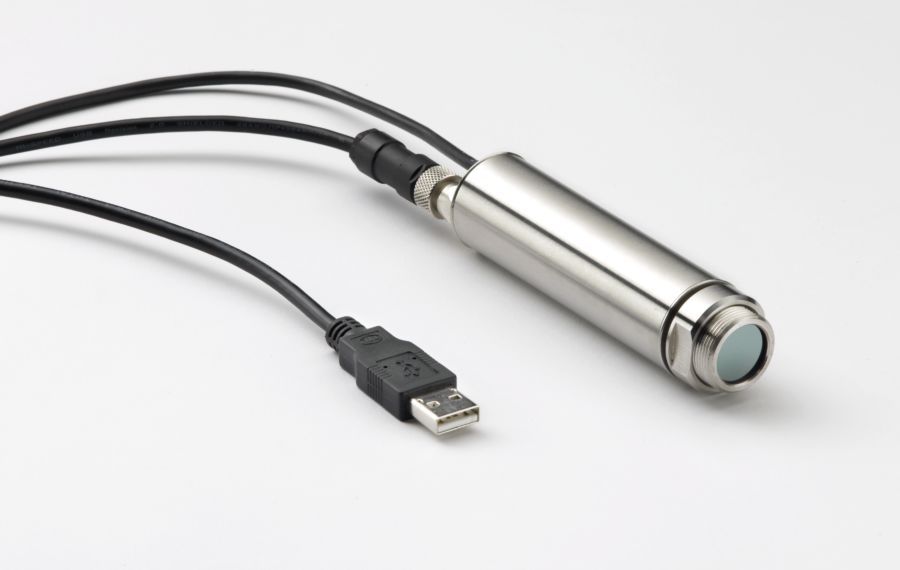

  • USB cable

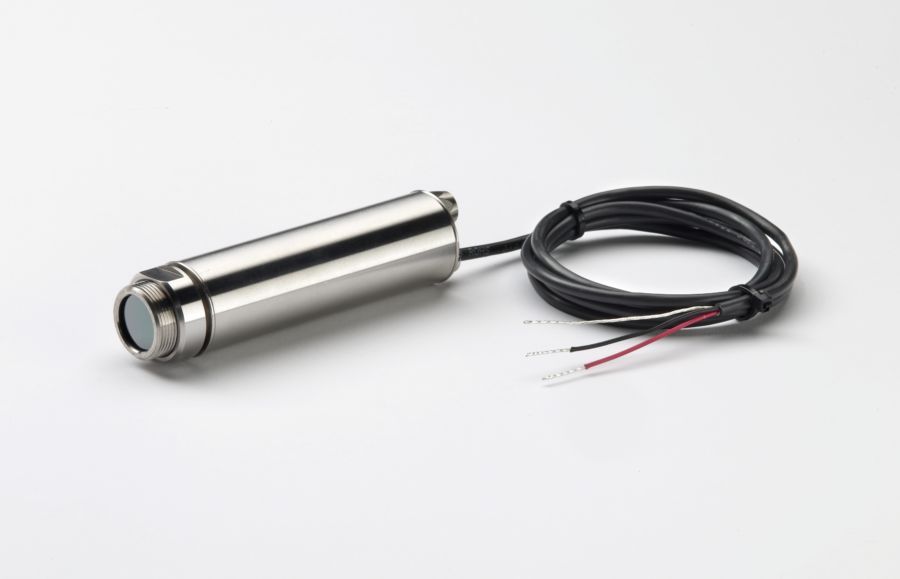

  • Output cable
  • Instruction manual in English

Table AA        Optics - Distance to target

15                   Optics 15:1, 100 mm @ 1500 mm (LT & PT only)

25                   Optics 25:1, 60 mm @ 1500 mm (MT & HT only)

75                   Optics 75:1, 20 mm @ 1500 mm (MT & HT only)

CF                   Close focus lens, 7.5 mm @ 500 mm (MT & HT only)

Table BB        Temperature range

LT                   45°C – 300°C (optics 15:1 only)

PT                   100°C – 400°C (optics 15:1 only)

MT                   250 – 1000°C

HT                   450°C – 2000°C

Table CC        Accessories

NO                  None

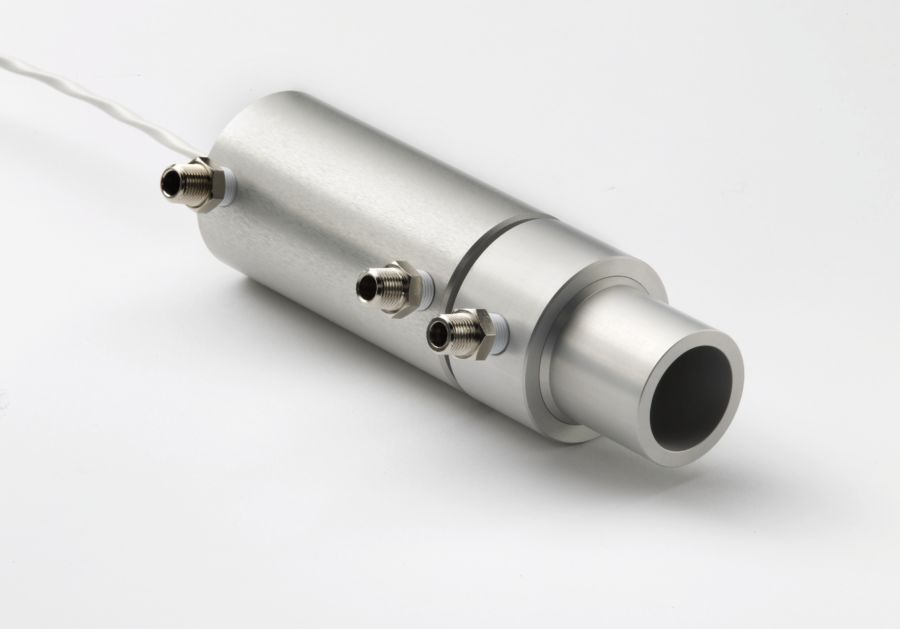

WJ                  Air / Water cooled jacket and air purge collar

Table D            Calibration certificate

0                      None

1                      Factory traceable calibration certificate with data

Accessories:

FBL                  Fixed mounting bracket for Rayomatic USB 2.2

ABL                  Adjustable mounting bracket for Rayomatic USB 2.2

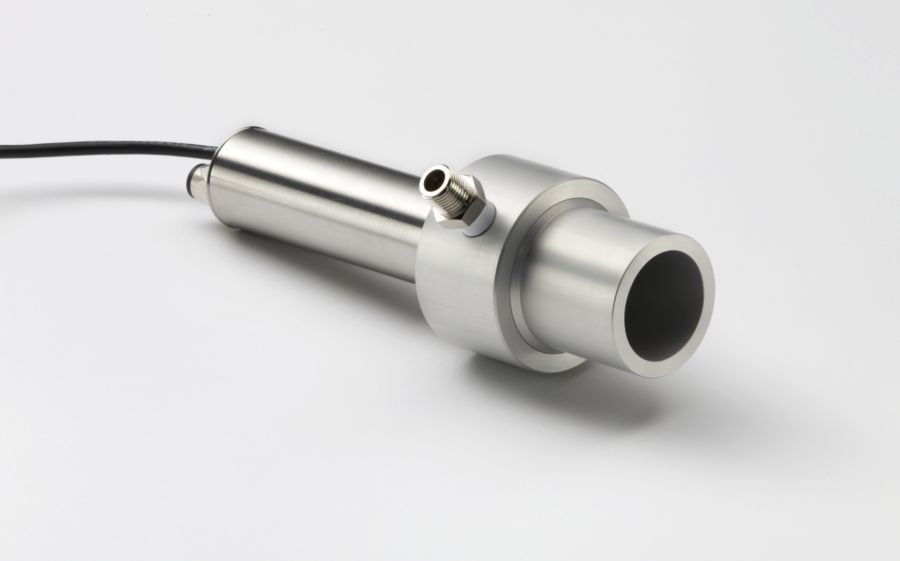

APL                  Air purge collar for Rayomatic USB 2.2

LSTL                Laser sighting tool for Rayomatic USB 2.2

DLSBFL           Dual laser sighting bracket, fixed, for RAYOMATIC USB 2.2

DLSBAL           Dual laser sighting bracket, adjustable, for RAYOMATIC USB 2.2

DLSBCE          Extended cable for Dual Laser Sighting Bracket - Price for 1 m

PU2.2CE         Extended 4-20 mA output cable for uncooled Rayomatic USB 2.2, 1 m, up to 29 m extension

CALCERT A    Calibration certificate

CALCERT B    Re-calibration and certificate
