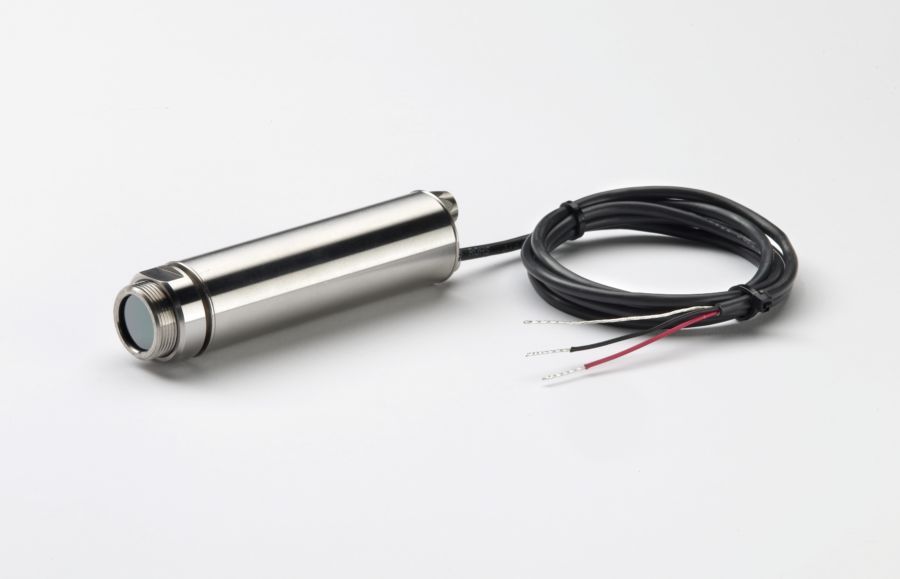

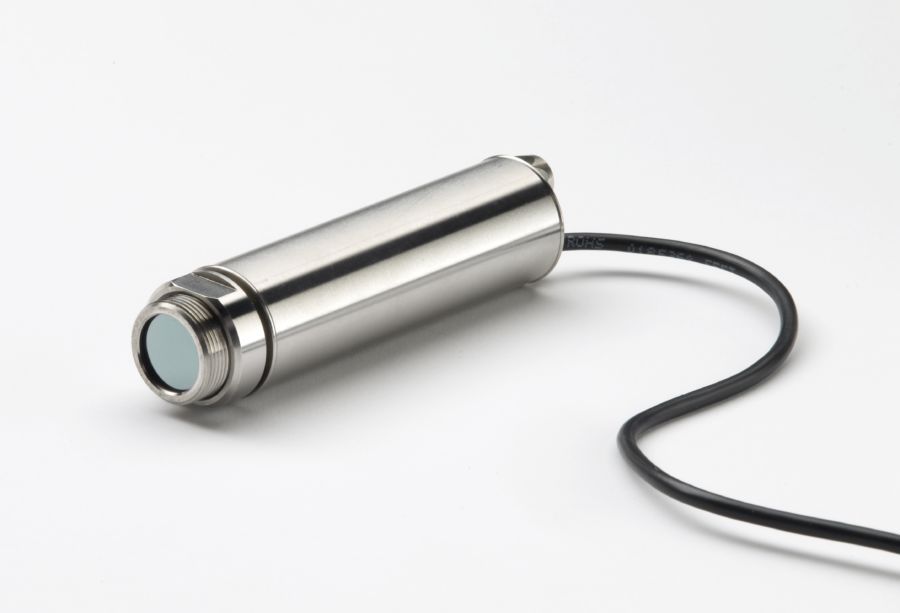

Rayomatic USB

picto fleche Non-contact thermometer with 4-20 mA output and USB communication

Rayomatic USB non-contact thermometer measures temperatures from -40°C to 1000°C and provides a linear 4 to 20 mA output. The signal is compatible with almost any indicator, controller, recorder, data logger etc., without the need for special interfacing or signal conditioning.

  • 8 to 14 µm
  • Two-wire 4-20 mA output
  • Temperature range, emissivity setting… configurable by PC via IRConfig software and USB cable
  • Emissivity from 0.1 to 1.0
  • 15:1, 30:1 and CF optics
  • OPC server capabilities
  • Data acquisition, alarms and scrolling graphical display
  • IP65 stainless steel housing
Ask a question
Get a call

Rayomatic USB non-contact thermometer measures temperatures from -40°C to 1000°C and provides a linear 4 to 20 mA output. The signal is compatible with almost any indicator, controller, recorder, data logger etc., without the need for special interfacing or signal conditioning.

The non-contact temperature sensor is suitable for most materials such as food, paper textilies, plastics, leather, tabacco, pharmaceutical, chemicals, rubber coal and asphalt.

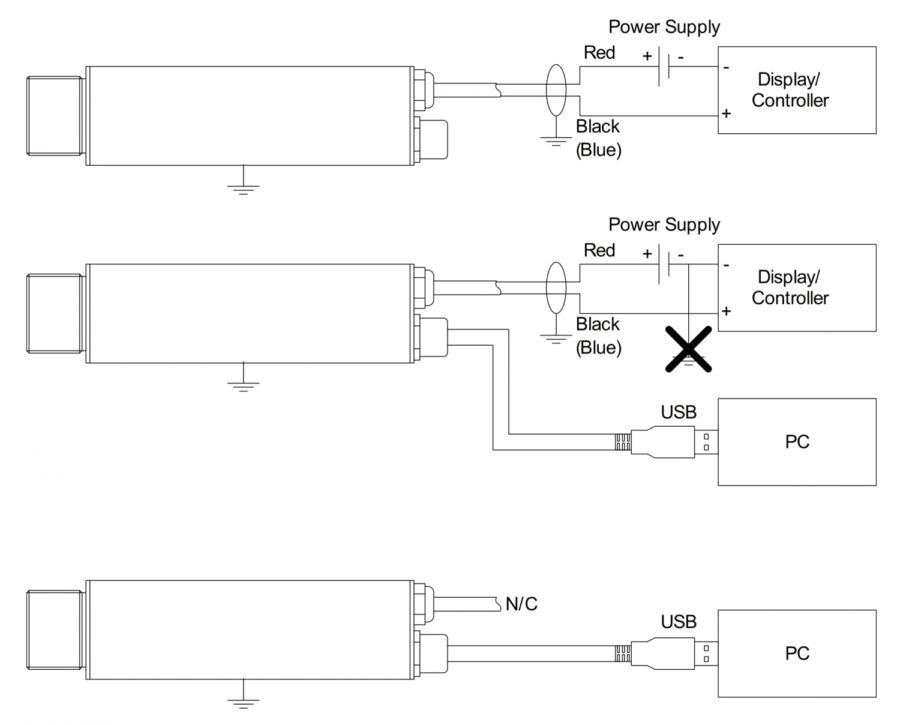

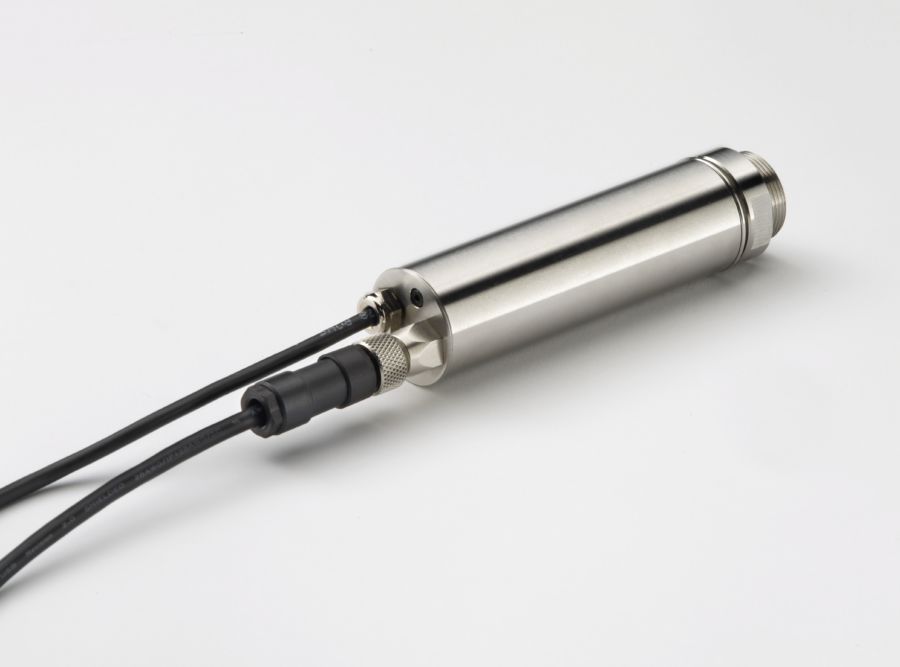

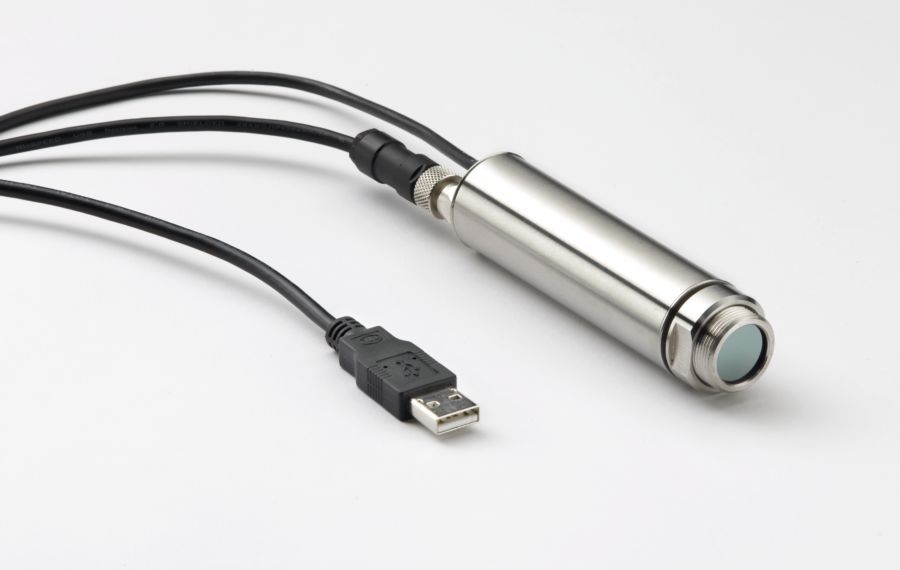

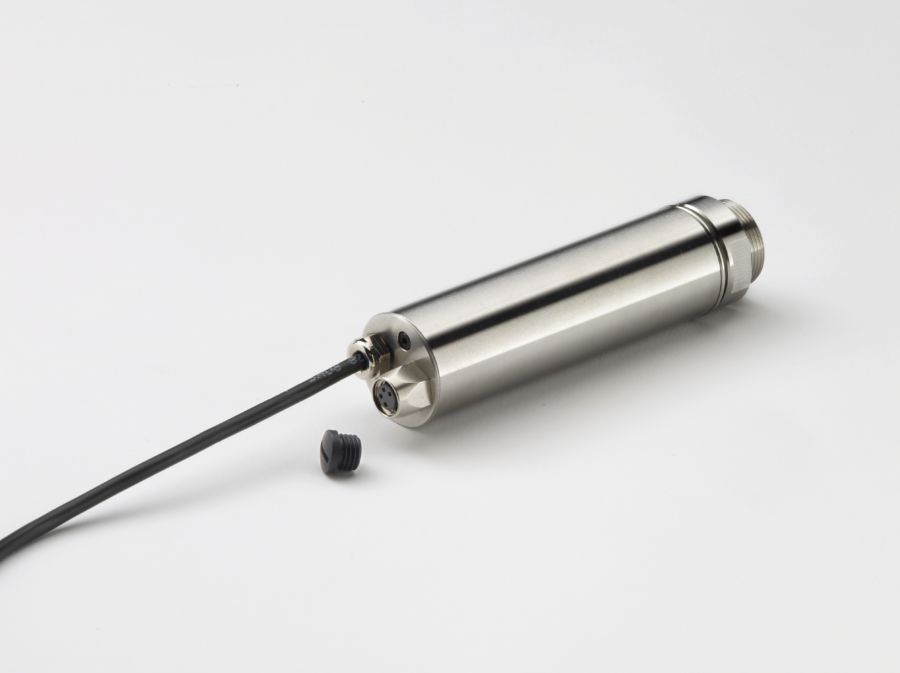

Fully configurable by PC, Rayomatic USB is supplied with IRConfig software and USB cable. The emissivity and range can be set with the software or adjusted by OPC client. The sensor can be either connected with the 4-20 mA cable, the USB cable or both.

  • 8 to 14 µm
  • Two-wire 4-20 mA output
  • Temperature range, emissivity setting… configurable by PC via IRConfig software and USB cable
  • Emissivity from 0.1 to 1.0
  • 15:1, 30:1 and CF optics
  • OPC server capabilities
  • Data acquisition, alarms and scrolling graphical display
  • IP65 stainless steel housing

Infrared temperature measurement

Temperature range -40 to 1000°C
Spectral response 8 - 14 µm
Emissivity Adjustable from 0.1 to 1.0
Accuracy ±1% RDG or 1°C
Repeatability ±0.5% RDG or 0.5°C
Response time 240 ms (90%)

Optics

Rayomatic USB_Optics 15-1 Rayomatic USB_Optics 30-1
Rayomatic USB_Optics CF

Further features

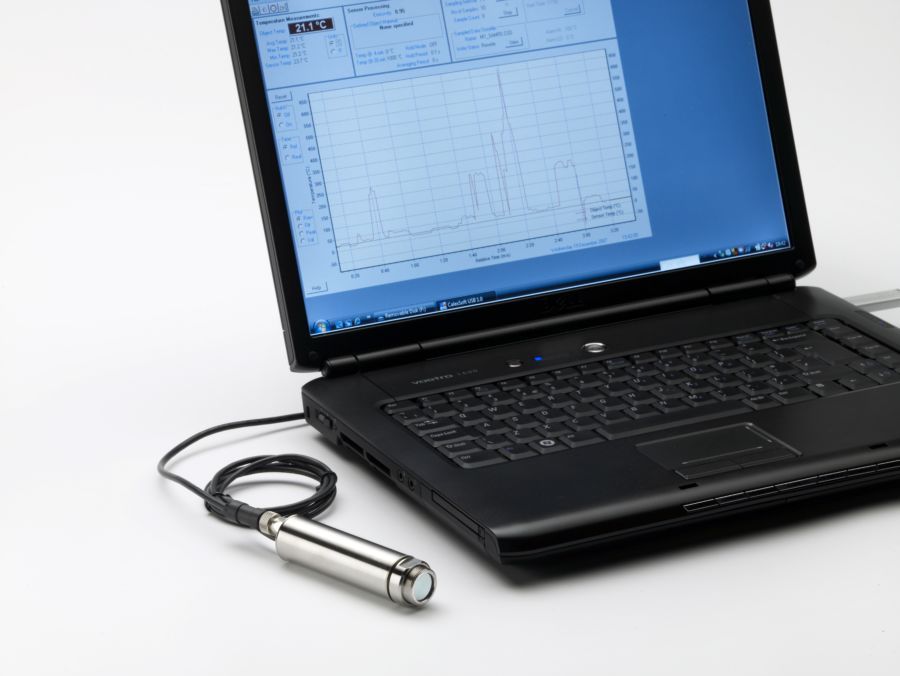

Datalogging Data acquisition, alarms and scrolling graphical display
Output 2-wire 4-20 mA

General specifications

Dimensions L x l x h Electronic module: Ø 25 x 106.5 mm
Thread mounting: M20 x 1 mm
Weight 175 g with cable
Construction Stainless steel
Power supply 24 VDC (Max 28 VDC)
Sensor voltage 6 VDC Min
Loop impedance 900 Ω Max (4-20 mA OUT)
Interfaces USB

Environmental specifications

Reference conditions 0°C to +70°C (95% non-condensing)
Environmental rating IP65



Instrument:

Ordering code structure: USB-AA-BB-C/MAN

Please select the required options from tables A, B… below to define the right device reference.

USB   Rayomatic USB

Delivered in standard with:

  • IRConfig software
  • USB cable
  • Output cable
  • Instruction manual in English

Table AA        Optics - Distance to target

15                   Optics 15:1, 48 mm @ 500 mm

30                   Optics 30:1, 32 mm @ 500 mm

CF                  Close focus lens, 5 mm @ 100 mm

Table BB        Accessories

NO                  None

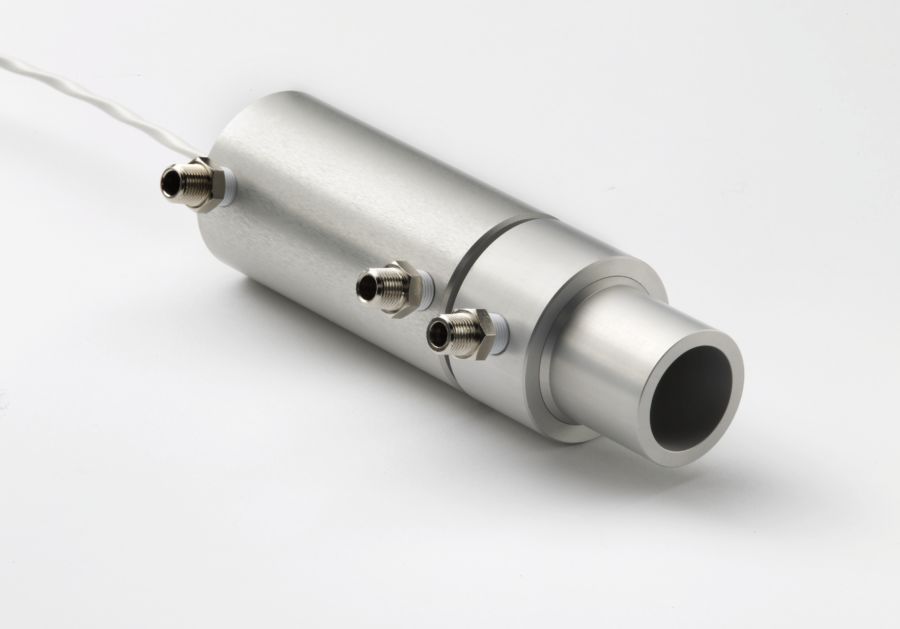

WJ                  Air / Water cooled jacket and air purge collar

Table C           Calibration certificate

0                      None

1                      Factory traceable calibration certificate with data

Accessories:

FBL                  Fixed mounting bracket for Rayomatic USB

ABL                  Adjustable mounting bracket for Rayomatic USB

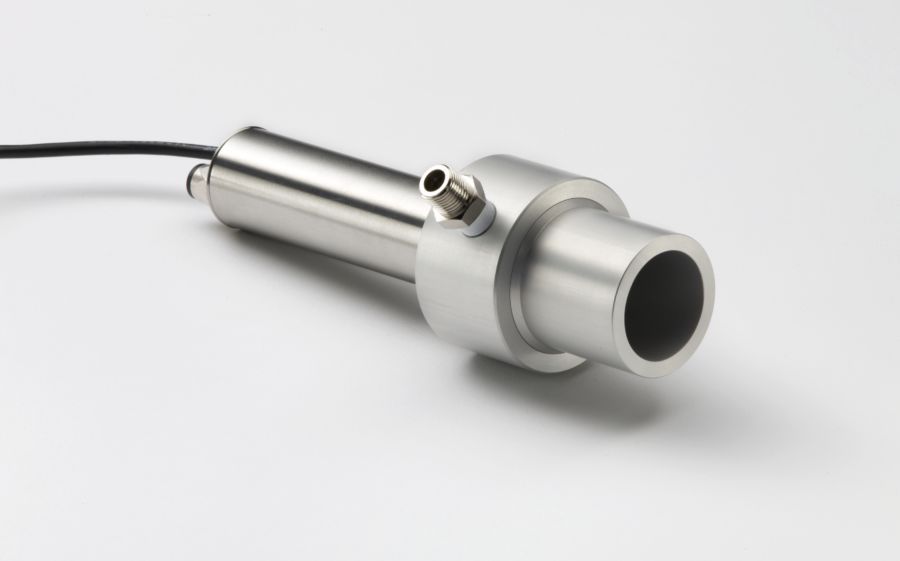

APL                  Air purge collar for Rayomatic USB

PWL                 Protective plastic window in stainless steel holder

LSTL                Laser sighting tool for RAYOMATIC USB

DLSBFL           Dual laser sighting bracket, fixed, for RAYOMATIC USB

DLSBAL           Dual laser sighting bracket, adjustable, for RAYOMATIC USB

DLSBCE          Extended cable for Dual Laser Sighting Bracket - 1 m

PUCE               Extended 4-20 mA output cable for uncooled Rayomatic USB, 1 m, up to 29 m extension

PUCEHT          Extended 4-20 mA output cable, high temperature, for cooled Rayomatic USB, 1 m, up to 29 m extension

CALCERT A     Calibration certificate

CALCERT B     Re-calibration and certificate
