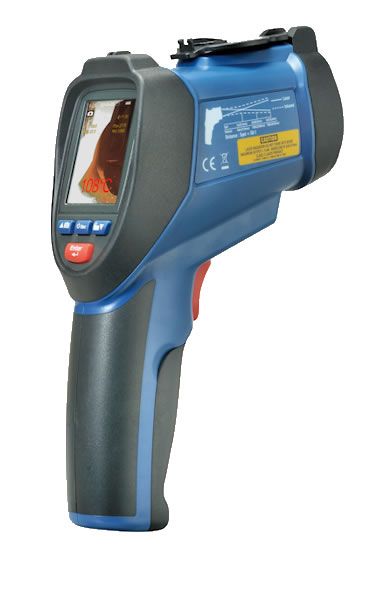

8-14 µm documenting portable infrared thermometer with camera imaging
IRtec P IVT, optics 10 mm @ 600 mm
8-14 µm documenting portable infrared thermometer with camera imaging

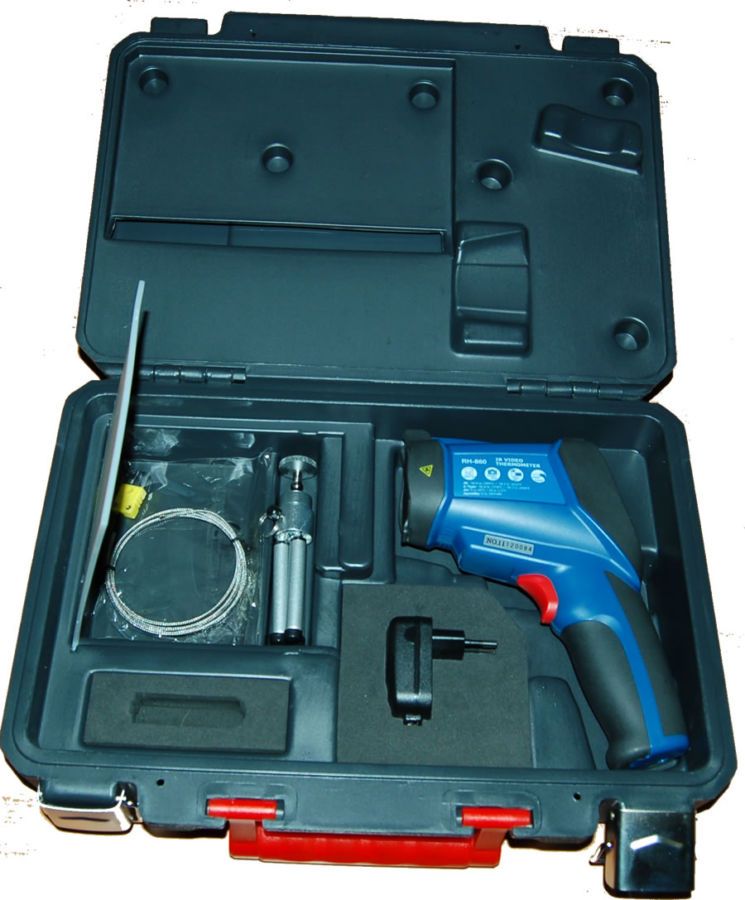

IRtec P IVT suitcase
IRtec P IVT with camera imaging
8-14 µm documenting portable infrared thermometer with camera imaging

IRtec P IVT

picto fleche 8-14 µm documenting portable infrared thermometer with camera imaging

IRtec P IVT is a portable infrared thermometer with an embedded camcorder that is able to display both the visible area and the measured temperature into a single easy-to-use solution, over a large temperature range from -50°C to 1000°C and with a short response time of 150 ms.

Compact, light and easy-to-use, it is the perfect tool for documenting measurements with photo, video or data acquisition.

Ask a question
Get a call

IRtec P IVT is a portable infrared thermometer with an embedded camcorder that is able to display both the visible area and the measured temperature into a single easy-to-use solution, over a large temperature range from -50°C to 1000°C and with a short response time of 150 ms. Compact, light and easy-to-use, it is the perfect tool for documenting measurements with photo, video or data acquisition. A MicroSD card can be added in option to increase the memory storage capacity.

Equipped with an input for thermocouple type K, a humidity sensor and a dual laser pointing system, IRtec P IVT also benefit from a large LCD display allowing temperature and humidity measurements to be displayed together with MIN and MAX values.

  • Adjustable emissivity from 0.1 to 1.00 (Preset at 0.95)
  • Short response time (150 ms)

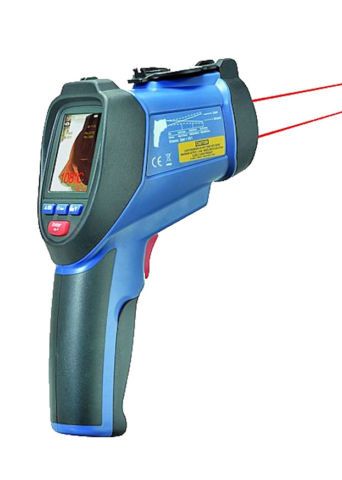

  • Dual ultra-bright laser pointer
  • Recording of images (JPEG), videos (AVI) and text (TXT)
  • Measurement of relative humidity, temperature and dewpoint
  • Input for thermocouple type K with universal MiniDin connector

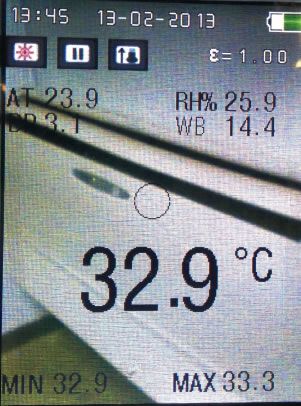

  • Large LCD display area for measurements and MIN / MAX values
  • MicroSD card slot
  • Easy handling with pistol grip
  • Compact and light

IRtec P IVT is more particularly adapted to temperature measurements of the following objects:

  • Moving parts (running paper rolls...)
  • Gears and motors
  • Live parts (electrical components, transformers...)
  • Non-touchable parts (freshly painted parts)
  • Food
  • Corrosive substances

Infrared temperature measurement

Range-50 to 1000°C (-58 à 1832°F)
Optics50:1
AccuracyFrom 20°C to 500°C (68 to 932°F): ±1% ou ±1.0°C (1.8°F)
From 500°C to 1000°C (932 to 1832°F): ±1.5%
From -50 to 20°C (-58 to 68°F): ±3.5°C
Resolution0.1°C (0,1°F) < 1000°C
1°C (1°F) > 1000°C
RepeatabilityFrom -50°C to 20°C (-58 to 68°F): ±1.5°C (2.7°F)
From 20 to 1000°C (68 to 1832°F): ±0.5% or ±0.5°C (0,9°F)
Response time150 ms
Spectral response8 ~ 14 µm
EmissivityDigitally adjustable from 0.10..1.00

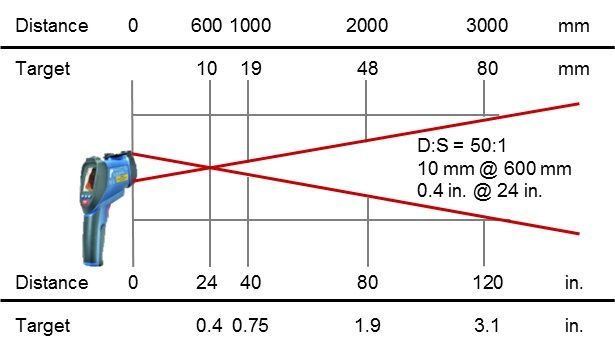

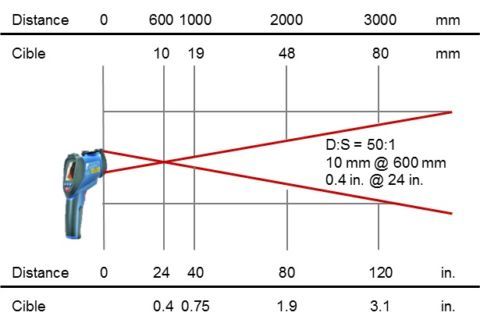

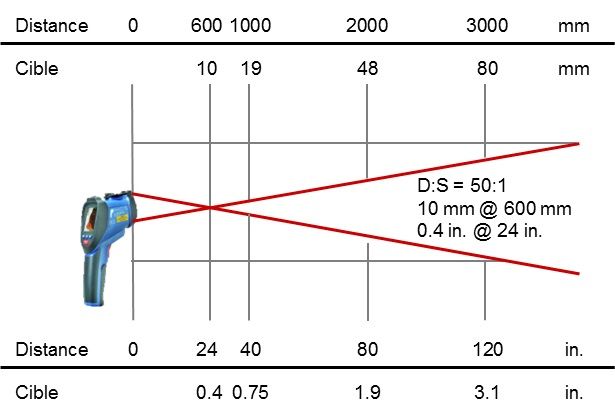

Optics

IRtec P IVT_Optics_EN

Temperature measurement through thermocouple type K

RangeFrom -50°C to 1370°C (-58 to 1832°F)
AccuracyFrom 0 to 1370°C (32 to 2498°F) : ±0.5% or ±1.5°C (2.7°F)
From -50 to 0°C (-58 to 32°F): ± 2.5°C (4.5°F)
Resolution0.1°C (0.1°F) < 1000°C
1°C (1°F) > 1000°C

Air temperature and relative humidity measurement

 AirDew point temperatureRelative humidity
RangeFrom 0 to 50°C (32 to 122°F)From 0 to 50°C (32 to 122°F)From 0 to 100% RH
PrécisionFrom 10 to 40°C: ±0.5°C (0.9°F)
Beyond: ±1.0°C (1.8°F)
From 10 to 40°C: ±0.5°C (0.9°F)
Beyond: ±1.0°C (1.8°F)
From 40% to 60%: ± 3% RH
From 20% to 40% and from 60% to 80%: ±3.5% RH
From 0% to 20% and from 80% to 100%: ±5% RH

General specifications

Size205 x 62 x 155 mm
Weight410 g
Display2.2” 320*240 color LCD with backlight
BatteriesRechargeable
Battery life: About 4 hours continuous use
Charging time: About 2 hours with AC adapter or USB connection

Spécifications environnementales

Operating rangeFrom 0 to 50°C (32 to 122°F)
Storage conditionsFrom -10 to 60°C (14 to 140°F) (10 to 90% RH non condensing)

Instruments:

Please select the required options from tables A, B… below to define the right device reference.

IRtec P IVT-0/ENG

Standard packing:

  • Instrument
  • Rechargeable   battery, power supply, USB cable, ABS case, tripod, type K thermocouple
  • Instruction manual in English

IRtec P IVT-1/ENG

Standard packing:

  • Instrument
  • Rechargeable   battery, power supply, USB cable, ABS case, tripod, type K thermocouple
  • Factory traceable calibration certificate
  • Instruction manual in English

Accessories

F2137100          TC K/S contact probe

F2132100          TC K/S air probe

Packing information:

Weight              410g

Size                  205 x 62 x 155 mm

ProductDescriptionReleaseType
IRtec P IVT

Instruction manual in EN / IT / FR

NTA70006-700Apdf
