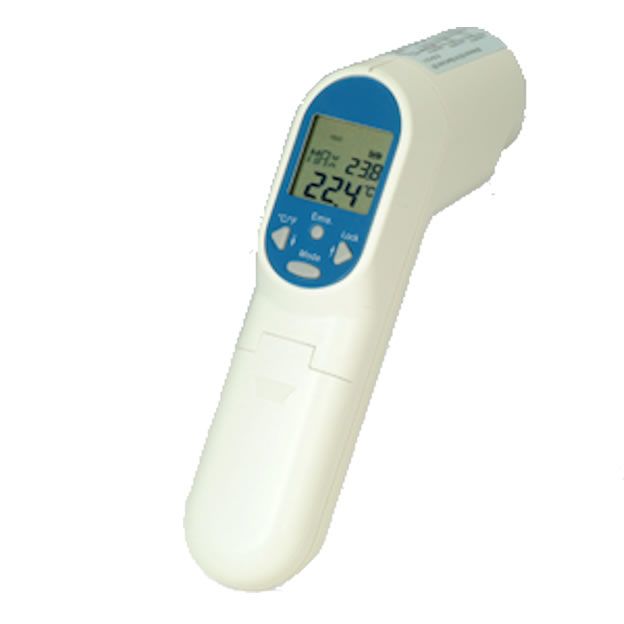

MicroRay NXT

picto fleche Basic 8-14 µm portable pyrometer - Ideal for HVAC applications

MicroRay NXT portable pyrometer measures temperatures from -60°C to 500°C. It is the ideal tool for diagnosis, inspection and control of areas difficult to reach (air conditioning systems, process and electrical maintenance, food safety – HACCP…) but where the temperature is a critical parameter and important for the proper functioning.

Ask a question
Get a call

MicroRay NXT portable pyrometer measures temperatures from -60°C to 500°C. It is the ideal tool for diagnosis, inspection and control of areas difficult to reach (air conditioning systems, process and electrical maintenance, food safety - HACCP…) but where the temperature is a critical parameter and important for the proper functioning.

  • Easy handling with pistol grip
  • Compact and light
  • Short response time (500 ms)
  • Large backlite LCD display
  • Ultra-bright laser pointer
  • Adjustable emissivity from 0.1 to 1.00 (Preset at 0.95)

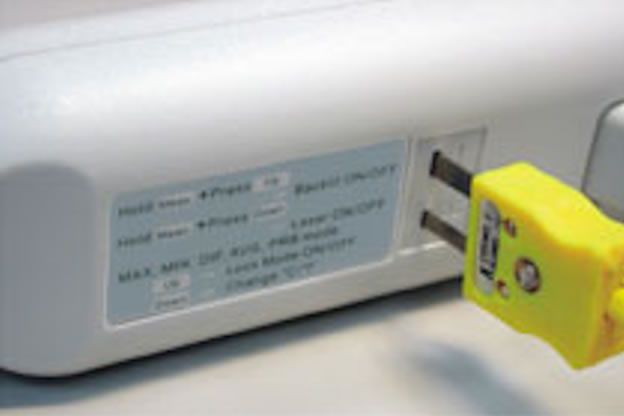

  • Input for thermocouple type K with universal MiniDin connector

Temperature measurement

ItemInfrared temperature measurementMeasurement through thermocouple type K (probe not included)
Measurement range-60 to +500 °C (-76 to +932 °F)-64 to +1400°C (-83.2 to +1999°F)
Operating range0 to +50°C (32 to +122°F)
Accuracy
(Tobj=15~35°C, Tamb=25°C)		±1.0°C (1.8°F)±1% RDG or 1°C (1.8°F) whichever is greater (Test under Tamb = 23 ±6°C)
Accuracy
(Tobj = -33~500°C, Tamb = 23 ± 3°C)		±2% RDG or 2°C (4°F) whichever is greater
Emissivity rangePreset at 0.95 – Adjustable from 0.1 to 1 by .01 steps
Resolution (-9.9~199.9°C)0.1°C / 0.1°F, otherwise 1°C / 1°F
Response time (90%)1 sec

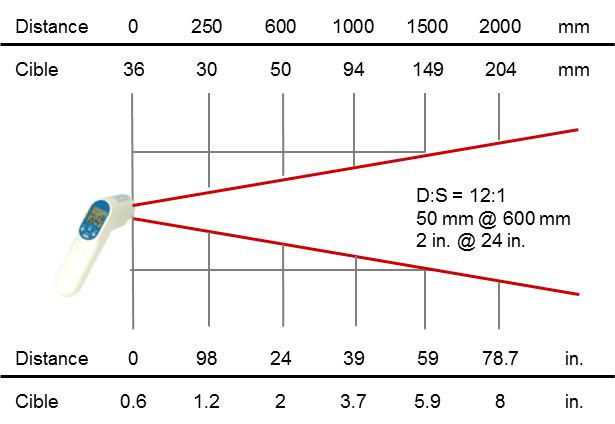

Distance: spot12:1

General specifications

Size175.2 x 39.0 x 71.9 mm (6.9 x 1.54 x 2.83 inch)
Weight179 g (6.31 oz) including batteries
Batteries2 x Alkaline batteries 1.5 V
Battery life: 180 min

Environmental specifications

Operating range0 to +50°C (32 to +122°F)
Storage conditions-20°C à +65°C

Safety

ClassCompliant with EN 61010-1
Rating voltage60 V



Instruments:

Ordering code structure: MicroRay NXT- B / X

Please select the required options from tables A, B… below to define the right device reference.

MicroRay NXT   MicroRay NXT

Standard packing includes:

  • Instrument
  • 2 x AAA batteries
  • Instruction manual

Table B – Calibration report

0                      None

EC                              Factory traceable calibration report



Table X – Personal settings

ENG                 English instruction manual

FRA                 French instruction manual

ProductDescriptionReleaseType
MicroRay NXT

Instruction manual

NTA70005-010Apdf
