CTI46 PYROTECHNICAL OHMMETER

picto fleche Continuity tester for pyrotechnic systems

1 to 4 channels continuity testers on pyro systems

Ask a question
Get a call

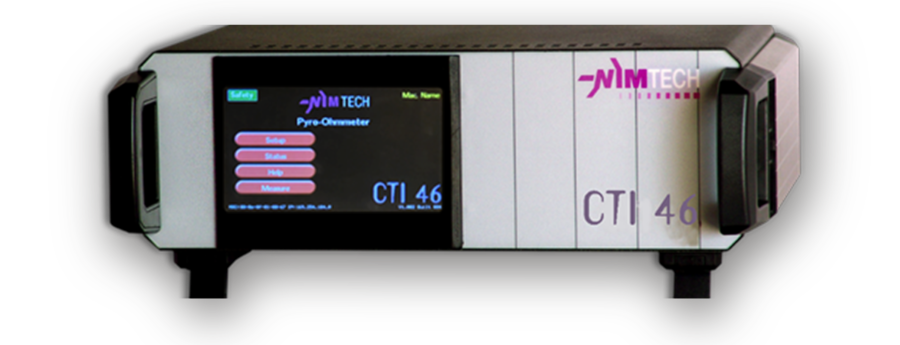

The CTI 46 is a multi-channel safety pyrotechnic ohmmeter (1 channel as standard and 4 channels optional) for carrying out measurements on pyrotechnic devices.

It was developed for use in an industrial environment, for integrated controls in production lines as well as in the laboratory.

This instrument is designed to carry out measurements on pyrotechnic elements around which user safety is at stake. Its main advantages lie in its great versatility and its great speed of measurement, this ohmmeter can be fully controlled by RS232 or Ethernet



it ensures the functionalities:

Measuring current much lower than non-fire current
Connection to the test line only during the measurement period
Failure to exceed a maximum safety current in the event of equipment failure (electronics failure, internal short circuit, etc.)
Flow of residual electrostatic charges at rest
Permanent self-monitoring of the internal functions of the equipment
External safety loop authorizing the powering of the measurement circuits
It has the functions:

Ohmmeter: The CTI46 has 4 main measurement channels using the 4-wire technique, making it possible to eliminate the resistance of the measurement cables, with the capacity to carry out inter-channel measurements allowing adaptation to more complex configurations:

  • PT100 function: temperature measurement
  • Macro: The CTI46 allows measurement groups to be created without user intervention, in the form of macro commands.
  • Display: Setting the LCD screen to suit your needs

Communication: Access in Telnet, TCP or RS232 mode to configure or control it
its major characteristics are:

  • 4/8 channels
  • Ohmmeter Ratings: 1Ω/10Ω/100Ω/1KΩ/10KΩ
  • 19” 2U P260 tabletop or rack cabinet



Ohmmeter Function
Ranges 10 Ω 100 Ω 1 kΩ 10 kΩ
Display Resolution 100 µΩ 1 mΩ 10 mΩ 0.1 Ω
Measuring Current 10 mA 1.5 mA 250 µA 50 µA
Measuring Accuracy 0,03% + 0,06% 0,02% + 0,08% 0,02% + 0,1% 0,02% + 0,2%
Micro ohmmeter function
Range 1 Ω
Display Resolution 1 µΩ
Measuring Current 10 mA
Accuracy 0,03% reading + 0,05% scale
Measurment period From below <100 ms up to 1 second according to integration time





Power supply

 Main supply

-       Voltage: 85V~ to 264V~ 45 to 63Hz

-       Power : 10W

-       Fuses : 2 x 400mA T
Mecanical specifications   Benchtop version

Weigh: 1,7 K w/o accessories.

Dimensions :L330 x 280 x H113 mm.

Temperatures Max / Min :

-          from 18°C  to 22°C  using .

-          From 5 °C  to 45°C  storage.

Rack version

Std 19" – 2U – P260



CTI46-1 Version STD Benchtop 1 channel IP40
CTI46-2 Version STD Benchtop 2 channels IP40
CTI46-4 Version STD Benchtop 4 channels IP40
CTI46-1 Rack Version IP 40 Rack 19" 2U 200 1  Channel
CTI46-2 Rack Version IP 40 Rack 19" 2U 200 2  Channels
CTI46-4 Rack Version IP 40 Rack 19" 2U 200 4  Channels
