LOG86-001

picto fleche Temperature Sensor

Temperature sensor

  • Measuring range: -40°C… +70°C
  • Accuracy: ± 0.3°C

Certification: CE

Ask a question
Get a call

The LOG86-001 is a temperature sensor that can be used in 2 modes:

  • Monitoring  (real-time monitoring applications ): the data recorder
    data sends its measurements in real time to a PC or a gateway. If a measurement is not
    not received, it stores it in its internal memory and sends it to the receiver when
    next transmission
  • Recording (delayed data transmission): the data logger records the measurements it takes in its on-board memory. The user can download all the stored measurements to the PC at any time, by sending a command by radio.

It is also equipped with:

  • IP65 housing
  • ½ wave antenna (up to 900 meters range)
  • Power supply battery A (Lithium Thionyl)
LOG86
Type High Temperature Precision
Sensor Internal sensor
Measuring range -40°C…+70°C
Resolution @12 bits (0.1°C)
accuracy ± 0.3°C [-30°C…+70°C]

± 1°C [-40°C…-30°C]
Response time ≤10 min
Sensor drift Excellent long-term stability
Battery Lithium Thionyl with JST connector
Autonomy (25°C) Up to 5 years at 25°C on a frequency of 10 min
RF connector SMA connector
Antenna ½ wave antenna
Radio range Up to 900 meters



LED 1 LED bicolore
Memory capacity 32,256 time-stamped measurements
Resolution Time 1s
Internal clock drift +/- 2min/month @25°C
Backup Time Time retained as long as the product is powered by the battery

Time kept for 3 min if the battery is removed (if battery level = 3.6V)

Time retained for 1 min if the battery is removed (if battery level = 2.2V)

Hour lost if battery is less than 2V
Flash memory lifespan Up to 100,000 cycles
ILS Integrated ILS for several functions:

- Wake up the product in hibernation mode

- Taking a measurement outside the measurement frequency









Specifications:

  • Plastic housing
  • 2 integrated holes for mounting on a wall or inside a package
  • Flange cover included without antenna

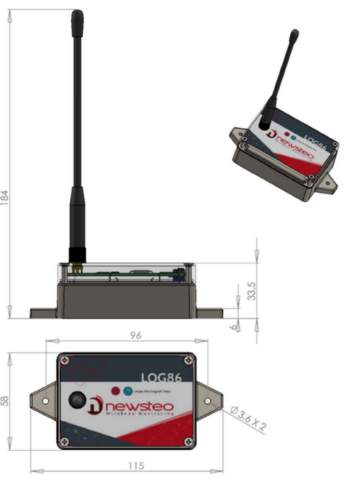

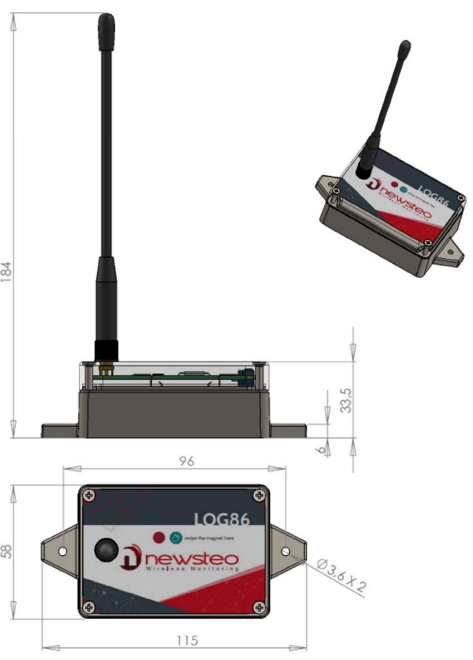

Dimensions (without antenna)
Length 115 mm
Width 58 mm
Height 40 mm
Weight 130 g
Product Identifications 2 stickers on the product:

- 1 on the upper side (giving the product range)

- 1 on the side (giving the reference and serial number of the product)



PFPN-LOG86-001 logger IP65
