LOM18-001

picto fleche Temperature Sensor

Pack of 2 or 5 pieces (PFKI-LOM18-002)

  • Measuring range : -10°C… +60°C
  • Accuracy : ±0.1°C

Certifications : CE; EN12830

Ask a question
Get a call

The LOM18-001 is a temperature sensor which can be used in the following mode:

  • Monitoring (real-time monitoring applications): the data logger sends its measurements in real time to a receiver (RF-to-US).
    its measurements in real time to a receiver (RF-to-USB key, Ethernet or 3G gateway). If a measurement is not received by the receiver, the data logger stores it in its internal memory and sends it to the receiver during the next communication.

It is also equipped with:

  • IP67 housing
  • Internal antenna
  • Power supply ½ AA battery (Lithium Thionyl)
LOM18
Type Very High Precision
Apparence Internal sensor
Operating temperature -10°C… +60°C
Resolution 0.034°C
Precision ± 0.1°C (5°C… +60°C)

± 0.2°C (-10°C… +5°C) (45°C… +60°C)
Product Latency ≤ 10 min
Sensor drift Excellent long-term stability



Battery ½ AA lithium Thionyl
Autonomy Up to 2 years at 25°C with a measurement frequency of 15 minutes

Up to 4 years at 25°C with a measurement frequency of 1 hour

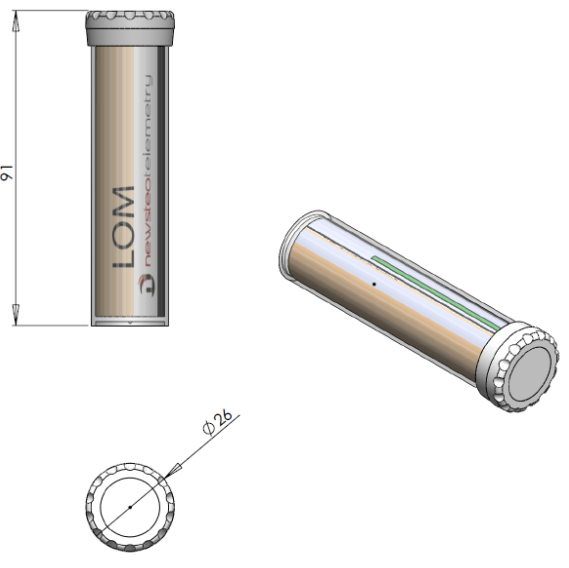

Dimension
Haunt 91 mm
diameter 26 mm



RF connector No connector
Antenna Antenna internal
Scope 200 meters (in free zone)
LED Two-color LED
Memory capacity 32.256 measurements with date and time
Time resolution 1s
Time deviation +/- 2min/month at 25°C
Flash life Up to 10.000 cycles
ILS Integrated ILS for multiple functions

-            Waking up the product in hibernation mode

-            Taking a measurement outside the measurement frequency
