LOM56-00X

picto fleche Temperature Sensor

Ask a question
Get a call

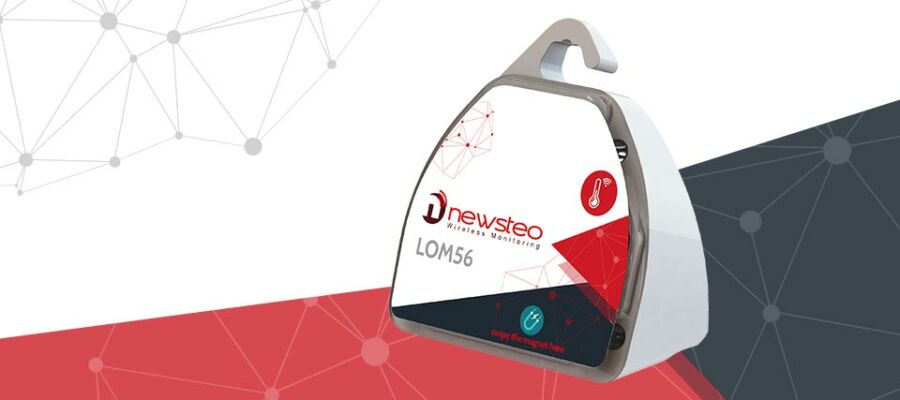

The LOM56 is a temperature sensor that can be used in the following modSe:

  • Monitoring: the data logger sends its measurements in real time to a receiver (RF-to-USB key, Ethernet or 3G/4G gateway). If a measurement is not received by the receiver, the data logger stores it in its internal memory and sends it to the receiver, over a range of up to 200m, during the next communication.
  • Up to 2 years of autonomy (with 15 min measurement interval) with a standard battery and 4 years with 1 lithium battery.

It is also equipped with:

  • IP67 housing
  • Internal antenna
LOM56
Type High accuracy
Appearance Internal sensor
Operating temperature 001: -5°C… +50°C Alkaline Battery

006 : -40°C… +70°C Pile Lithium
Resolution 0.1°C
precision ± 0.3°C [-30°C… +60°C]

± 1°C [-40°C… -30°C] [60°C… +70°C]
Product Latency ≤10 min
Sensor drift Excellent long-term stability

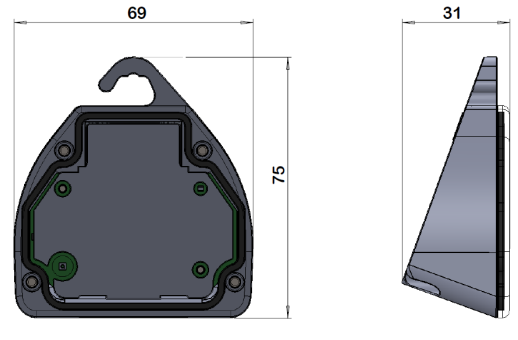

Dimension
Height 75 mm
Width 69 mm
Depth 31 mm



LOM56-001
Pile AA Alkaline
Autonomy Up to 2 years at 25°C with a measurement frequency of 15 minutes



LOM56-006
Battery AA Lithium
Autonomy Up to 4 years at 25°C with a measurement frequency of 15 minutes



RF connector No connector
Antenna Internal antenna
Scope 200 meters
LED LED bicolore
Memory capacity 32,256 measurements with date and time
Time resolution 1s
Time drift +/- 2 min/month at 25°C
ILS Integrated ILS for several functions:- Wake up the product in hibernation mode
- Taking a measurement outside the measurement frequency
PFPN-LOM56-001 Mini-Logger température v2 +/-0.3°C - IP67, Alcaline [-5°C...+50°C] Mini- Temperature Logger v2 +/-0.3°C - IP67, Alkaline [-5°C...+50°C]
PFPN-LOM56-006 Mini-Logger température v2 +/-0.3°C - IP67, LT [-40°C...+70°C] Mini- Temperature Logger v2 +/-0.3°C - IP67, LT [-40°C...+70°C]
PFKI-LOM56-001 Kit d'évaluation température : 1 LOM56 +1 RFM Premium Temperature evaluation kit: 1 LOM56 +1 RFM Premium
