ITI 16

picto fleche Programmable digital panel meter for process signal measurements

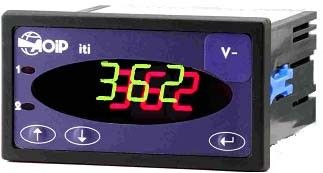

ITI 16 is a programmable digital process panel meter dedicated to process voltage and current measurements.

Ask a question
Get a call

ITI 16 are programmable digital panel meters dedicated to process voltage and current measurements.

  • Panel meter size: 96 mm x 48 mm
  • IP65 protected
  • Two-color display for color change on alarm or pre-alarm
  • Process signal measurement (0/4-20 mA, 0/100 mV / 1 V / 10 V)
  • 2 different power supplies available:
    • 90 to 260 V~ 47/420 Hz and 115 to 300 V-
    • 20 to 60 V- and 18 to 44 V~ 47/420 Hz

3 versions:

  • Version 0: Panel meter only
  • Version 1: 2 limit relays, 1 programmable analogue output (4-20 mA or 0-10 V), 1 digital output RS232/485, MODBUS/ASCII
  • Version 2: 2 limit relays



Process signal measurement indicator

TypeRangeActual rangeResolutionAccuracy (1 year)
(23°C ±5°C)
Comments
DC voltage100 mV
1 V
10 V
100 V
-15 to +160 mV
-0.1 to +1.2 V
-1 to +12 V
-10 to +120 V
10 μV
100 µV
1 mV
10 mV
0.1% + 20 μV
0.1% + 200 μV
0.1% + 2 mV
0.1% + 20 mV
Input impedance
10 MΩ
10 MΩ
1.11 MΩ
10 MΩ
DC current20 mA
4-20 mA
-2 to 24 mA
+3.2 to 24 mA
1 µA0.1% + 4 µALoop power: 24 V ±10% @ 20 mA
Applicable maximum current: 50 mA

Further features

Measurement holdShort-circuit on the rear panel
StatisticsMemorizing of maximum and minimum values
Alarms2 pre-alarm thresholds and 2 alarm thresholds with acknowledgment
Programmable thresholds and relaysIn addition to the front LED indication, 2 relays can be used on alarms.
Breaking capacity from the relays: 5 A / 250 V~, 1 250 VA or 5 A / 30 V-, 150 W max
Analogue outputProgrammable in 0-10 V or 0-20 mA
- Resistance of load≥ 1 kΩ sur 10 V, ≤ 800 Ω sur 20 mA
- Insulation input/output: 60 V, except if the ITI supplies the sensor
- Accuracy: ± (0.1% + 5 mV or 10 μA)
- Resolution: 4 000 pts
- Programmable in 2 points by the keyboard or software
Digital ouptutProgrammable digital output by keyboard allowing communication in ASCII or MODBUS RTU for network applications
When connected in network to transmitters or AOIP data acquisition systems and a PC equipped with AOIP softwareLW1, the instrument will display measurements in real or remote time in the form of synoptic, curves, numerical bargraphes, tables.
ScalingLinear scaling in two points or linearization in 3 to 22 points
Sampling rate2.5 samples / s

General specifications

Size104.5 x 57.5 x 101 mm
Weight160 g
DisplayTwo-color display green / red with change of color on alarm or pre-alarm
From -19,999 to 99,999 points, height: 14 mm
Supply230 V at ±10% (50/60 Hz)
Other power supplies available in option

Environmental specifications

Reference range23°C ±5°C (45 to 75 % w/o condensing)
Operating reference range0 to 50°C (RH: 20 to 80 % w/o condensing)
Limit operating range-10°C to +50°C
Storage conditions-30°C to +70°C (RH: 10 to 80 % w/o condensing)
IP protectionIP40 in ABS case
IP65 over front panel

Safety specifications

ClassIn accordance with EN 61010-1
Category II, pollution 2
Rated voltage150 V
EMC conformityImmunity:

  • EN 50082-1/1992

Conducted and radiated emissions:

  • EN 55022, class B

Instrument:

Ordering reference code: ITI16-6-Power supply-Option code-Instruction manual

Power supply:

20 to 60 VDC and 18 to 44VAC – 47 / 420 Hz            5

115 to 300 VDC and 90 to 260 VAC – 47 / 420 Hz      8

Option code:

Without                                                                 0

Alarm+ Analogue output+ RS MODBUS ASCII output  1

Alarm only                                                             2

Instruction Manual:

French                                                                  F

English                                                                  G

Accessories:

ER42062-001          RC protection circuit

ProductDescriptionReleaseType
ITI 16

Instruction manual

NTA47095-000Apdf
LTCTM

Programming software for digital transmitter network

G.01exe
LW1

Data management software under Windows©

Compliant with LAN 32 byte network

U.03exe
LWTM

Data management software under Windows© and compatible with LAN 32 byte network

U.03exe
VISULOG

Instruction manual

pdf
VISULOG WEB

For remote access to VISULOG software

1.5Bexe
