ITI 17

picto fleche Programmable digital panel meter for measurements of temperature and process signals

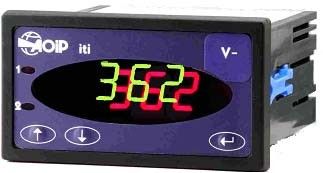

ITI 17 is a programmable digital panel meter 96 x 48 mm for process, resistive probes and thermocouple measurements.

Ask a question
Get a call

ITI 17 is a programmable digital panel meter 96 x 48 mm for process and temperature by resistive probes and thermocouple measurements. The software enables additional linearization to be set up for thermocouples type B, C, E, L, Mo, N, PI, R, U and Pt100, Pt25 and Pt50. The connection of the probes is done using a removable screw connector.

  • Panel meter size: 96 mm x 48 mm
  • IP65 protected
  • Two-color display for color change on alarm or pre-alarm
  • Process signal measurement (0/4-20 mA, 0/100 mV /1 V / 10 V)
  • Temperature measurement by Pt100 from -200°C to +850°C (0.01°C resolution up to 200°C) or by thermocouple type K, T, J or S
  • Resistance measurement (10 mOhms to 400 Ohms)
  • 2 different power supplies available:
    • 90 to 260 V~ 47/420 Hz and 115 to 300 V-
    • 20 to 60 V- and 18 to 44 V~ 47/420 Hz

3 versions:

  • Version 0 : Panel meter only
  • Version 1 : 2 limit relays, 1 programmable analogue output (4-20 mA or 0-10 V), 1 digital output RS232/485, MODBUS/ASCII
  • Version 2 : 2 limit relays



Process signal measurement indicator

TypeRangeActual rangeResolutionAccuracy (1 year)
(23°C ±5°C)
Comments
DC voltage60 mV
100 mV
1 V
10 V
100 V
-6 to 75 mV
-15 to +160 mV
-0.1 to +1.2 V
-1 to +12 V
-10 to +120 V
1 µV
10 μV
100 µV
1 mV
10 mV
0.1% + 10 μV
0.1% + 20 μV
0.1% + 200 μV
0.1% + 2 mV
0.1% + 20 mV
Input impedance
10 MΩ
10 MΩ
1.11 MΩ
10 MΩ
DC current20 mA
4-20 mA
-2 to 24 mA
+3.2 to 24 mA
1 µA0.1% + 4 µALoop power: 24 V ±10% @ 20 mA
Applicable maximum current: 50 mA
Resistance150 Ω
400  Ω
0 to 160 Ω
0 to 420 Ω
10 mΩ0.1% + 20 mΩ
0.1% + 50 mΩ
3 wire measurement: add 0.05% L/Ω of leads

RTD temperature indicator

RangeActual rangeResolutionAccuracy over 1 year
(23°C ±5°C)
Comments
150°C-200 to +150°C0.01°C0.1% RDG + 0.05°C3-wire measurement: add (0.05% RDG + 0.15°C)/Ω of leads
850°C-200 to +850°C0.1°C0.1% RDG + 0.2°C

Linearization compliant to EN 60751/1995 standard for platinum probe 100 Ω at 0°C and international scale of temperature ITS-90.

Thermocouple temperature indicator

TypeRange (1)ResolutionAccuracy over 1 year
(23°C ±1°C) (2)
Tc K-200 to -100°C
-100 to +1370°C
0.1°C±0.5% RDG
0.1% RDG + 0.3°C
Tc T-200 to -100°C
-100 to +400°C
0.1°C±0.5% RDG
0.1% RDG + 0.3°C
Tc J-200 to -100°C
-100 to +1200°C
0.1°C±0.4% RDG
0.1% RDG + 0.2°C
Tc S-50 to +300°C
+300 to 1768°C
1°C±3°C
0.1% RDG + 1°C

Uncertainty due to the internal reference junction: ±1°C
Uncertainty due to the use of an external reference junction (AN8002): ±0.2°C typical and 0.5°C max.
Linearization compliant to EN 60584-1/1995 standard and international scale of temperature ITS-90.
Possibility to add other thermocouples via software

Further features

Measurement on potentiometersPossible
Measurement holdShort-circuit on the rear panel
StatisticsMemorizing of maximum and minimum values
Alarms2 pre-alarm thresholds and 2 alarm thresholds with acknowledgment
Programmable thresholds and relaysIn addition to the front LED indication, 2 relays can be used on alarms.
Breaking capacity from the relays: 5 A / 250 V~, 1,250 VA or 5 A / 30 V-, 150 W max
Analogue outputProgrammable in 0-10 V or 0-20 mA
- Resistance of load: ≥ 1 kΩ sur 10 V, ≤ 800 Ω sur 20 mA
- Insulation input/output: 60 V, except if the ITI supplies the sensor
- Accuracy: ±(0.1% + 5 mV or 10 μA)
- Resolution: 4,000 pts
 - Programmable in 2 points by the keyboard or software
Digital ouptutProgrammable digital output by keyboard allowing communication in ASCII or MODBUS RTU for network applications
When connected in network to transmitters or AOIP data acquisition systems and a PC equipped with AOIP softwareLW1, the instrument will display measurements in real or remote time in the form of synoptic, curves, numerical bargraphes, tables.
ScalingLinear scaling in two points or linearization in 3 to 22 points
Sampling rate2.5 samples / s

General specifications

Size104.5 x 57.5 x 101 mm
Weight160 g
DisplayTwo-color display green / red with change of color on alarm or pre-alarm
From -19,999 to 99,999 points, height: 14 mm
Supply230 V at ±10% (50 / 60 Hz)
Other power supplies available in option

Environmental specifications

Reference range23°C ±5°C (45 to 75 % w/o condensing)
Operating reference range0 to 50°C (RH: 20 to 80 % w/o condensing)
Limit operating range-10°C to +50°C
Storage conditions-30°C to +70°C (RH: 10 to 80 % w/o condensing)
IP protectionIP40 in ABS case
IP65 over front panel

Safety specifications

ClassIn accordance with EN 61010-1
Category II, pollution 2
Rated voltage150 V
EMC conformityImmunity:

  • EN 50082-1/1992

Conducted and radiated emissions:

  • EN 55022, class B



Instrument:

Ordering reference code: ITI17-7-Power supply-Option code-Instruction manual

Power supply:

20 to 60 VDC and 18 to 44 VAC – 47 / 420 Hz            5

115 to 300 VDC and 90 to 260 VAC – 47 / 420 Hz      8

Option code:

Without                                                                 0

Alarm+ Analogue output+ RS MODBUS ASCII output  1

Alarm only                                                             2

Instruction Manual:

French                                                                  F

English                                                                  G

Accessories:

AN8002                 Cold Junction Compensation Module

ER42062-001          RC protection circuit
