Solutions in instrumentation

picto fleche Customized solutions in instrumentation

For any specific requirements in instrumentation, our staff will be pleased to support you from the definition of specifications to the delivery of a suitable turn-key measurement solution.

Ask a question
Get a call

For any specific requirements in instrumentation, our staff will be pleased to support you from the definition of specifications to the delivery of a suitable turn-key measurement solution.

Here are the fields for which AOIP can bring its know-how and skills:

  • Temperature:
    • Dried food, seeds…
    • Construction materials : concrete, cement…
    • Metal parts
    • Chemicals
    • Humidity:
      • Paper, wood, cement, glue…
      • Chemicals
      • Dried food, seeds…
      • Soils, sand
      • Distance:
        • Thickness variation (metal, glue…)
        • Non-contact distance measurement
        • Surface flatness
        • Wobbling, dynamic displacement
        • Process signals:
          • Vehicles (CAN bus…)
          • Chemicals
          • Sensor technology

An absolute expertise

  • Definition of specifications with the customer
  • Choice or design of the system parts
  • Choice or design of the data processing software
  • Implementation of the system in the customer environment
  • Training
  • Maintenance of the system

schema

Wide fields of applications

Our expertise applies on various sectors and fields of application:

  • Energy
  • Pharmacy
  • Aircraft industry
  • Food processing
  • Equipment for production
  • Equipment for test bench
  • Automotive

Examples of systems developed by AOIP

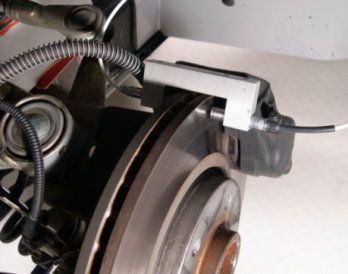

Non-contact measurement of disk brake performance features

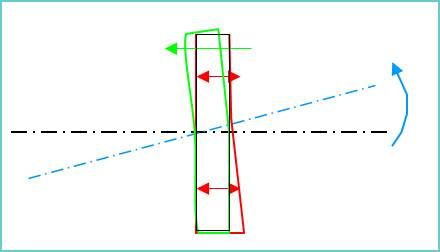

Requirements: Performance (braking efficiency, brake life time...) depends on:

  • Rotation Thickness Variation (RTV)): Not even and steady disk brake thickness
  • Run out: Axis shift during rotation
  • Wobbling: Unveven rotation or movement

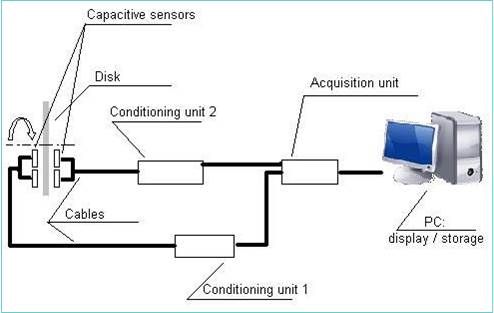

Solution:

  • Two or more capacitive sensors
  • Two or more conditioning units
  • Multi-channel data acquisition unit
  • Real-time processing and easy-to-customize data management software

Application fields:

  • Automotive: disk brake manufacturers
  • Manufacturers of test bench: ageing test bench, automate non-contact distortion measurement

Humidity control inside bulk

Requirements:

  • High accurate and sensitive humidity measurement inside bulk
  • System adapted to field environment
  • Measurement allowed up to water saturation

Solution:

  • Two or more capacitive sensors
  • Two or more conditioning units
  • Multi-channel data acquisition unit
  • Real-time processing and easy-to-customize data management software

Some solutions already exist on the market to measure humidity, although with some drawbacks:

Infra-red technology: Surface test only
Impedance technology:Little accurate solution due to simple phase test and only suitable for laboratory measurements

Application fields:

  • Food processing: Producers of dried food, powders...
  • Agriculture: Optimisation of irrigation, seed depth...
  • Plastic industry: Control of solids content of plastic granules...
  • Pharmacy: Research on humidity level optimisation, control of storage conditions, compliance to drug safety standards...
  • Material: Paper, wood, cement, sand, phosphate...

Optimisation of compressor and turbine efficiency

Requirements:

  • High frequency acquisition (up to 300 kHz) of distance values
  • Very accurate data acquisition system
  • Dedicated software

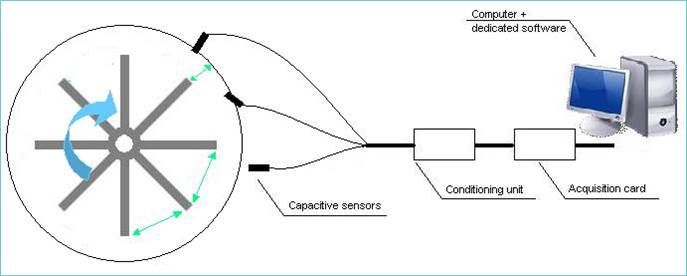

Solution:

  • Two or more capacitive sensors
  • Two or more conditioning units
  • Multi-channel data acquisition unit
  • Real-time processing and easy-to-customize data management software

Application fields:

  • Energy / Aircraft: Manufacturers of turbines, blades, compressors...
  • Aircraft: Test of turbine design, blade tip clearance, blade tip timing, control of blade safety...
