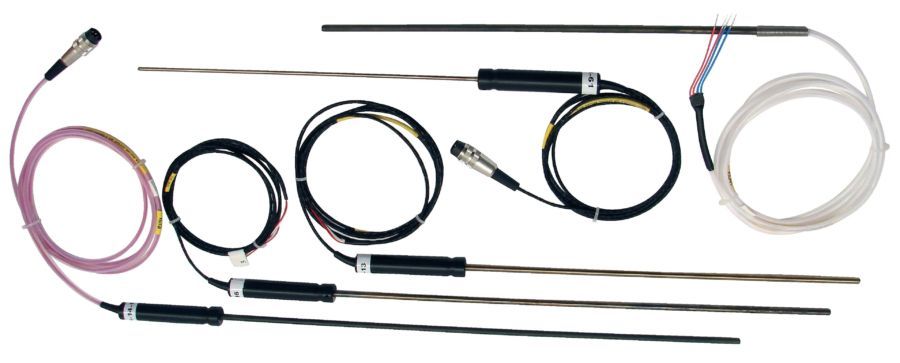

picto fleche Semi Standard Platinum Resistance Thermometer, -200°C to 670°C

These industrial platinum resistance thermometers are ideal for field and lab use. Suitable for use as working standards in dry blocks and liquid baths or as high accuracy probes for our range of true temperature indicators.

Ask a question
Get a call

These industrial platinum resistance thermometers are working standards ideal for field and lab use. Suitable for use as working standards in dry blocks and liquid baths or as high accuracy probes for our range of true temperature indicators.

All the thermometers are metal sheathed and both less fragile and more affordable than the 909 range of true Standard Platinum Resistance Thermometers used in laboratories.

All the thermometers use handmade coil wound platinum sensing elements to give high accuracy and low drift. Isotech’s UKAS accredited lab can calibrate to the smallest of uncertainties.

Key features:

  • High stability reference probes
  • High stability Platinum coil element
  • Wide operating range

General specifications

R0 100 Ω ±0.05 Ω
Alpha 0.003850 ±0.000005
Standard IEC 60751
Stability 0.010 Ω / year
Recommended current 1 mA
Self heating at 1 mA 0.004°C
Connection Four wire
Max handle temperature 80°C
Calibration Optional UKAS calibration at extra cost

General purpose probes

Reference Temperature range Diameter Length (A) Sensing length (B) Handle (C) Cable Application
935-14-112 -50 to 250°C 3 mm 225 mm 6 mm No handle 2 m PTFE General purpose
With TTI-10
935-14-61 -50 to 250°C 4 mm 300 mm 6 mm 19 x 120 mm 2 m PTFE Fast response time
Low stem conduction
935-14-13 -196 to 250°C 6 mm 350 mm 25 mm 25 x 115 mm 2 m PTFE Low temperature
935-14-113 -100 to 250°C 6 mm 350 mm 25 mm 19 x 120 mm 2 m PTFE General purpose
935-14-16 -100 to 450°C 6 mm 450 mm 25 mm 19 x 120 mm 2 m PTFE General purpose
935-14-116 -100 to 450°C 6 mm 350 mm 25 mm 19 x 120 mm 2 m PTFE General purpose
With MilliK
935-14-72 -50 to 670°C 6 mm 375 mm 25 mm No handle 2 m PTFE With Jupiter / Gemini
935-14-98 -50 to 350°C 4 mm 300 mm 8 mm No handle 2 m PTFE Low stem conduction

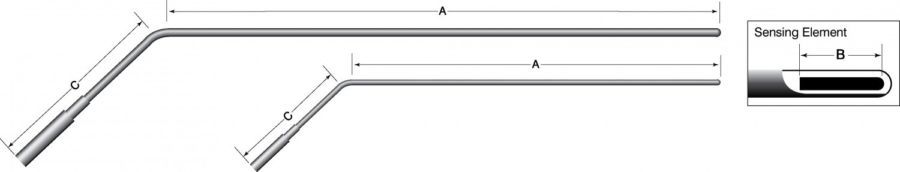

Angled probes

(Angled head provides maximum clearance at top of calibration bath)

Reference Temperature range Diameter Length (A) Sensing length (B) Handle (C) Cable Application
935-14-82 -50 to 250°C 4 mm 165 mm 6 mm 50 mm 1.5 m PTFE With Europa / Venus / Calisto
935-14-85 -50 to 250°C 6 mm 385 mm 25 mm 35 mm 0.54 m PTFE With Oceanus 6

Working industrial standards

Reference Temperature range Diameter Length (A) Sensing length (B) Handle (C) Cable
935-14-95L -200 to 165°C 6 mm 480 mm 25 mm 25 x 115 mm 2 m PTFE
935-14-95H -80 to 670°C 6 mm 480 mm 25 mm 19 x 120 mm 2 m PTFE

Typical uncertainties of 935 PRTs with UKAS calibration

Temperature °C 935-14-95L 935-14-61
935-14-13
935-14-13 935-14-95H
935-14-72
935-14-16
935-14-95H
935-14-72
-196 25 mK  25 mK
-80 20 mK 20 mK  25 mK  25 mK
-50 15 mK 15 mK 15 mK 20 mK 20 mK
0 10 mK 10 mK 10 mK 15 mK 15 mK
50  10 mK 10 mK 10 mK 15 mK 15 mK
156  10 mK 10 mK 10 mK 15 mK  20 mK
232 15 mK 15 mK 20 mK 25 mK
420 40 mK 40 mK
550 50 mK
660 50 mK

935                       Working Standard Platinum Resistance Thermometers, -200°C to 670°C

Delivered in standard with:

  • Carrying case

General purpose probes:

935-14-112             Semi standard Pt100 (-50°C to 250°C), with carrying case

935-14-61               Semi standard Pt100 (-50°C to 250°C), with carrying case

935-14-13               Semi standard Pt100 (-196°C to 250°C), with carrying case

935-14-113             Semi standard Pt100 (-196°C to 250°C), with carrying case

935-14-16               Semi standard Pt100 (-100°C to 450°C), with carrying case

935-14-116             Semi standard Pt100 (-100°C to 450°C), with carrying case

935-14-72               Semi standard Pt100 (-50°C to 670°C), with carrying case

935-14-98               Semi standard Pt100 (-50°C to 350°C), with carrying case

Angled probes:

(Angled head provides maximum clearance at top of calibration bath)

935-14-82               Semi standard Pt100 (-50°C to 250°C), with carrying case

935-14-85               Semi standard Pt100 (-50°C to 250°C), with carrying case

Working industrial standards:

935-14-95L             Semi standard Pt100 (-200°C to 165°C), with carrying case

935-14-95H            Semi standard Pt100 (-80°C to 670°C), with carrying case

Connexion options:

Ordering code example: 935-xx-xx/BW

BW                       Bare wires (will be supplied unless otherwise specified)

TTI                        LEMO connector for milliK, TTI-1 to TTI 7

TTI-b                     LEMO connector for TTI 22

DB                        Connector for dry block calibrators model SITE
