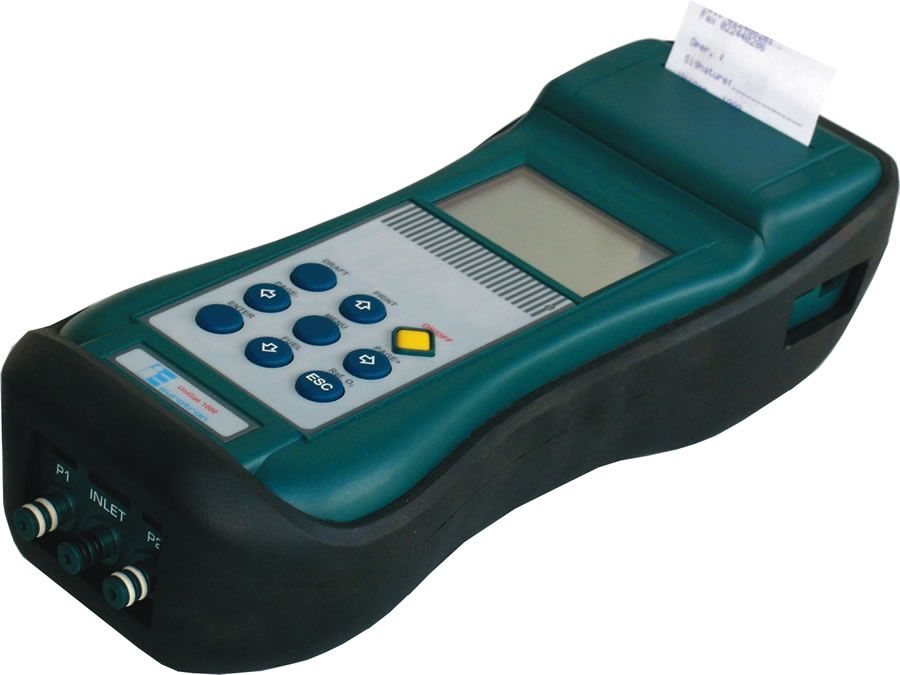

UniGas 1000
Hand-held basic combustion gas analyzer with 2 sensors
UniGas 1000+ is a basic flue gas analyzer for 2 gases: O2 & CO with electrochemical sensors, plus CO2 calculated.
UniGas 1000+ is a basic flue gas analyzer for 2 gases: O2 & CO with electrochemical sensors, plus CO2 calculated.
UniGas 1000+ is a basic flue gas analyzer for 2 gases: O2 & CO with electrochemical sensors, plus CO2 calculated.
The instrument is delivered with a built-in rugged impact printer. The analyzer and its internal printer are powered by the same internal battery. Charger is supplied as standard.
Smoke index measurement is performed by using the optional external hand pump (ref: F7828000). The results can be stored in the internal memory and printed on the report.
A procedure can be selected to monitor the CO in ambient air using the internal sensors. An internal program allows CO max measurement in atmospheric boiler room test with 15 logged values.
Measured parameter | Range | Resolution | UniGas 1000 |
O2 | From 0 to 25% vol. | 0.1% | EC |
CO | From 0 to 8000 ppm | 1 ppm | EC |
CO2 | From 0 to 99.9% | 0.1% | Calc |
Efficiency | From 1 to 99.9% | 0.1% | Calc |
Excess air | From 1 to infinite | 0.01% | Calc |
Pressure / Draft | From -10 to 120 hPa | 0.01 hPa | ✓ |
Tair/Tgas | -10...100°C/ 0...600°C | 0.1°C | Pt100 / Tc K Calc |
Zero calibration | Automatic calibration procedure at instrument power-on. Fresh air inlet with electrovalve and separate pneumatic circuit |
Self-diagnosis | Sensor efficiency test with diagnostic page |
Sampling pump | 1.4 l/min - 100 mbar |
Smoke measurement | Using the external manual pump |
Printer | 24 columns with 58 mm paper roll Autonomy: 40 reports with full battery |
Size | 115 x 90 x 330 mm |
Weight | 1.1 kg with battery and printer |
Power supply | 110 / 230 VAC (50/60 Hz) |
Battery | Type: Rechargeable Li-ION Battery life: 6 hours continuous use Charging time: 8 h at 90% |
Communication ports | RS 232 |
Operating reference range | From -5°C to +45°C (up to 50°C for short time) |
Storage temperature limits | From -20 to +50°C (3 months max. at temperatures exceeding the operational limits) |
Ordering code structure: 7820 – A – B – C – D – E – F / X
Please select the required options from tables A, B… below to define the right device reference.
7820 UniGas 1000
Standard delivery includes:
Table A – Sensor n°1(1 choice only)
1 O2 (0 - 25%)
Table B – Sensor n°2 (1 choice only)
2H CO (0 - 8,000 ppm) H2 compensated + Dilution system
Table C – Sample probes - including water trap and line filter (1 choice only)
0 None
1 180 mm sampling dual hose probe BB610051 (Gas + Draft) - max 800°C
2 300 mm sampling dual hose probe BB610046 (Gas + Draft) - max 800°C
Table D – Options (P is mandatory)
P Built-in impact printer
Table E – Mains adapter / Charger (1 choice only)
1 115 V – 50 / 60 Hz – USA plug
3 230 V – 50 / 60 Hz – UK plug
4 230 V – 50 / 60 Hz – European plug
5 100 V – 50 / 60 Hz – USA / Japan plug
Table F – Calibration certificate
1 Factory certificate (gas + pressure + temperature)
Table X – Customization
INTL English language - manual in English - English Keyboard
USA English language - manual in English - English Keyboard
FR French language - manual in French - French Keyboard
HOL Dutch language - manual in English - English Keyboard
POL Polish language - manual in English - English Keyboard
SPA Spanish language - manual in English - English Keyboard
UK English language - manual in English - English Keyboard
BB610051 180 mm sampling dual hose probe BB610051 (Gas + Draft) - max 800°C
BB610046 300 mm sampling dual hose probe BB610046 (Gas + Draft) - max 800°C
BB830018 Pt100 remote air temperature sensor, with 2 m cable and positioning cone
F2132100 130 mm air TC K-type probe
F2137100 130 mm contact TC K-type probe
F2139000 Pipe Velcro TC K-type probe
EE300088 Single hose pressure probe and burner hose kit
F7828000 Manual pump for smoke index measurements + 40 filters + table
BB260166 DBGas 2004 standard software
EE700476 USB adaptator cable
BB880028 ABS rigid carrying case
BB880043 Vinyl carrying case with shoulder strap
EE880047 Rubber holster with magnetic support
EE340006 Printer paper roll - Minimum order of 10 pcs
EE490002 Printer ribbon - Minimum order of 3 pcs
EE650011 Filter for soot (40 pieces per pack)
EE650074 Filter cartridge for EE650076 / EE 650082 water trap + filter - Minimum order of 10 pcs
Product | Description | Release | Type |
---|---|---|---|
DBGas 2004 | Data management software under Windows© |
4.0.18 | zip |
DBGas 2004 | Instruction manual |
MM850523-K12 | |
GasConfig | Configuration software under Windows© |
2.0.22 | zip |
UniGas 100 P+T | Instruction manual |
||
UniGas 1000 | Instruction manual |
||
UniGas 1000 EN | User guide |
||
UniGas 1000 PT EN | User guide |
