CALYS 75

picto fleche Field documenting multifunction calibrator

CALYS 75 is a field documenting multifunction calibrator within CALYS range. It is the perfect tool for advanced process maintenance and use on test bench in all industries. Suitable for all field and lab measurements, it can simultaneously measure and generate over two isolated channels various signals of temperature, resistance, process, pressure and frequency in one single instrument.

Ask a question
Get a call

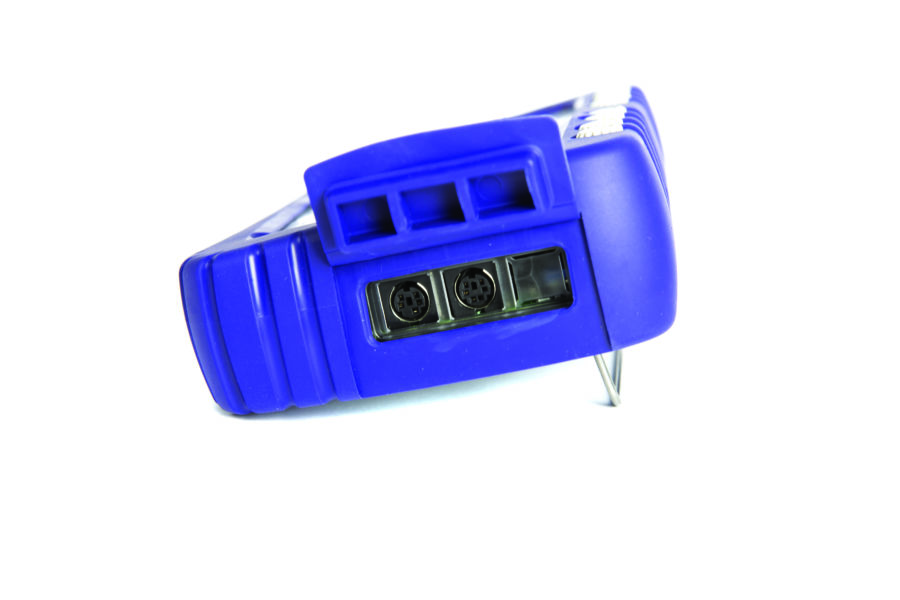

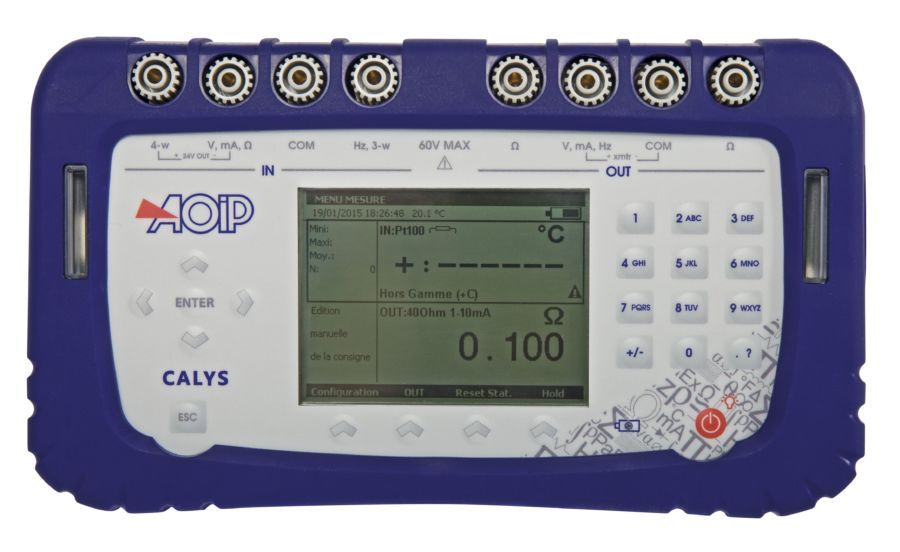

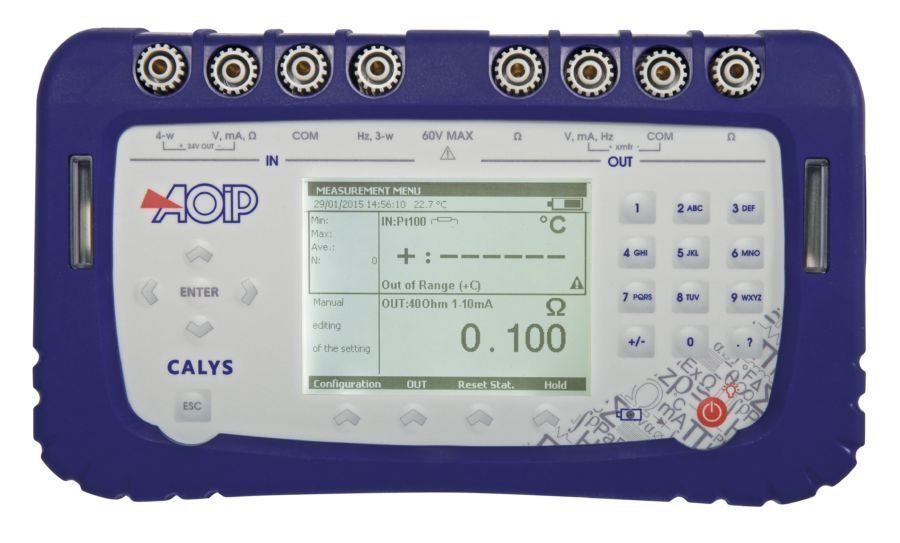

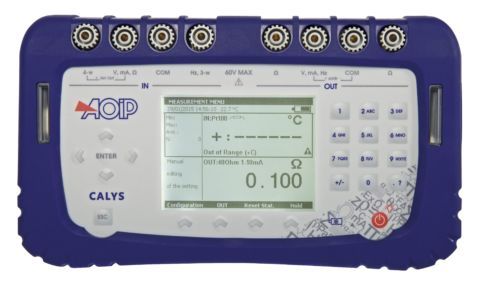

CALYS 75 is a field documenting multifunction calibrator of high accuracy within CALYS range. It is the perfect tool for advanced process maintenance and use on test bench in all industries. Suitable for all field and lab measurements, it can simultaneously measure and generate over two isolated channels various signals of temperature, resistance, process, pressure and frequency in one single instrument.

Providing extended functionalities (temperature simulation, scaling, steps, synthesizer, statistical functions…), CALYS 75 makes advanced data exploitation and full data traceability easier, as well as quick access to functions by menus.

The instrument simultaneously measures and simulates:

  • Temperature: Up to 0,014% RDG
  • Resistance: Up to 0,012% RDG, 4 KΩ range
  • Current: Up to 0,0175% RDG, 50 mA range + 24 V loop supply
  • Voltage: Up to 0,013% RDG, 50 V range
  • Frequency: Up to 0,005% RDG, 20 KHz range (10 KHz in simulation)
  • When used with an external pressure module (ref. ACL433), CALYS 75 can measure and simulate pressure (comparison calibration with a pressure pump).


calys60-calibration

Using this user-friendly instrument, calibration tasks can be quickly carried out over the whole process chain. Take the 900 g documenting process calibrator to the field with you during the whole week with 10 calibration procedures stored in the device. Run the procedure after connecting the probes to the instrument (Easy connect system®) and save the results for onsite easy and quick calibration. Back to the office, you can then upload the data on a computer in order to issue customized calibration certificates with dedicated calibration software DATACAL.



IP 54, fully protected by an antichoc rubber holster, CALYS 75 integrates "easyconnect" terminals and a wide backlite display that makes it easy to use in any severe or dark conditions.

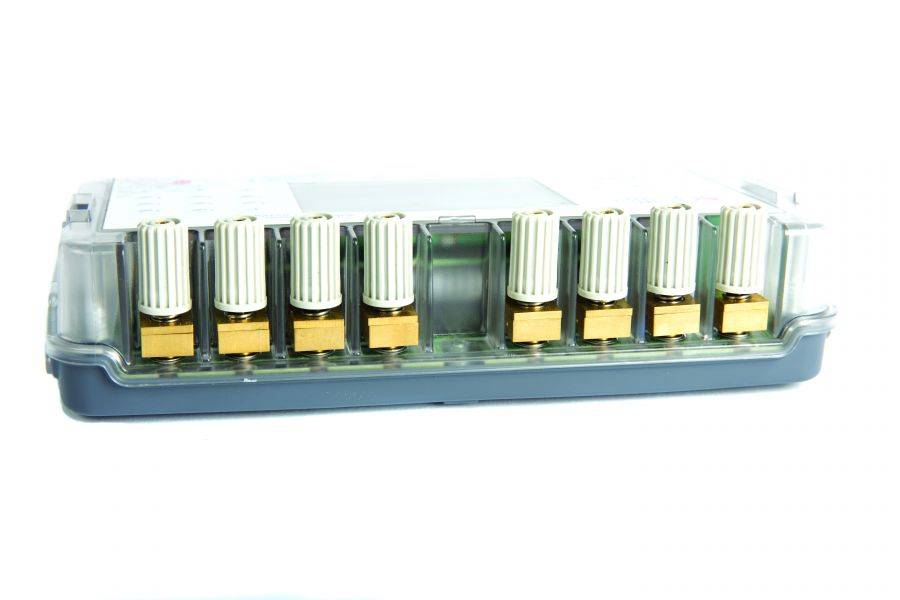

Easy connection system

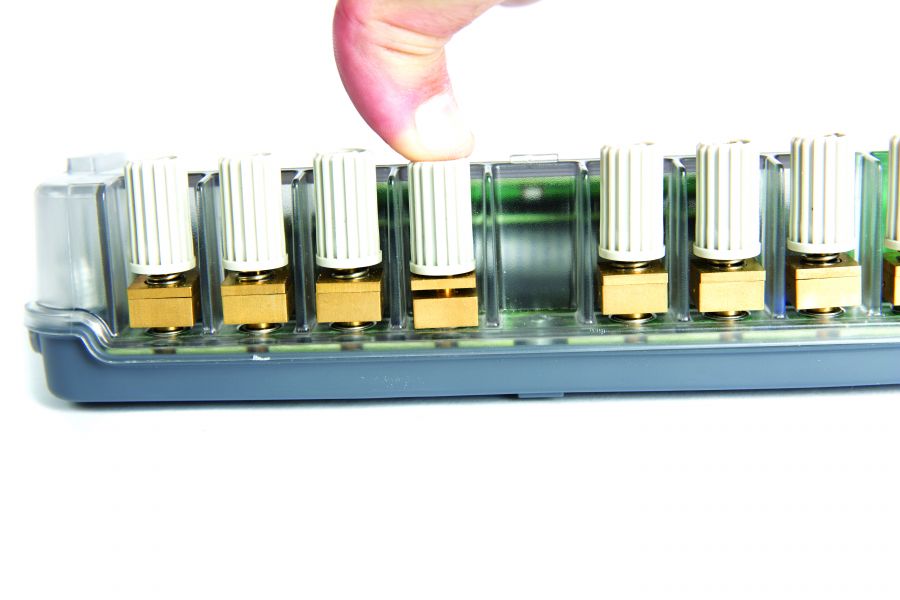

CALYS-EasyconnectConnect your probes by simply pushing on the terminal top and insert wires of up to 3 mm or 10 AWG diameter and compensated thermocouple connectors.

Wires are held tight between two brass plates ensuring thermal stability and a very good cold junction compensation for thermocouples.

This system also enables 4 mm banana plugs and security connectors to be connected on the terminal top.





CALYS series, 4 models from basic use to advanced performances

Specifications CALYS 50 CALYS 75 CALYS 100 CALYS 150
Top accuracy 200 ppm 130 ppm 50 ppm
Temperature accuracy Thermocouples (14)
RTDs (12)
0.013% RDG for Tc K
0.012% RDG
0.01% RDG for Tc K
0.01% RDG
0.005% RDG for Tc K
0.006% RDG
DC current
+ Loop supply 24 V
Range
Accuracy
50 mA
0.0175% RDG
100 mA
0.007% RDG
DC voltage Range
Accuracy
50 V IN / 20 V OUT
0.013% RDG
50 V
0.013% RDG
50 V
0.010% RDG
50 V
0.005% RDG
Frequency Range
Accuracy
20 KHz IN / 10 KHz OUT
0.005% RDG
100 KHz
0.01% RDG
Resistance Range
Accuracy
4000 Ω
0.012% RDG
4000 Ω
0.010% RDG
50 KΩ
0.006% RDG
Pressure Range
Accuracy
Relative pressure: 30 bar / Absolute pressure: 1,000 bar
0.05% RDG
Compliance to standards 21 CFR Part 11
NADCAP Heat treatment AMS 2750
Additional functions Advanced data exploitation: Scaling, relative measurement, simulation of ramps and steps, synthetizer, square root, statistical functions
Transmitter function
Additional functions Switch test
Calibration of transmitters
Additional functions Comparison calibration
HART: Digital calibration and data transfer
Calibration of thermistors
Software DATACAL calibration software for configuration and data management
Memory 10,000 data stored and recalled on screen as curve or list





Specifications and performances in temperature @23°C ±5°C

Uncertainty is given in % of reading (CALYS 75 display) + fixed value.

Resistive probes: Measurement and simulation

Sensor Range (Input and Output) Resolution Accuracy / 1 year (Measurement) Accuracy / 1 year (Simulation)
Pt50 (α = 3851) -220°C to +850°C 0.01°C 0.012% RDG + 0.06°C 0.014% RDG + 0.18°C
Pt100 (α = 3851) -220°C to +850°C 0.01°C 0.012% RDG + 0.05°C 0.014% RDG + 0.12°C
Pt100 (α = 3916) -200°C to +510°C 0.01°C 0.012% RDG + 0.05°C 0.014% RDG + 0.12°C
Pt100 (α = 3926) -210°C to +850°C 0.01°C 0.012% RDG + 0.05°C 0.014% RDG + 0.12°C
Pt200 (α = 3851) -220°C to +600°C 0.01°C 0.012% RDG + 0.12°C 0.014% RDG + 0.33°C
Pt500 (α = 3851) -220°C to +850°C 0.01°C 0.012% RDG + 0.07°C 0.014% RDG + 0.18°C
Pt1000 (α = 3851) -220°C to +850°C 0.01°C 0.012% RDG + 0.05°C 0.014% RDG + 0.08°C
Ni100 (α = 618) -60°C to 180°C 0.01°C 0.012% RDG + 0.03°C 0.014% RDG + 0.08°C
Ni120 (α = 672) -40°C to +205°C 0.01°C 0.012% RDG + 0.03°C 0.014% RDG + 0.08°C
Ni1000 (α = 618) -60°C to +180°C 0.01°C 0.012% RDG + 0.03°C 0.014% RDG + 0.08°C
Cu10 (α = 427) -50°C to 150°C 0.01°C 0.012% RDG + 0.18°C 0.014% RDG + 0.1°C
Cu50 (= 428) -50°C to +150°C 0.01°C 0.012% RDG + 0.06°C 0.014% RDG + 0.15°C

Resistive probes measurements in 2, 3 or 4 wires: automatic recognition of number of connected wires, with indication on screen
Accuracies are given for 4-wire mounted probes
Take into account particular error of temperature sensor used and implementation conditions
Measuring current: 0.25 mA (Measurement) or from 0.1 to 1 mA (Emission)
Temperature coefficient: < 10% of accuracy /°C

Thermocouples: Measurement and simulation

Type Input range Resolution Accuracy / 1 year (Measurement) Output range Resolution Accuracy / 1 year (Simulation)
K -250 to -200°C
-200 to -120°C
-120 to +0°C
0°C to +1372°C
0.1°C
0.1
0.05°C
0.05°C
0.8°C
0.25°C
0.1°C
0.013% RDG + 0.08°C
-240 to -50°C
-50 to -0°C
+0°C to +1372°C
0.1°C
0.1
0.05°C
0.6°C
0.1°C
0.013% RDG + 0.08°C
T -250 to -200°C
-200 to -120°C
-120 to -50°C
-50 to +400°C
0.1°C
0.05°C
0.05°C
0.05°C
0.7°C
0.25°C
0.1°C
0.013% RDG + 0.08°C
-240 to -100°C
-100 to -0°C
+0 to +400°C
0.1°C
0.05°C
0.05°C
0.4°C
0.1°C
0.013% RDG + 0.08°C
J -210 to -120°C
-120 to +0°C
+0 to +1200°C
0.05°C
0.05°C
0.05°C
0.25°C
0.09°C
0.013% RDG + 0.07°C
-210 to -0°C
+0 to +1200°C
0.05°C
0.05°C
0.2°C
0.013% RDG + 0.07°C
E -250 to -200°C
-200 to -100°C
-100 to -0°C
+0 to +1000°C
0.1°C
0.05°C
0.05°C
0.05°C
0.45°C
0.15°C
0.07°C
0.013% RDG + 0.05°C
-240 to -100°C
-100 to +40°C
+40 to 1000°C
0.1°C
0.1°C
0.05°C
0.25°C
0.1°C
0.013% RDG + 0.05°C
R -50 to +150°C
+150 to +550°C
+550 to 1768°C
0.1°C
0.1°C
0.1°C
0.8°C
0.013% RDG + 0.35°C
0.013% RDG + 0.2°C
-50 to +350°C
+350 to +900°C
+900 to 1768°C
0.1°C
0.1°C
0.1°C
0.5°C
0.013% RDG + 0.35°C
0.013% RDG + 0.2°C
S -50 to +150°C
+150 to +550°C
+550 to +1768°C
0.1°C
0.1°C
0.1°C
0.80°C
0.013% RDG + 0.35°C
0.013% RDG + 0.25°C
-50 to +120°C
+120 to +450°C
+450 to +1768°C
0.1°C
0.1°C
0.1°C
0.8°C
0.013% RDG + 0.35°C
0.013% RDG + 0.25°C
B +400 to +900°C
+900 to +1820°C
0.1°C
0.1°C
0.013% RDG + 0.4°C
0.013% RDG + 0.2°C
+400 to +850°C
+850 to +1820°C
0.1°C
0.1°C
0.013% RDG + 0.4°C
0.013% RDG + 0.2°C
U -200 to +660°C 0.05°C 0.15°C -200 to +600°C 0.05°C 0.15°C
L -200 to +900°C 0.05°C 0.2°C -200 to +900°C 0.05°C 0.2°C
C -20 to +900°C
+900 to 2310°C
0.1°C
0.1°C
0.25°C
0.013% RDG + 0.15°C
-20 to +900°C
+900 to 2310°C
0.1°C
0.1°C
0.25°C
0.013% RDG + 0.15°C
N -240 to -190°C
-190 to -110°C
-110 to +0°C
+0 to +1300°C
0.1°C
0.1°C
0.05°C
0.05°C
0.5°C
0.15°C
0.08°C
0.013% RDG + 0.06°C
-240 to -190°C
-190 to -110°C
-110 to +0°C
+0 to +1300°C
0.1°C
0.1°C
0.05°C
0.05°C
0.3°C
0.15°C
0.08°C
0.015% RDG + 0.06°C
Platinum -100 to +1400°C 0.05°C 0.3°C -100 to +1400°C 0.05°C 0.3°C
Mo +0 to +1375°C 0.05°C 0.013% RDG + 0.06°C +0 to +1375°C 0.05°C 0.013% RDG + 0.06°C
NiMo/NiCo -50 to +1410°C 0.05°C 0.013% RDG + 0.30°C -50 to +1410°C 0.05°C 0.013% RDG + 0.3°C

Thermocouples: D and G, for specifications, refer to the instruction manual (Available on request)
Accuracy is given for reference @ 0°C.
When using the internal reference junction (except couple B) add an additional uncertainty of 0.2 °C at 0 °C.
It is possible (thermocouple B excepted) to choose by programming the cold junction localization: External at 0°C, internal (temperature compensation of instrument’s terminals) or manually entered.
Temperature coefficient: <10% of accuracy /°C
Display unit: °C and F

Specifications and performances in pressure @23°C ±5°C

Pressure: Measurement by external digital sensor

Range 0-1 bar 0-3 bar 0-10 bar 0-30 bar 0-100 bar 0-300 bar 0-1000 bar
Absolute X X X X X X X
Relative X X X X

Available in relative, absolute and differential pressure.
Connector: ¼ gas
Resolution: 0.02% FS
Accuracy:
-0.05% FS from 10 to 40°C
- 0.1% FS from -10 to +10°C and from 40 to 80°C

This digital pressure module ACL433 is connected to CALYS 75 through RS485 serial cable to the digital input connector. All data are digital. Measurements are compensated in temperature by a polynomial correction implemented into the firmware at factory.

Specifications and performances in process @23°C ±5°C

DC current: Measurement

With or without loop supply

Range Res. Accuracy / 1an Rin
0-20 mA 1 µA 0.0175% RDG + 2 µA < 25 Ω
4-20 mA 1 µA 0.0175% RDG + 2 µA < 25 Ω
±50 mA 1 µA 0.0175% RDG + 2 µA < 25 Ω

Temperature coefficient: < 10 ppm/°C beyond reference domain
Loop supply: 24 V ±10%
HART® compatibility: Input impedance Rin = 280 Ω
Display with linear or quadratic scaling

DC voltage: Measurement

Range Res. Accuracy / 1an Rin
100 mV 1 µV 0.013% RDG + 3 µV > 10 MΩ
1 V (1) 10 µV 0.013% RDG + 20 µV > 10 MΩ
10 V 100 µV 0.015% RDG + 200 µV > 1 MΩ
50 V 1 mV 0.015% RDG + 2 mV > 1 MΩ

Temperature coefficient < 7 ppm/°C beyond reference domain
(1) Specification domain: -0.8 V to +1 V

Frequency, counting: Measurement

Range Resolution Accuracy / 1an
20 kHz 0.01 Hz 0.005% RDG

Temperature coefficient < 5 ppm/°C beyond reference domain
Scale unit: Pulse / min and Hz
Trigger level: 1 V
Measurement on frequency signals or dry contacts
Counting will be performed on defined time or infinite time.

Resistance: Measurement

Range Resolution Accuracy / 1an
400 Ω 1 mΩ 0.012% RDG + 10 mΩ
400 Ω 10 mΩ 0.012% RDG + 100 mΩ

Resistance measurement in 2, 3 or 4 wires: automatic recognition of number of connected wires, with indication on screen
Accuracies are given for 4-wire mounted probes
Temperature coefficient: < 7 ppm/°C beyond reference domain
Open circuit terminal voltage: < 10 V
Continuity test: Open circuit for R > 1000 Ω and closed circuit for R < 1000 Ω
Measurement current: 0.25 mA

DC current: Emission

With or without loop supply

Range Resolution Accuracy / 1an
24 mA 1 µA 0.0175% RDG + 2 µA
4-20 mA 1 µA 0.0175% RDG + 2 µA
0-20 mA 1 µA 0.0175% RDG + 2 µA

Temperature Coefficient < 10 ppm/°C beyond reference domain
Settling time: < 5 ms
Specifications given for CALYS configurations in:
- Active mode (+24V ON) 1  Meter in passive mode (+24 V OFF)
- Passive mode (+24 V OFF) 1 Meter in active mode (+24 V ON)
Pre-programmed steps
0%       25%      50%      75%     100%
4-20 mA linear            4          8         12         16        20
0-20 mA linear            0          5         10         15        20
4-20 mA quad             4          5          8         13        20
0-20 mA quad             0        1.25        5       11,25      20
4-20 mA valves    3.8-4—4.2               12               19, 20, 21

DC voltage: Emission

Range Res. Accuracy / 1an Min load
100 mV 1 µV 0.013% RDG + 3 µV 1 kΩ
2 V 10 µV 0.013% RDG + 20 µV 2 kΩ
20 V 100 µV 0.015% RDG + 200 µV 4 kΩ
50 V 1 mV 0.015% RDG + 2 mV 4 kΩ

Noise: 3 ppm (for 0.1 Hz to 10 Hz) and 5 ppm (for 10 Hz to 100 Hz)
Temperature coefficient: < 7 ppm/°C beyond reference domain
Settling time: < 5 ms

Frequency, pulse: Emission

Range Resolution Accuracy / 1an
1000 Hz 0.01 Hz 0.005% RDG
10 kHz 0.1 Hz 0.005% RDG

Temperature coefficient < 5 ppm/°C beyond reference domain

Resistance: Emission

Range Res. Accuracy / 1an Nota
Iext
40 Ω 1 mΩ 0.014% RDG + 3 mΩ
0.014% RDG + 10 mΩ
10 mA
1 mA
400 Ω 10 mΩ 0.014% RDG + 20 mΩ
0.014% RDG + 30 mΩ
10 mA
1 mA
4000 Ω 100 mΩ 0.014% RDG + 300 mΩ 0.1 / 1 mA

Temperature coefficient: < 5 ppm/°C beyond reference domain
Current establishing time: < 1 ms
Iext: Current received by the calibrator

Further features

Scaling in measurement and simulation modes Scaling allows process signals to be displayed in % of FS or in all other units. This function also allows sensors to be corrected after a calibration.
Relative measurement The features allows the following :

  • Programming a reference value different from the one of the instrument (NUL function).
  • Subtracting of constant value by measuring or programming it from a measured value (TARE function).
Simulation menu Simulation value is set by entering value on keypad or by changing the specific digit with the cursor.
Square root In current measurement and simulation, this function allows taking into account a quadratic signal coming from transmitter of type ΔP.
Statistical functions Continuous display of average, minimum and maximum value of the signal under monitoring, as well as number of measurements.
Transmitters tests Transmitters can be verified using user procedures. 20 procedures can be stored as well as test results. Deviation curves are displayed.
Edition of comprehensive test reports.
Switch test In temperature or pressure mode, CALYS 75 can control electronic thermostat and pressostat trigger levels.
Ramps generation Starting, ending and length time values of simple or cyclic ramps can be set to do simulation.
Number of ramps can also be adjusted in case of cyclic ramps for any signals.
Steps simulation 2 modes are available:

  • Program mode: Starting value, number of steps and the length time have to be set
  • Manual mode: User has about a hundred preset values

In current simulation, user will have some additional preset values in function of range and according to 0%, 25%, 50%, 75% and 100% from selected gauge. Choice is done between gauges:
0-20 mA: linear or quadratic
4-20 mA: linear or quadratic

Synthesizer With 100 values manually set, CALYS 75 enables users to draw a generation curve.
Transmitter function CALYS 75 is able to be used as a transmitter. Measurement input is copied on the output with scaling.

General specifications

Size 210 x 110 x 50 mm
Weight 900 g
Display 240 x 320 pixel liquid crystal graphical display with backlite and contrast control
Display of result as table of values or trend curve
Power supply 230 V ± 10 %, 50/60 Hz
Battery Type: Lithium-ion
Charging Time: 3 hours
Lifetime: 8 hours

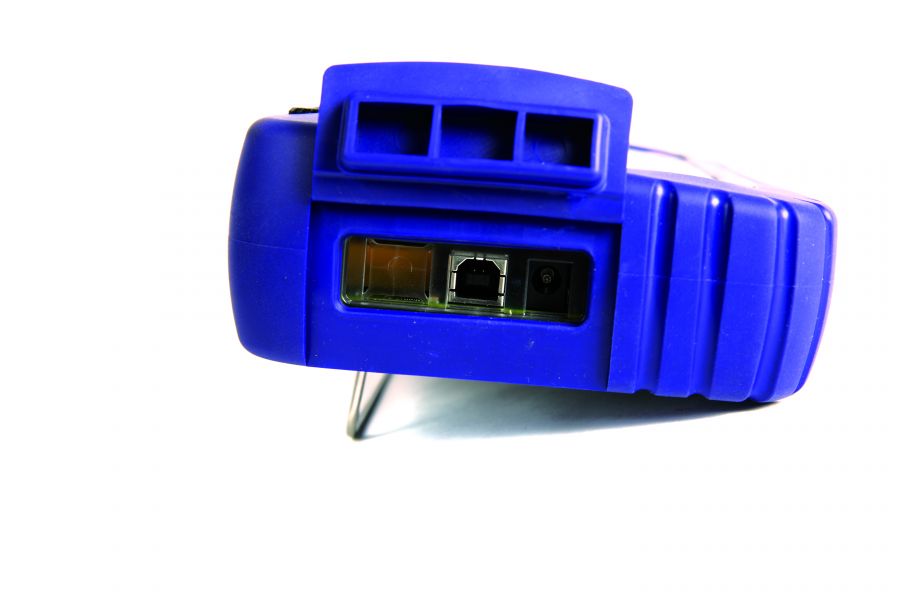

Communication ports USB
Storage capacity Up to 10 full configurations (Input / output type, range…)
10,000 data into one or several measurement campaigns, i.e. more than one week work with configurations, measurements, calibration procedures and reports

Environmental specifications

Reference range 23°C ± 5°C (RH: 45 to 75 % w/o condensing)
Operating reference range -10 to 50°C (RH: 20 to 80 % w/o condensing)
Limit operating range -15°C to +55°C (RH: 10 to 80 % w/o condensing) (70% at 55°C)
Storage temperature limits -30°C to +60°C
Maximum height 0 to 2000 m
IP protection IP54 according to EN60529

Safety specifications

Protections
  • Electronic protection up to 250 V for ‘voltage’ wires
  • Fuse protection for ‘current’ wires
  • Protection against ‘current’ circuit breaking during inductive resistance measurements
Class In accordance with EN 61010-1
Category II, pollution 2
Rated voltage 60 V
Chocks and vibrations EN 61010-1
EMC conformity Immunity:

  • EN 61000-4-2
  • EN 61000-4-3
  • EN 61000-4-5
  • EN 61000-4-6
  • EN 61000-4-11

EN 61000-4-4
Conducted and radiated emissions:

  • EN 55022, class B
  • EN 61000-3-2
  • EN 61000-3-3



Instrument:

CALYS75               On-site documenting multifunction calibrator

Delivered in standard with:

  • User manual
  • Battery charger
  • Set of 6 testing leads
  • Carrying strap
  • Factory test report

Accessories:

ACL433                 External digital pressure sensor for CALYS 75 / 100 / 150

(Absolute or relative pressure)

Different ranges available from 0 to 1,000 bar

Range from -1 -> 1; 3; 10; 30 (absolute or relative pressure)

Range from -1 -> 100; 300; 1,000 (absolute pressure only)

Standard accuracy: 0.05% FS

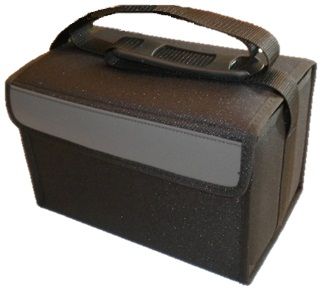

AN6050                 Transport case for CALYS series

ACL9311                Set of 6 measuring cables with removable crocodile clips

ER 49504-000         USB cable

Software:

DATACAL              Calibration software for CALYS 75 / 100 / 150

Supplied with USB cable

Edition of 100 % customizable calibration reports

Certification:

QMA11EN              COFRAC certificate of calibration

With all relevant data points where the device has been tested

Packing information:

Size                       210 mm x 110 mm x 50 mm

Weight without packing   900 g

Product Description Release Type
CALYS 50 / 75 / 100 firmware

Firmware

C.13 exe
CALYS 50 / 75 / 100 INSTR MANUAL

Instruction manual

NTA47227-300A9 NTA47227-300A9 - Mode d
CALYS 50 / 75 / 100 instr manual es/de/it

Instruction manual in German, Spanish and Italian

NTA47227-600A9 NTA47227-600A9 - Mode d
CALYS 50 / 75 / 100 scpi

SCPI commands

V1_0 pdf
calys 50/75/100 user manual pdf
CALYS 75

Sales datasheet

05 / 2015 pdf
DATACAL

Data management software

2.10 exe
DATACAL

Instruction manual in English

2.7 pdf
DATACAL

Manuale d’istruzione

2.7 pdf
