Heat Spy® Monitor R40 Series Fixed Infrared Sensor

picto fleche

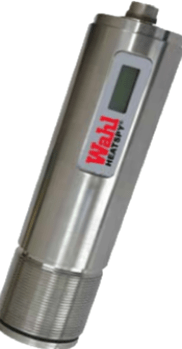

Heat Spy® Monitor R40 Series Fixed Infrared Sensor - image 4 e1610366301841 - AOIP, Instrumentation de test et mesure, contrôle moteur

. Back-lit 5-Digit LCD display with 4-Key Pad for convenient on-site viewing and setting.
. 12-Pin connection cable for simultaneous analog/digital input and output. • . 0-20 or 4-20 mA Linear Current Loop, sub-range programmable, user selectable.

• RS485 for networking, up to 32 sensors.

• Relay for alarm and PLC control, user programmable.

• External Input for reset and parameter adjusting of AVG, PEAK HOLD and VALLEY HOLD.
. Built-in Laser to simplify alignment operation. (Not available on Models P3 or F4)
. Programmable for OEM applications through RS485 for remote setup and monitoring.
. Optional non-contact Thermocouple Type IR tube with extremely long life is available as an alternative to traditional contact thermocouples

Ask a question
Get a call

Overview

A high-tech non-contact infrared sensor, designed to meet all application requirements by delivering high performance and advanced features. A rugged and waterproof IP65 (NEMA 4) one-piece system, with optics and electronics integrated in a single housing, the R40 is easy to install and offers the flexibility to handle almost any application.
The R40 includes signal processing features including Peak Hold, Valley Hold and Averaging, all of which are field adjustable via the keypad or controlled remotely when interfaced with user software.

Sensor Specifications

Ambient temperature

0 ° to 65 ° C, (32 ° to 149 ° F)

with air cooling

0 ° à 120 ° C, (32 ° à 250 ° F)

with water cooling

0 ° to 175 ° C, (32 ° to 350 ° F)

Storage room

-20 ° to 70 ° C (-4 ° to 158 ° F)

Relative humidity

10% to 95% non-condensing

Protection class

IP65 (NEMA-4) (with air purge)

Laser sighting

650 nm <1 mW, Class II

Shock and vibrations

MIL-STD-810D

Housing material

ANSI 304 stainless steel

Dimensions

45 mm in diameter. x 183 mm (1.77 x 7.20 inches) approx.

Weight

0.72 kg (1.58 lb)



Measurement specifications



1M/2M

P34 / MT / F4 / G5 / P7 / G7 / L

Precision 1

± 0.25% of reading

± 0.6% of reading or ± 1 ° C, whichever is greater

Repeatability 2

± 0.10% of reading or ± 1 ° C, whichever is greater

± 0.3% of reading or ± 0.3 ° C, whichever is greater

LCD resolution

1 ° C / 1 ° F

1 ° C / 1 ° F

Response time 3

5 mS

150 mS

Emissivity

0.10 to 1.00

0.10 to 1.00



PHOTODIODE MODELS - Step 1 - Select: Series

R40

Fixed infrared, includes: certificate of conformity and user manual



Step 2 - Select: Spectral range and temperature range

Coded

Spectral range

Temperature range

Application

1ML

1.0µm

400 ° to 1800 ° C, (752 ° to 3272 ° F)

Molten metal / ceramic Hot graphite Ferrous metal

1MM

1.0µm

600 ° to 1800 ° C, (1112 ° to 3272 ° F)

Molten metal / ceramic Hot graphite Ferrous metal

1MH

1.0µm

600 ° to 3000 ° C, (1112 ° to 5432 ° F)

Molten metal / ceramic Hot graphite Ferrous metal

2ML

1,6µm

300 ° to 1400 ° C, (572 ° to 2552 ° F)

Hot metal Hot ceramic Non-ferrous metal

2MM

1.6 µm

400 ° to 1600 ° C, (752 ° to 2912 ° F)

Hot metal Hot ceramic Non-ferrous metal

2MH

1,6µm

400 ° to 2300 ° C, (752 ° to 4172 ° F)

Hot metal Hot ceramic Non-ferrous metal



Step 3 - Select the optics

Coded

Optical

D100

100:1

F100

2mm@100mm

50:1

F300

3mm@300mm

100:1

F500

6mm@500mm

83:1



Model

Step 4 - Select the length of the connection cable

Coded

Cable length

CB1

Cable, 1 meter, (3.28 feet) Standard

CB3

Cable, 3 meters, (9.84 feet)

CB5

Cable, 5 meters, (16.40 feet)

CB8

Cable, 8 meters, (26.24 feet)

CB15

Cable, 15 meters, (49.21 feet)

CBX

Cable, customer specified length (100 m (300 ft) max.)



Series

Spectral range / temperature code

Optical code

Connection cable length code

R40







Insert the codes in the boxes above to construct the part number



THERMOPILE MODELS - Step 1 - Select Series

R40

Fixed infrared, includes: certificate of conformity and user manual

Step 2 - Select: Spectral and Temperature Range

Coded

Spectral range

Temperature difference

Application

P3M

3,43µm

100 ° to 300 ° C, (212 ° to 572 ° F)

Plastics

P3H

3,43µm

100 ° to 500 ° C, (212 ° to 932 ° F)

Plastics

MTM

3,9µm

600 ° to 1300 ° C, (1112 ° to 2372 ° F)

Through the flame

MTH

3,9µm

600 ° to 1500 ° C, (1112 ° to 2732 ° F)

Through the flame

F4M

4.11 to 4.72µm

400 ° to 1500˚C, (752 ° to 2732 ° F)

Flue gas

F4H

4.11 to 4.72µm

400 ° to 1600 ° C, (752 ° to 2912 ° F)

Flue gas

G5M

5,1µm

400 ° to 1600˚C, (752 ° to 2912 ° F)

Glass

G5H

5,1µm

400 ° to 2250 ° C, (752 ° to 4082 ° F)

Glass

P7

7,9µm

40 ° to 600 ° C, (104 ° to 1112 ° F)

Plastics

G7

7,9µm

40 ° to 1000 ° C, (104 ° to 1832 ° F)

Glass

LTL

8 to 14µm

0 ° to 600˚C, (32 ° to 1112 ° F)

Low temperature

LTM

8 to 14µm

0 ° to 800˚C, (32 ° to 1472 ° F)

Medium temperature



Step 3 - Select the optics

Coded

Optical

D30

30 :1

F150

3.5mm@150mm

42:1

F300

8mm@300mm

37.5:1

F600

20mm@600mm

30:1



Step 4 - Select the length of the connection cable

Coded

Cable length

CB1

Cable, 1 meter, (3.28 feet) (Standard)

CB3

Cable, 3 meters, (9.84 feet)

CB5

Cable, 5 meters, (16.40 feet)

CB8

Cable, 5 meters, (16.40 feet) Cable, 8 meters, (26.24 feet)

CB15

Cable, 15 meters, (49.21 feet)

CBX

Cable, customer specified length (100 m (300 ft) max.)



Series

Spectral range / temperature code

Optical code

Connection cable length code

R40







Insert the codes in the boxes above to construct the part number



Accessories


R40 Surface mount brackets
16451 - R40 surface mount bracket, fixed, diameter: 45mm (1.77 ")
16453 - R40 surface mount bracket, adjustable, diameter: 45mm (1.77 ")
Shown



SIGHT TUBES / IR Tube

R40 / 60 series for use with R40 Code D100 optics (D to S: 100: 1).

M30 x 1, length: 11.81 in (300 mm)

16491-1 - SS304, 1500 ° F (800 ° C)

16491-2 - Inconel, 2000 ° F (1100 ° C)

16491-3 - Silicon Carbide, 3000 ° F (1600 ° C)

16491-4 - High purity alumina, (99.8%), 3500 ° F (1900 ° C)

16491-5 - Glassy carbon, 5430 ° F (3000 ° C)

R40 / 60 series IR thermocouple tube for use with R40 Code F300 optics (D to S: 100: 1). M30 x 1, length: 11.81 in (300 mm)

16492-1 - SS304, 1500 ° F (800 ° C)

16492-2 - Inconel, 2000 ° F (1100 ° C)

16492-3 - Silicon Carbide, 3000 ° F (1600 ° C)

16492-4 - High purity alumina, (99.8%), 3500 ° F (1900 ° C)

16492-5 - Glassy carbon, 5430 ° F (3000 ° C)

R40 air purge

16472 - Air purge R40, M44x1.5 to M30x1

PROTECTION WINDOWS R40 Protective windows (includes locking ring)

16465-1 - BK7 protection window for R40 to be used with models 1M and 2M.

16465-2 - Sapphire protection window for R40 for use with models 1M, 2M, MT, F4 and G5.

16465-3 - ZnSe protection window for R40 for use with P3, MT, F4, G5, P7 and LT models.

AIR / WATER COOLING JACKET

R40 air / water cooling jacket

16460 - R40 air / water cooling jacket

supply

16116 - Compact AC / DC power supply unit, 24V, 31W

16117 - AC / DC power supply unit, 24V, 25 to 150 W
