LKS 1000

picto fleche Leakshooter camera - Ultrasonic compressed air, gaz and vacuum leak detector with camera

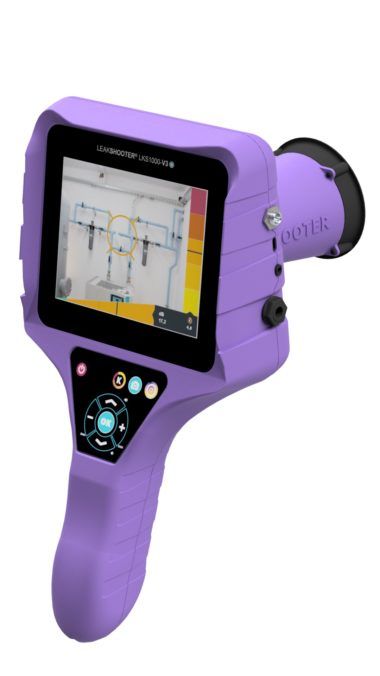

Find out about a unique tool to Hear, See, Measure and Shoot leaks ! The LEAKSHOOTER LKS 1000 totally renews the way to detect air leaks, vacuum leaks and electrical faults !

Ask a question
Get a call

Compressed air is a costly form of energy and 20 to 40% of it is lost through leaks.
Systematically checking for and eliminating leaks can therefore bring considerable energy savings.
Film, view and photograph the precise spot where compressed air, steam, pressurised gas and vacuums are leaking using the LEAKSHOOTER LKS1000 V.2.

No more need to spend hours with headphones on ears to try to locate leaks. As with infrared thermometry, check your network with LEAKSHOOTER:

  • Embedded camera on reception cone
  • Adjustable gain from 50 dB to 110 dB for use in any kind of surroundings
  • Rechargeable Lithium-Ion battery with 5-6 hour operation time
  • 40 kHz internal ultrasound sensor, frequency adjustable from 34 kHz to 46 kHz for smallest leaks
  • Sound bandwidth of 2.5 kHz with stereo headphones
  • User mode without camera (energy saving)
  • Continuous measurement of dB, RMS and MAX, displayed on colour bargraph
  • Dynamic real-time targeting showing the exact location of the ultrasonic source
  • BMP pictures (1,000 to store), with USB connexion for upload on PC

Extremely sensitive, it is capable of finding all leaks, even the smallest, including those no bigger than the size of a syringe needle, at a distance of 15 metres. Leaks can be detected in all types of industrial environment thanks to the possibility of adjusting the gain on the device to filter out all undesirable noise.

LKS1000_no-leakLKS1000_around-a-small-leakLKS1000_targeting-a-small-leakLKS1000_near-a-big-leakLKS1000_targeting-a-big-leak
No leakNear a small leakageFace to a small leakageNear a big leakageFace to a big leakage

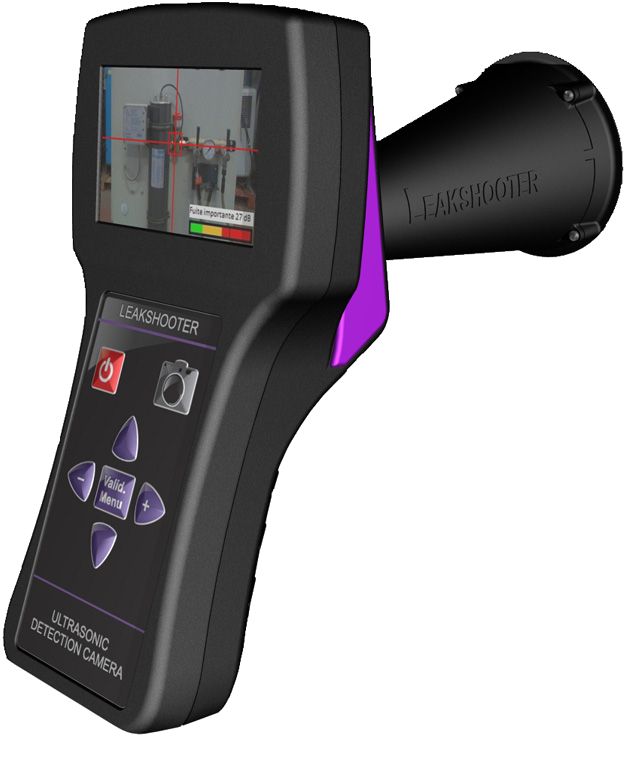

The LEAKSHOOTER LKS1000 V.2 is used like a camera. When it comes near a leak, a dynamic yellow target appears on the large colour screen. The target turns red and shrinks as it approaches the source of the leak. A bar graph at the bottom of the screen accompanies and facilitates the search.
When the device is facing the leak, a cross appears in the centre of the target. It is then possible to photograph and save the precise location of the leak.

For multiple industrial applications:

  • Air leak
  • Leakage of gas under pressure (oxygen, argon, nitrogen…)
  • Vacuum leak (depressurized gas)
  • Test of steam traps (optional accessory)
  • Fault detection on bearings (optional accessory)
  • Electrical default detection such as corona effect, partial discharges due to bad contacts, surface arc tracking caused by pollution…
  • Sealing default detection (sound transparency) with ultrasound transmitter

Each photo is numbered, dated and timed and shows the dB RMS level of the leak.
The photos can be uploaded directly onto a PC via a USB cable (supplied), ready to be attached to inspection reports.
It is still possible, whilst visually searching for a leak, to use the traditional method of leak detection, listening for the hissing sound of the leak using the professional headphones also supplied, which can be plugged directly into the device.
Various accessories are available for the LEAKSHOOTER LKS1000 V.2 enabling it to be used for other applications as well as leak detection:

LKS1000_LKSFLEXDetection in hard to reach areas with sensor :
LKSFLEX, Flexible probe 400 mm long
LKSFLEX1500, Flexible probe 1500 mm long

LKS1000_LKSPROBE





For Steam trap control :
LKSPROBE, Mechanical US Sensor
LKS1000_Dome



Tightness and sealing control :

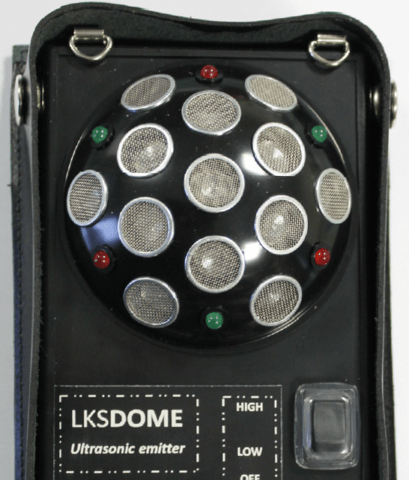

LKSDOME, Ultrasonic emitter with 13 emitters



LKS1000_cover





Carrying bag :
LKSCOVER, Holster

Sensors

TypeInternal ultrasound sensor 40 kHz (±1 kHz) integrated into reception cone
Bandwidth±2.5 kHz
Measurement range34 kHz to 46 kHz
Sensitivity-65 dB (0 dB = 1 Volt/μbar)
Detects a leak of 0.1 mm diameter over 3 bar at about 20 m
GainAdjustable from 50 dB to 110 dB for use in any kind of surroundings
Dynamics>100 dB (gain and sound to be adjusted separately)
TypeEmbedded camera into reception cone
AnalysisRMS and MAX RMS values displayed in real-time
Real-time automatic targeting
Energy savingUser mode with camera off

Inputs / Outputs

Types1 audio jack output (heterodyne signal over 0-2.5 kHz)
1 jack input for deported sensor

General specifications

Size230 x 100 x 70 mm
Weight580 g for LKS 1000
3.9 kg with case and accessories
DisplayLCD TFT 3.5“ display with video visualization of surroundings and leak localization
BatteryType: Rechargeable Lithium-Ion battery
Lifetime: 5-6 hours
Communication portsUSB
Storage capacity1000 pictures (JPEG) with date and time

Environmental specifications

Operating reference range-10 to 50°C
IP protectionIP54 according to EN60529

Safety specifications

EMC conformityCEM 2004/108/CE: EN61000-6-4 & EN61000-6-2

Instrument:

LKS 1000               Caméra de détection ultrasonore Leakshooter

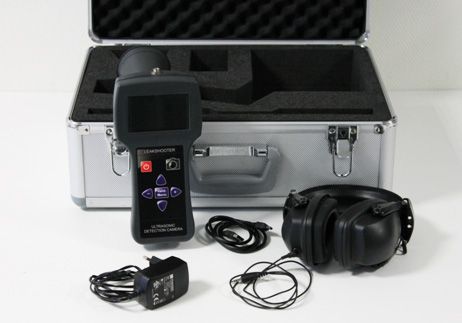

Delivered in standard with:

  • LKS case, Aluminium transport case
  • LKS ear, pro stereo headphones, noise isolating, with jack connector (SNR 31)
  • LKS power, universal charger for internal battery
  • LKS USB, USB cable for PC
  • LKS PC viewer, PC software on CD for Windows XP/Vista/7
  • User manual

Accessories:

LKS Contact           Contact probe

LKS CF400            Deported flexible sniffer (for places difficult to reach)

LKS Cover             Transport case

Packing information:

Size                       230 x 100 x 70 mm

Weight                   590 g for LKS 1000

3.9 kg with transport case and accessories

ProductDescriptionReleaseType
LKS 1000

Instruction manual

1,2pdf
