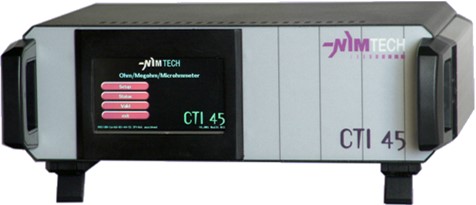

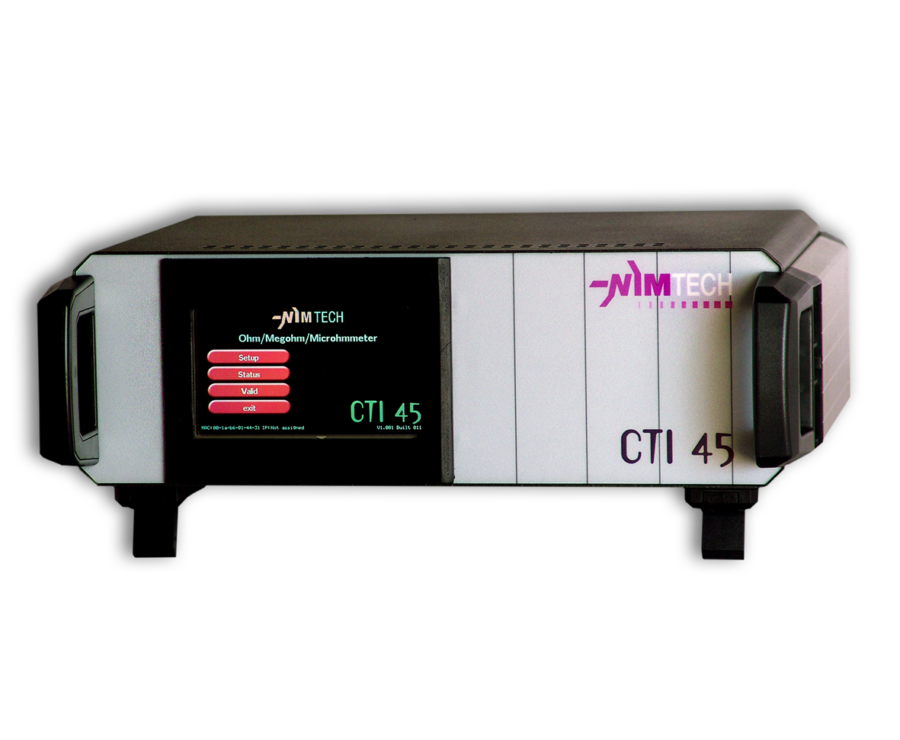

The CTI45 is an Ohmmeter, megohmmeter, microhmmeter designed for pyrotechnics safety.

It was developed for measurements in industrial environments, controls on production lines and in laboratory. It is designed for measurements on pyrotechnic elements considering user safety.

Its main strengths lie in its great versatility and high speed measurement.

Measurement conditions and safety

  • Measuring current much lower than the non-fire current
  • Connection to the test line only during the measurement period
  • Not exceeding a maximum current of safety during a failure of the equipment (electronic failure, internal short circuit, …)
  • Discharge of residual electrostatic charge
  • Permanent self-monitoring equipment’s internal functions
  • External Safety loop enable power measurement circuitry

Functions

  • Ohmmeter / microhmmeter: CTI45 has 4 main measurement channels four wire, with the ability to perform cross channel measures to adapt to more complex configuration
  • Megohmmeter: It allows isolation measures, taken between 2 of the 4 main Ohmmeter channel with configurable voltage (or fixed at order).
  • PT100 function:  temperature measurement
  • Macro: CTI45 allows  groups measurement without user intervention, in the form of macro commands

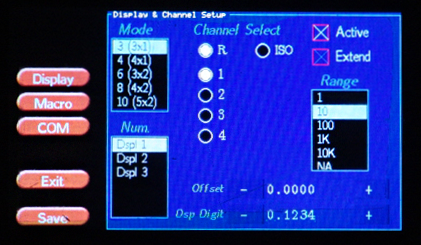

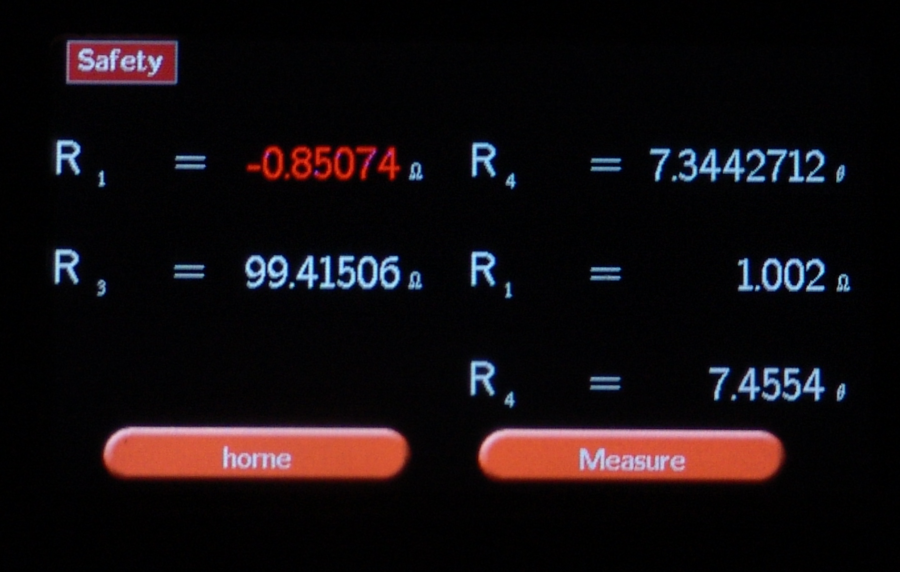

  • Display: Setting the LCD screen to fit your needs
  • Communication: Access mode Telnet, TCP or RS232 providing convenient automated control

Main Features

  • 4/8 channels
  • Ohmmeter ranges: 1Ω/10Ω/100Ω/1KΩ/10KΩ
  • Megohmmeter range: 1MΩ/10MΩ/1MΩ/1GΩ
  • Megohmmeter test voltage: 45 to 500V, customizable or fixed value
  • Bench top or rack 19” 2U P260

Functions:

Ohmmeter:
Ranges 10 Ω 100 Ω 1 kΩ 10 kΩ
Resolution 100 µΩ 1 mΩ 10 mΩ 0.1 Ω
measuring current 10 mA 1.5 mA 250 µA 50 µA

Megohmeter / insulation tester

Ranges 10 MΩ 100 MΩ 1GΩ
Resolution 1 kΩ 10 kΩ 100 kΩ
Measuring voltage Max. 50 V Max. 500 V Max. 500 V

Low resistance measurement : micro ohmeter:

Range 1 Ω
Resolution 1 µΩ
Measuring current 10 µΩ
Accuracy 0.05% + 100µΩ
Measuring time From <100 ms up to ~1s according to integration time



Other specifications

Power supply

 Main specifications:

-       Voltage: 85V~ to 264V~  / 45 to 63Hz

-       Power: 10W

-       Fuses : 2 x 400mA T







mechanical and environmental specifications

  Benchtop version

Weight: 1,7 Kilogrammes without accessories.

Dimensions :L330 x 280 x H113 mm.

Max / Min Temperatures :

-          from 18°C  to 22°C .

-         storage from 5 °C  to 45°C .

Maximal surface temperature of the instrument  : 35 °C at  23°C ambiant

Maximal surface temperature of the instrument in case of default : 50 °C



Rack mounted version

IP 44 version with heavy duty connectors
