picto fleche Standard thermocouple type R or S, for Primary laboratory, 0°C to 1600°C

The range of 1600 thermocouple standards are the result of many years development. The type R and S standards will cover the range from 0°C to 1600°C.

  • Type R and type S
  • Gas tight assembly
  • Premium grade wire
Ask a question
Get a call

The range of 1600 thermocouple standards are the result of many years development. The type R and S standards will cover the range from 0°C to 1600°C.

The measuring assembly comprises a 7 mm x 300 mm or 600 mm gas tight 99.7% recrystallized alumina sheath inside which is a 2.5 mm diameter twin bore tube holding the thermocouple.

The inner 2.5 mm assembly is removable since some calibration laboratories will only accept fine bore tubed thermocouples and some applications require fine bore tubing.

The covered noble metal thermocouple wire connects the measuring sheath to the reference sheath which is a 4.5 mm x 250 mm stainless steel sheath suitable for referencing in a 0°C reference system. Two thermo electrically free multistrand copper wires (teflon coated) connect the thermocouple to the voltage measuring device.

The thermocouple material is continuous from the hot or measuring junction to the cold, or referencing junction.

General specifications

Temperature range 0 to 1600°C
Response time 5 minutes
Hot junction dimensions Standard thermocouple type R or S
Cold junction 250 mm x 4.5 mm
Copper extension wires 2000 mm
Immersion 100 mm min.
Case dimensions (H x W x D) 65 x 710 x 165 mm
Gross weight 900 g
Feature Removeable inner assembly

Models

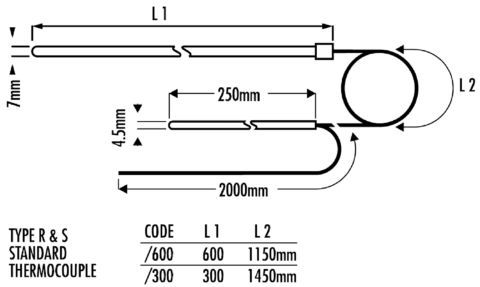

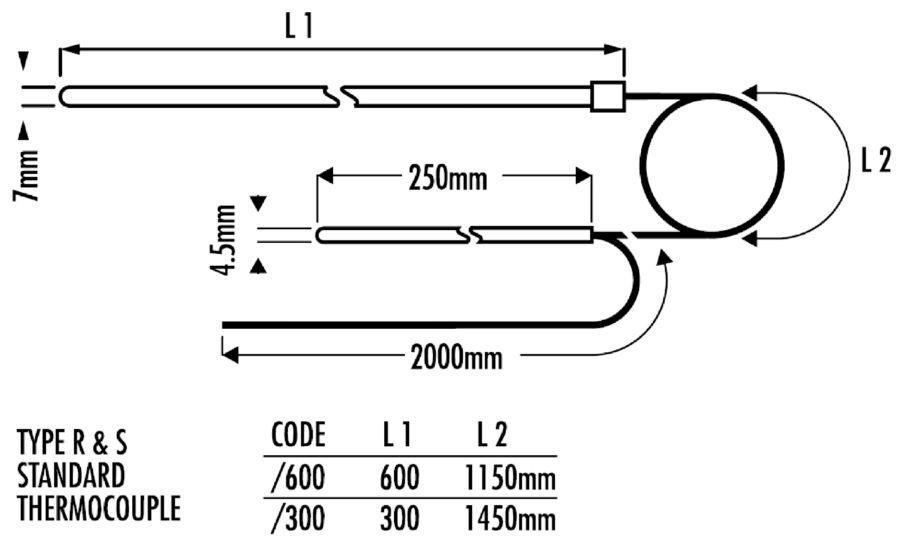

Reference Type Temperature range Cold junction dimensions Hot junction dimensions (L1) Connecting cable (L2) Material
1600 R/300 R 0°C to 1600°C 250 mm long x 4.5 mm diameter 300 mm long x 7 mm diameter 1450 mm Platinum vs Platinum 13% Rhodium
1600 S/300 S 0°C to 1600°C 250 mm long x 4.5 mm diameter 300 mm long x 7 mm diameter 1450 mm Platinum vs Platinum 10% Rhodium
1600 R/600 R 0°C to 1600°C 250 mm long x 4.5 mm diameter 600 mm long x 7 mm diameter 1150 mm Platinum vs Platinum 13% Rhodium
1600 S/600 S 0°C to 1600°C 250 mm long x 4.5 mm diameter 600 mm long x 7 mm diameter 1150 mm Platinum vs Platinum 10% Rhodium

1600                      Thermocouple Standards, Primary laboratory, 0°C to 1600°C

Delivered in standard with:

  • UKAS 4-point certification up to 1100°C

Models with cold junction

1600/R/300/CJ       Type R – Length: 300 mm

1600/R/600/CJ       Type R – Length: 600 mm

1600/S/300/CJ        Type S- Length: 300 mm

1600/S/600/CJ        Type S - Length: 600 mm

Models without cold junction

1600/R/300/NCJ     Type R - Length: 300 mm

1600/R/600/NCJ     Type R - Length: 600 mm

1600/S/300/NCJ     Type S- Length: 300 mm

1600/S/600/NCJ     Type S - Length: 600 mm

Certification

UKAS                    UKAS certification up to 1300°C

NPL                       NPL certification up to 1600°C
